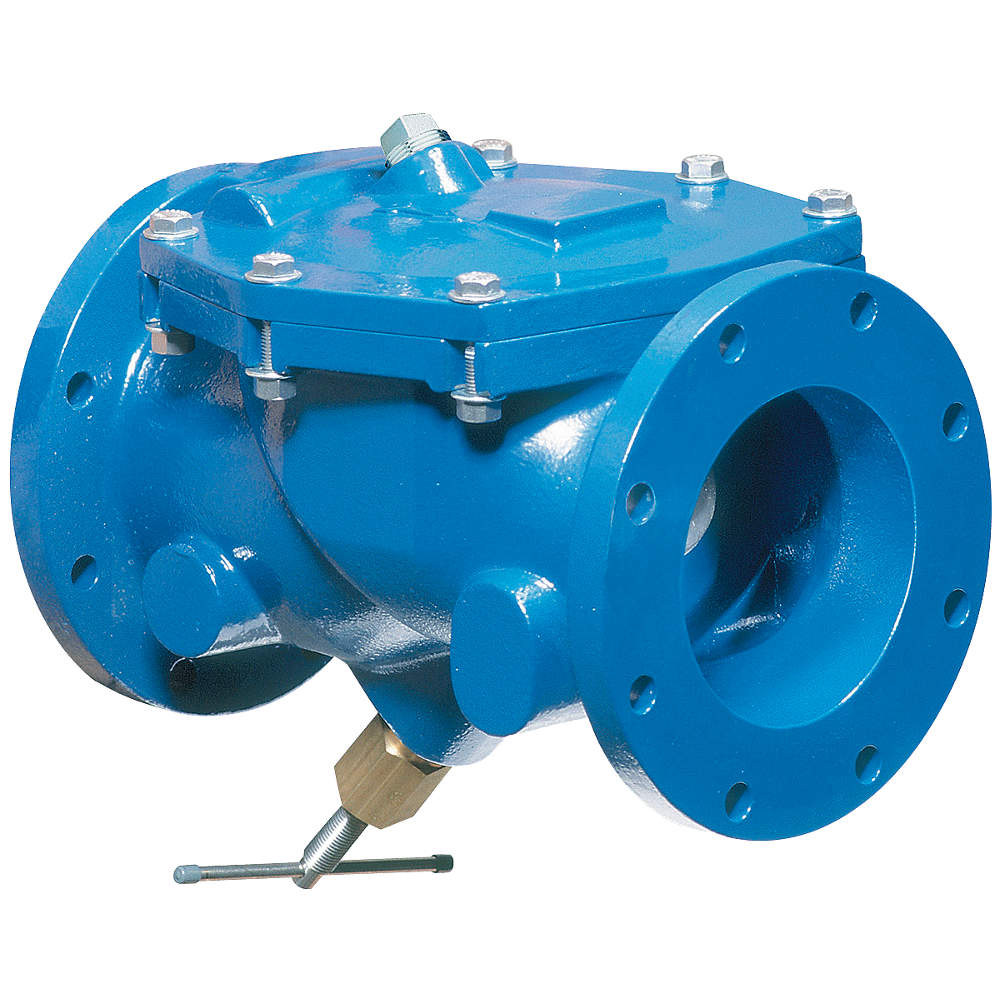

VAL-MATIC 508ABFK Swing Flex Back Flow Actuator Check Valve
Get it by Tuesday, Aug 18
13.00% off
€5,073.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swing Flex Back Flow ActuatorCheck Valve |
| 3-a Certified | Not Rated |
| Ansi Flange Class | Class 125 |
| Application-valves | General Purpose |
| Body Material | Ductile Iron |
| Check Mechanism | Swing |
| Connection Size-side 1 | 8" |
| Connection Size-side 2 | 8" |
| Connection Type | Flange x Flange |
| Connection Type-side 1 | Flange |
| Connection Type-side 2 | Flange |
| Cracking Pressure | 0.25 psi |
| Disc Material | Steel |
| Features | Backflow Preventer |
| Flow Design | Single |
| Flow Rate | 1900 GPM |
| For Media | Drinking Water |
| Full Flow-valves | No |
| Length | 19 1/2" |
| Max. Operating Temp. | 200°F |
| Max. Pressure (cwp) | 250 psi |
| Max. Pressure-steam | Not Rated |
| Max. Steam Pressure-valves | Not Rated |
| Max. Temp. | -70°F to +215°F |
| Max. Water Pressure | 250 psi |
| Media Temp. | 33°F to 200°F |
| Min. Operating Temp. | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation-check Valves | Horizontal, Vertical |
| Mounting Position | Horizontal |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 19.5" |
| Pipe Or Tube Size | 8" |
| Seal Material | Buna N |
| Seal Material-check Valves | Metal |
| Seat Material | Buna N |
| Silent Check | Standard |
| Size | 8 |
| Temp. | -70°F to +215°F |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | Series 500A |
| Width | 13 1/2" |
Shipping Info:
| Ship weight (kg) | 131.85 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 107.95 |
| Ship width (cm) | 76.2 |
| HS code | 8481302010 |
| Country of Origin | US |
Product Variants
| Model | Size | Connection Size-side 1 | Connection Size-side 2 | Flow Rate | Pipe Or Tube Size | Seat Material | For Media | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 502ABFK | 2" | 2" | 2" | 95 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €1,699.11 | |
| 525ABFK | - | 2 1/2" | 2 1/2" | 155 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €2,143.26 | |
| 503ABFK | 3" | 3" | 3" | 225 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €1,858.28 | |
| 504ABFK | - | 4" | 4" | 440 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €2,009.47 | |
| 506CBFK | 6 | 6" | 6" | 1040 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €3,611.47 | |
| 510ABFK | 10 | 10" | 10" | 3050 GPM | - | Buna N | Drinking Water | 33°F to 200°F | €8,322.25 | |
| 512ABFK | 12" | 12" | 12" | 4600 GPM | 12" | Buna N | Drinking Water | 33°F to 200°F | €10,362.76 |
