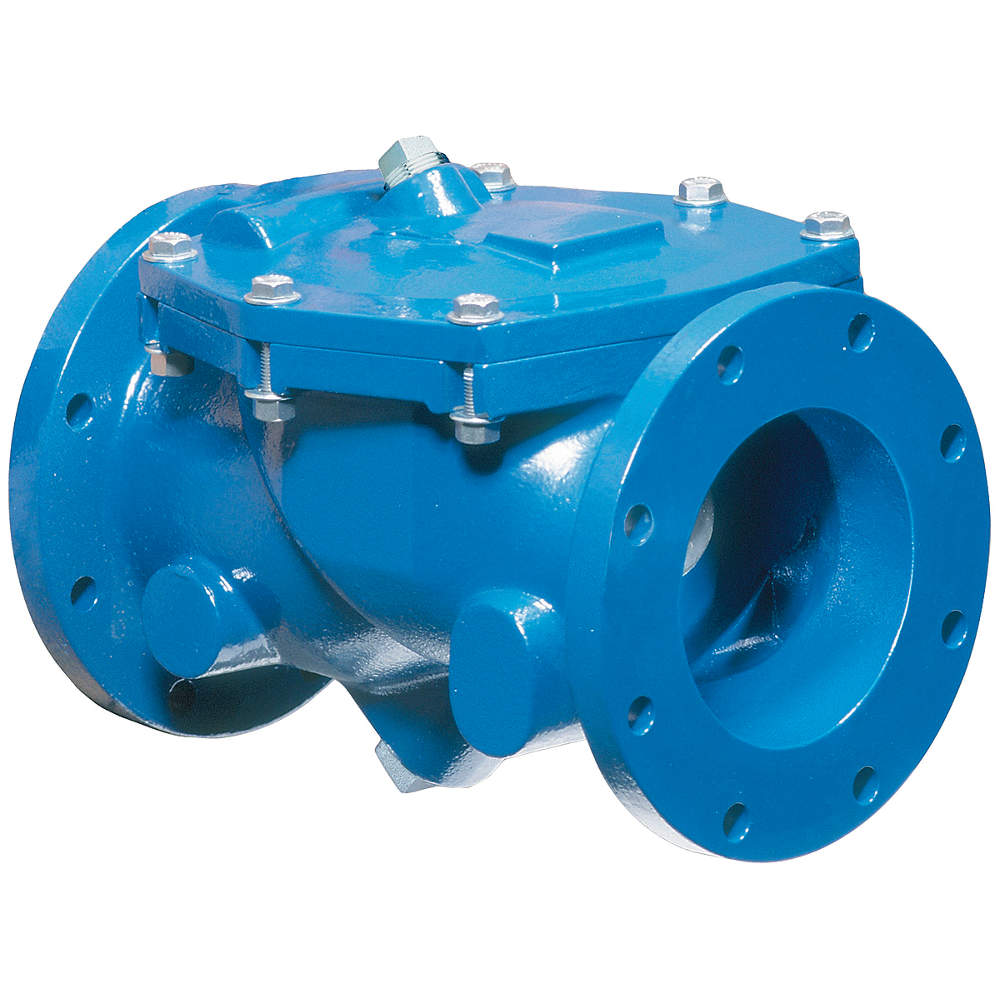

VAL-MATIC 503A Swing Flex Check Valve 3 Inch Flanged

Val-Matic 503A Swing-Flex check valve regulates the flow of fluids, preventing backflow and ensuring unidirectional flow. By allowing fluid to flow in one direction while preventing reverse flow, they protect pumps, pipelines and other equipment from damage caused by hydraulic shock and water hammer. It is ideal for water treatment plants, wastewater management systems, industrial processes and municipal water distribution networks.

Features:

• It features cast iron construction for durability and withstanding high temperatures, ensuring reliable performance in demanding industrial environments.
• This Swing-Flex check valve comes with a flange x flange connection for facilitating easy installation.
• It is equipped with a Buna-N seal, providing a tight seal to prevent leakage.
• This Swing-Flex check valve offers a cracking pressure of 0.25 psi.
• It conforms to ANSI B16.1 Class 125 standards, ensuring compatibility and interchangeability with other ANSI-compliant components in the system.

Frequently Asked Questions:

Q. What safety precautions should be followed while using the Swing-Flex check valve?

A.

• This valve should be mated only with flat-faced pipe flanges using lubricated flange bolts / studs.
• User should check for any leakages after installing the valve into the fluid line.
• As the Swing-Flex check valve is unidirectional, it should be ensured that the arrow on the valve points in the same direction of fluid flow.
• Provisions should be made and the pipe should be properly aligned for minimising stress on the valve.
• Flange bolts must be evenly tightened in a cross-rotation pattern to prevent any chances of flange damage.

Q. Does this Val-Matic 512A Swing-Flex check valve require frequent maintenance?

A. No, this Swing-Flex check valve provides at least 5 years of trouble-free operation. Apart from the basic unclogging & maintenance routine, this check valve does not require frequent maintenance.
