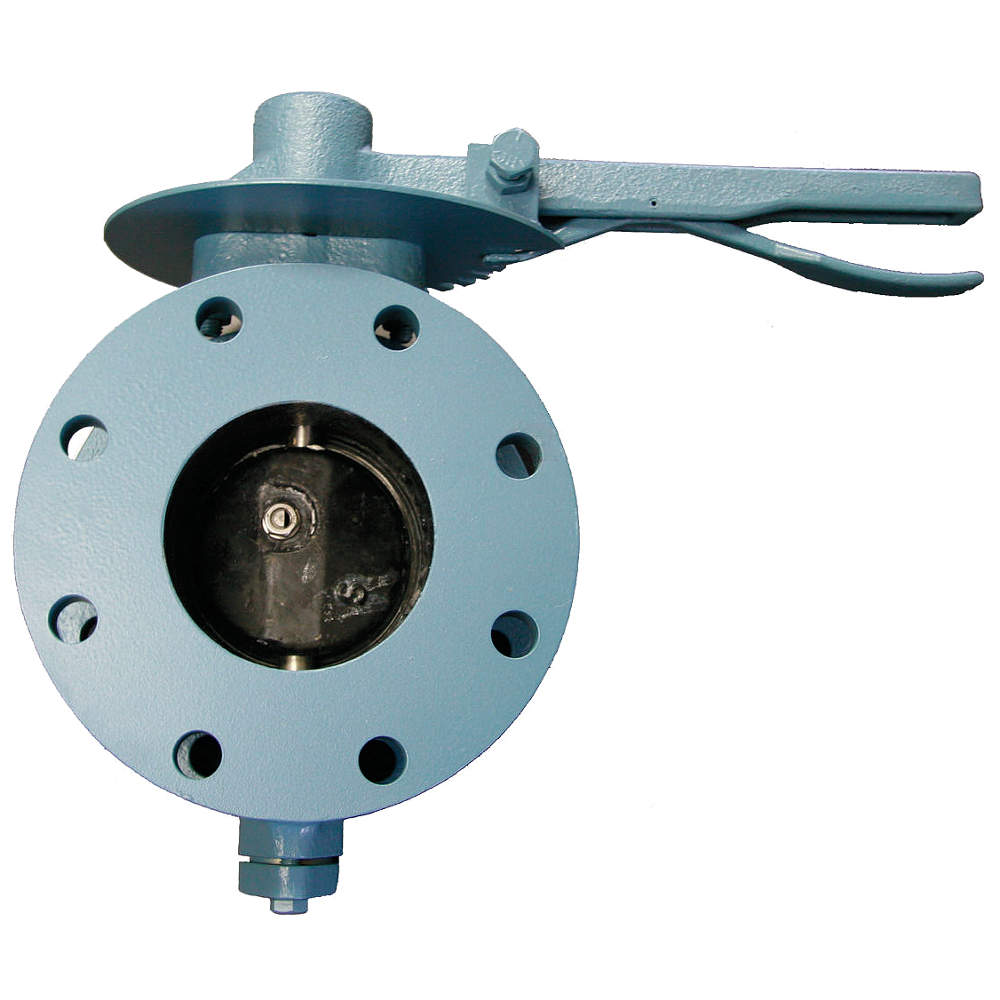

VAL-MATIC 2003/3BL Butterfly Valve Flanged 3 Inch Locking
Get it by Tuesday, Dec 23
10.00% off
€1,396.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3-a Compliance | Not Rated |
| Body Material | Cast Iron |
| Bolt Circle Dia. | 5/8" |
| Bolt Holes | 4 |
| Connection Type | Lug |
| Disc Material | Ductile Iron |
| Flow Coefficient (cv) | 380 |
| For Media | Water |
| Grade | Grade A126 |
| Handle Type | Lever |
| Liner Material | Buna N |
| Max. Pressure (cwp) | 150 psi |
| Media Temperature Range | -32°F to +210°F |
| No. Of Bolt Holes | 4 |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Bolt Holes | 4 |
| Pipe Size | 3" |
| Style | Flanged |
| Temp. Range | -70°F to +210°F |
| Vacuum Service Rating | Not Rated |
| Valve Series | 2000 Series |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 41.91 |
| Ship length (cm) | 42.42 |
| Ship width (cm) | 26.42 |
| HS code | 8481803030 |
| Country of Origin | US |
Product Variants
| Model | Handle Type | Pipe Size | Liner Material | Bolt Circle Dia. | Number Of Bolt Holes | Style | Body Material | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2003/1A02AK | - | - | Buna | 5/8" | 4 | Flanged | Cast Iron | -70°F to +210°F | €1,803.16 | |
| 2004-1A02AK | Bare Stem | 4" | Buna N | 5/8" | 8 | Flanged | Cast Iron | -70°F to +210°F | €1,803.16 | |
| 2006/1B02AK | Bare Stem | 6" | Buna N | 3/4" | 8 | Flanged | Cast Iron | -70°F to +210°F | €1,942.42 | |
| 2008/1B02AK | Bare Stem | - | Buna N | 3/4" | 8 | Flanged | Cast Iron | -70°F to +210°F | €2,401.14 | |
| 2010/1C02AK | Bare Stem | - | Buna N | 7/8" | 12 | Flanged | Cast Iron | -70°F to +210°F | €3,451.87 | |
| 2012/1C02AK | Bare Stem | 12" | Buna N | 7/8" | 12 | Flanged | Cast Iron | -70°F to +210°F | €4,104.36 | |

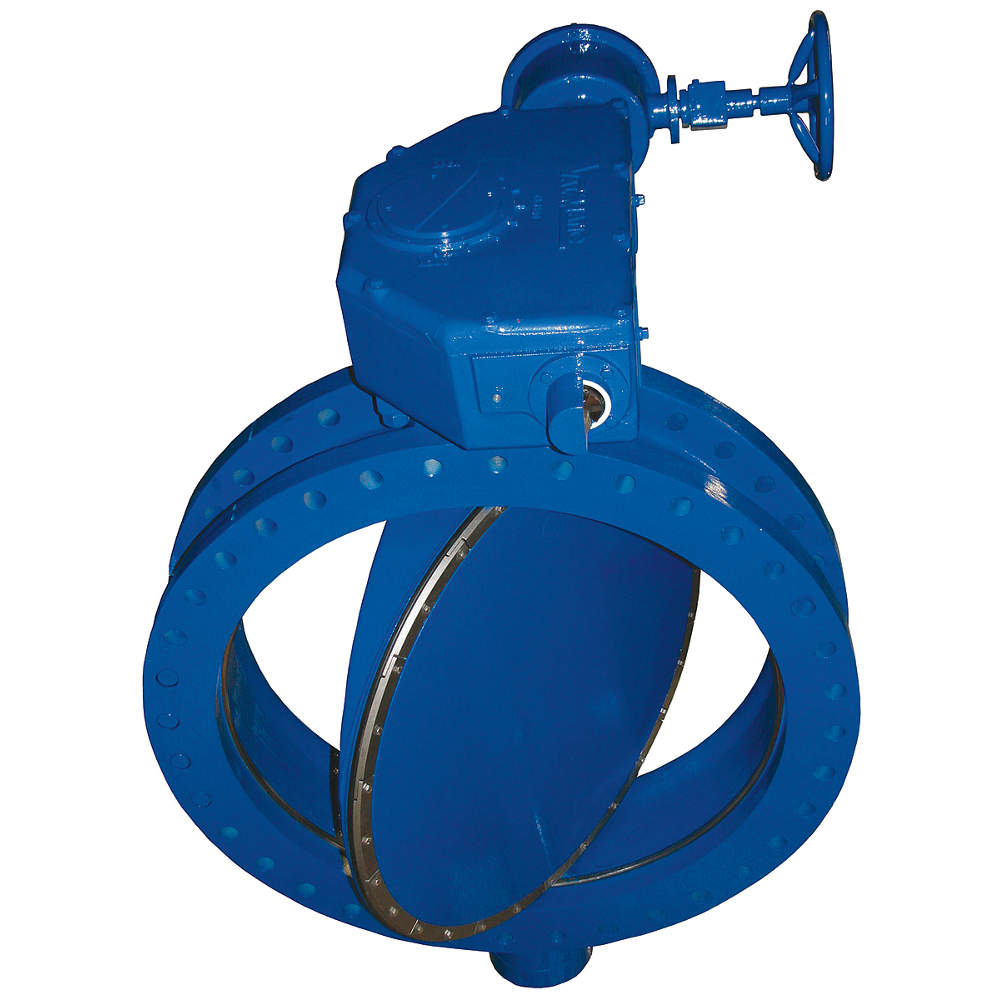

| 2003-1A08AK | - | 3" | Buna | 5/8" | 4 | Flanged | Cast Iron | -70°F to +210°F | €1,803.16 |
