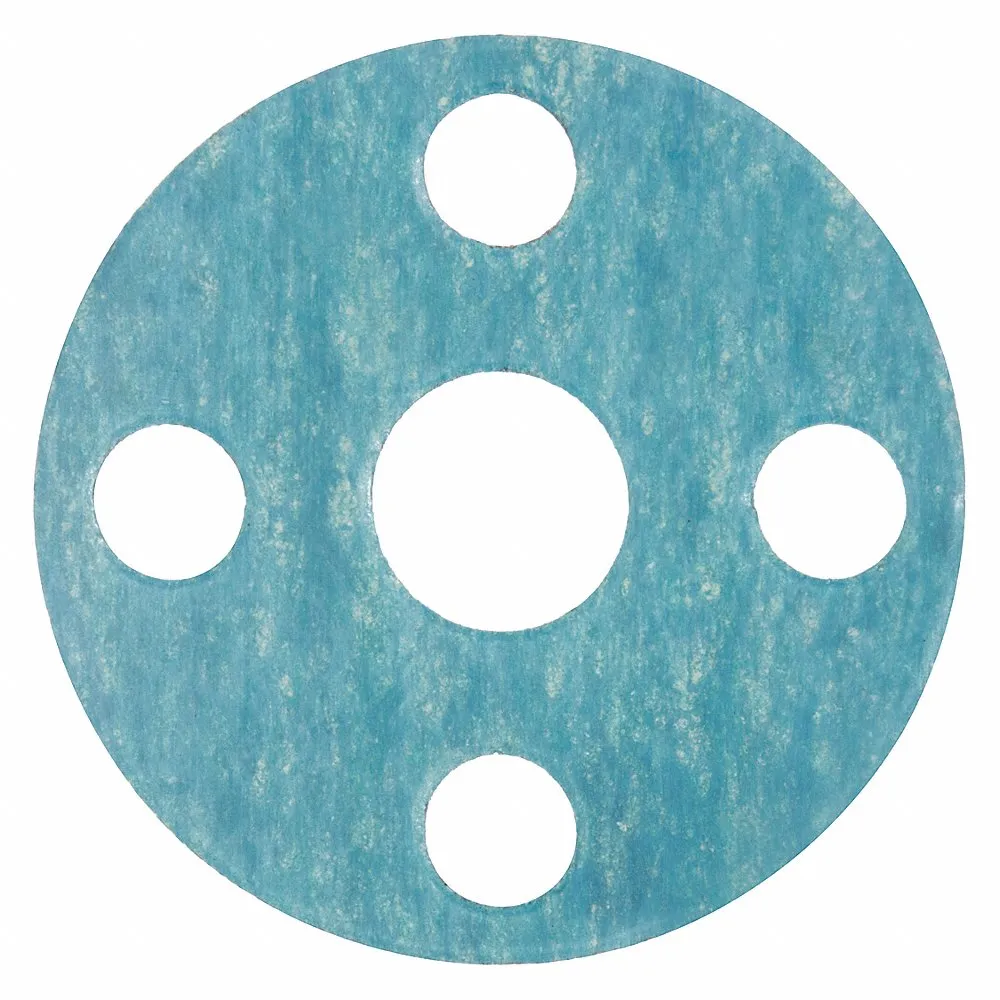

USA SEALING BULK-FG-5 Flange Gasket, 1 1/2 Inch Pipe Size, 5 Inch Outside Dia, 1 7/8 Inch Inside Dia, Blue
Item: CU7GYXModel: BULK-FG-5Cross Ref: 742F80
7 In Stock
Ships within 2 days via
10.00% off
€4.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Gasket |
| Backing Type | Plain |
| Binder Material | Buna N |
| Bolt Circle Diameter | 3 7/8" |
| Bolt Hole Diameter | 5/8" |
| Bolt Holes | 4 |
| Color | Green |
| Fda Approved | No |
| Flange Class | Class 150 |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Oil |
| Gasket Material | Aramid |
| Gasket Type | Full Face Gasket |
| Hardness | Not Rated |
| Includes Mounting Hardware | No |
| Inside Dia. | 1 7/8" |
| Inside Diameter | 1 15/16" |
| Material | Aramid Fiber |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 400°F |
| Metal Detectable | No |
| Minimum Operating Temperature | -100°F |
| Number Of Bolt Holes | 4 |
| Outside Diameter | 5" |
| Pipe Size | 1 1/2" |
| Reinforced | Yes |
| Resistance Properties | Chemical Resistant, Fuel Resistant, Oil Resistant, Water Resistant |
| Temp. Range | -100°C to +400°C |
| Thickness | 1/16" |
| Type | Full Face |
| X-ray Detectable | No |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Inside Dia. | Outside Dia. | Max. Operating Temp. | Temp. Range | Gasket Material | Flange Class | Reinforced | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZUSA-RES-53 | White | - | - | - | - | - | - | - | €71.77 | |
 |
ZUSA-RES-33 | White | - | - | - | - | - | - | - | €103.74 | |
 |
ZUSA-RES-157 | White | - | - | - | - | - | - | - | €103.32 | |
|
ZUSA-RES-15 | White | - | - | - | - | - | - | - | €104.75 | |
|
ZUSA-RES-65 | White | - | - | - | - | - | - | - | €407.49 | |
 |
ZUSA-RES-102 | White | - | - | - | - | - | - | - | €70.70 | |
|
ZUSA-RES-72 | White | - | - | - | - | - | - | - | €83.22 |
