UNITED BRASS WORKS 307145 Gate Valve 1 Inch Flange Carbon Steel
Get it by Tuesday, Dec 23
10.00% off
€4,224.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gate Valve |
| Ansi Flange Class | Class 300 |
| Body Material | Carbon Steel |
| Bonnet Material | Carbon Steel |
| Bonnet Style | Bolted |
| Connection Gender - Side 1 | Not Applicable |
| Connection Gender Side 2 | Not Applicable |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | Class 300 Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Water |
| Handle Height | 10" |
| Handle Length | Not Applicable |
| Handle Material | Ductile Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 9.703" |
| Max. Fluid Temp. | 500°F |
| Max. Pressure (cwp) | 750 psi |
| Max. Pressure (steam) | 650 psi |
| Max. Water Pressure | 750 psi |
| Media Temperature Range | 100°F to 500°F |
| Nominal Valve Size | 1" |
| Number Of Flange Bolt Holes | 4 |
| Operating Temperature - Maximum | 500°F |
| Operating Temperature - Minimum | 100°F |
| Overall Length | 9.7" |
| Pipe Size | 1" |
| Seal Material | Graphite |
| Seat Material | Stainless Steel |
| Stem Grade | Grade 410 |
| Stem Material | 410 Stainless Steel |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 10" |
| Valve Class | Class 300 |
| Wedge Material | Stainless Steel |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 10.46 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 26.42 |
| Ship width (cm) | 18.8 |
| HS code | 8481801070 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Top Of Handle To Inlet Center | Stem Material | Inlet To Outlet Length | Body Material | Seal Material | Seat Material | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 307155 | 1 1/4" | 10" | 410 Stainless Steel | 9.703" | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €6,145.96 | |
| 307165 | 1 1/2" | 12 1/2" | 410 Stainless Steel | 10.906" | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €5,204.28 | |
| 307175 | 2" | 18" | 410 Stainless Steel | - | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €3,124.73 | |

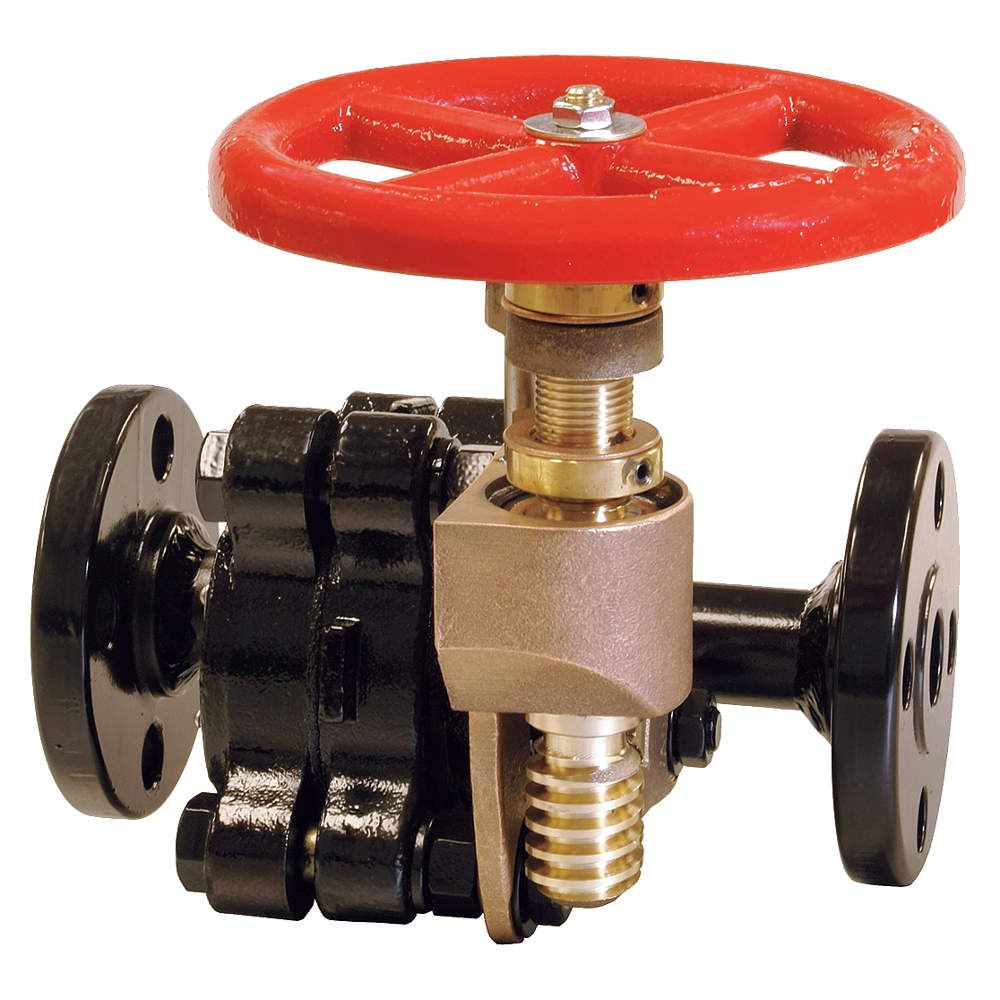

| 314008 | 1" | 8.094" | Stainless Steel | 9.703" | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €7,996.04 | |
| 314012 | 1 1/4" | 8.094" | Stainless Steel | 9.703" | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €8,517.72 | |
| 314016 | 1 1/2" | 8.593" | Stainless Steel | 10.906" | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €7,985.75 | |
| 314020 | 2" | 9.203" | Stainless Steel | - | Carbon Steel | Graphite | Stainless Steel | Class 300 Flange | €7,645.09 |
