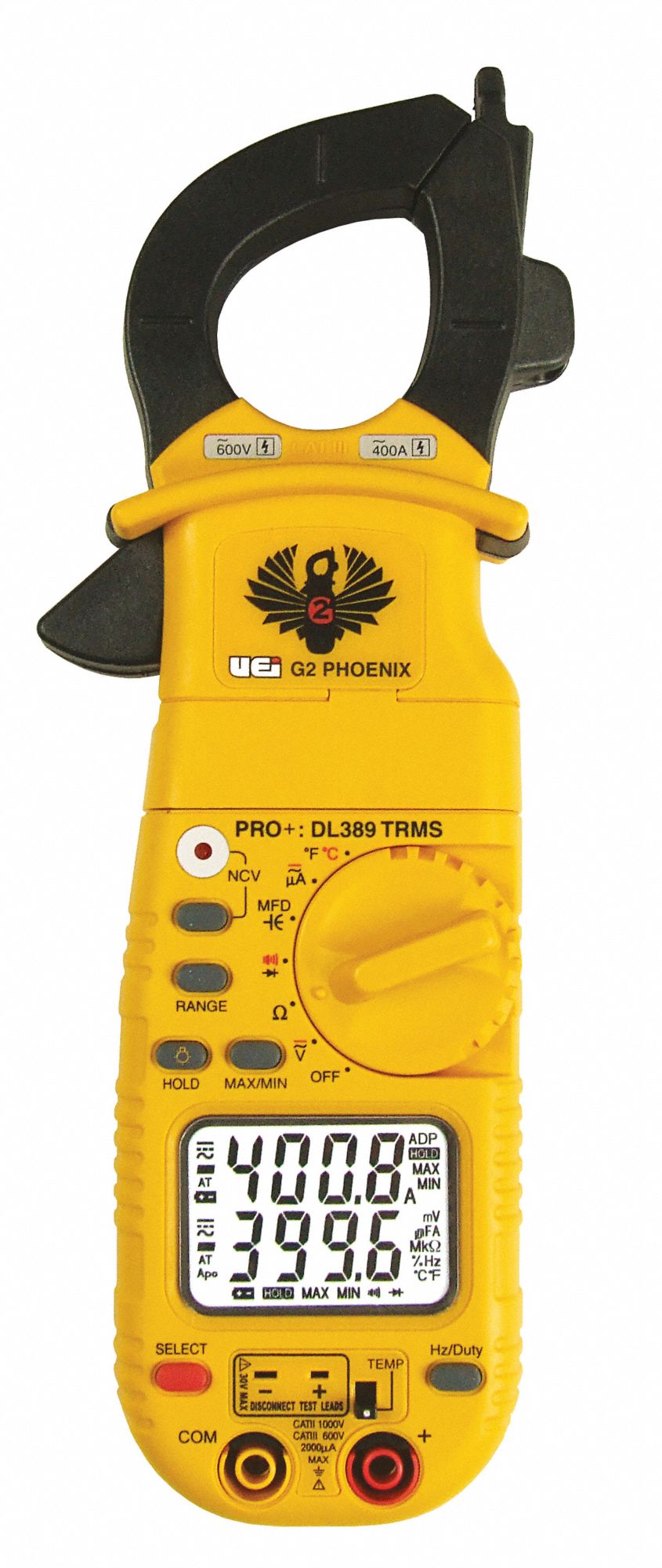

UEI TEST INSTRUMENTS DL389B Clamp On Digital Clamp Meter, -22 To 752 Deg. F Temp. Range, 1.2 Inch Jaw Capacity
€179.24 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Clamp Meter |
| Ac Current Accuracy | +/-1.2% + 3 Digits |
| Ac Response | TRMS |
| Ac Response Calculation | Trms |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Bar Graph Included | No |
| Battery Size | AAA |
| Battery Type | AAA |
| Calibration Certificate | No |
| Calibration Frequency | 50-60 Hz |
| Capacitance | 4000 micro-F |
| Capacitance | 4000 µF |
| Clamp Meter Jaw Style | Clamp On |
| Counts | 4000 |
| Data Hold | Yes |
| Diode Test | Yes |
| Display | Backlit |
| Display Type | Backlit |
| Frequency Counter | 199 kHz |
| Includes | (2) Batteries, K-Type Temperature Probe, Pouch, Test Leads |
| Inrush | No |
| Jaw Opening | 1 1/5" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ac Amps | 400A |
| Max. Ac Voltage | 750V |
| Max. Ac Volts | 750V |
| Max. Amps | 400A |
| Max. Conductor Size | 750 kcmil |
| Max. Dc Amps | 400A |
| Max. Dc Voltage | 400V |
| Max. Dc Volts | 400V |
| Max. Ohms | 40 megaohm |
| Max. Resistance | 40 M ohms |
| Maximum Capacitance Measurement | 4000 µF |
| Memory | Max, Min |
| Midscale Resistance | 20 ohms |
| Non-contact Voltage Detector | Yes |
| Operating Temp. | +32°F to +104°F |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, DC Current, Temperature (K) |
| Peak Hold | No |
| Safety Rating | Cat Ii 1000V, Cat Iii 600V |
| Special Features | Dual Display |
| Standards | Etl |
| Temp. Range | -22°F to +752°F |
| Thermometer Type | K Thermocouple |
| Thermometer Type | Type K Thermocouple |
| Warranty | 2 yrs. |
Shipping Info:
| Country of Origin | South Korea |
