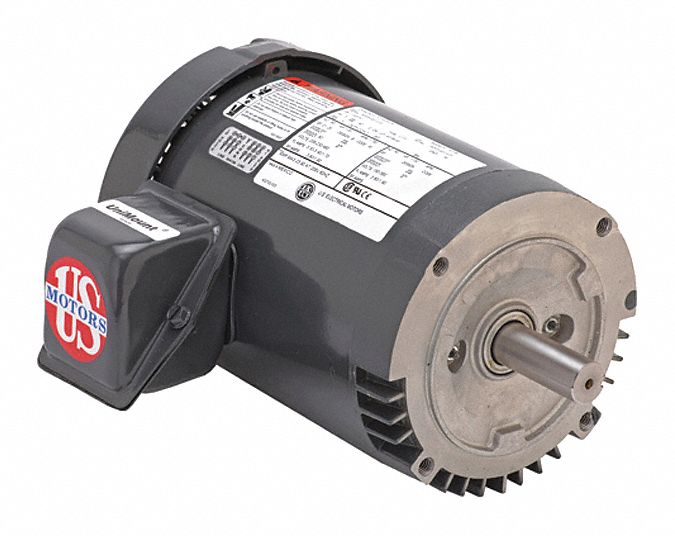

U.S. MOTORS U1P2DCR 1 HP General Purpose Motor, 3-Phase, 1755 Nameplate RPM
Get it by Thursday, Jul 16
€568.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Additional Details | Steel Edge3/4Motors Offer The Widest Range Of Electrical And Mechanical Features Of Any Motor On The Market Today. Steel Edge3/4Can Be Used On Pumps, Fans, Compressors, General Industrial Belt Drive, Direct Drive And Direct-Connected Equipment Where 12-Lead, Wye-Start/Delta-Run Is Required. Steel Edge3/4Is Also Available As An Inverter Duty Motor, Meeting Both Parts 30 And 31 Of Nema Mg-1 Standards. |
| Ambient Temp. | 40°C |
| Bearing Type | 6203-2Z-J/C3 , Ball |
| Cc Number | CC030A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 143TC |
| Frame Material | Steel |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 3.1/1.5A |
| Full Load Efficiency | 85.5% |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 11" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Hp | 1 hp |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face , Horizontal, Footless |
| Nameplate Speed | 1755 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number | CC030A |
| Overall Length | 13 1/8" |
| Phase | 3 |
| Product Type | AC Motors |
| Service Factor | 1.15 , 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed | 1701-1800 RPM , 1800/1440-1755 RPM |
| Supply Voltage | 190/380/208-230/460V |
| Thermal Protection | None |
| Torque | 3 lbs.-ft. |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 18.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
