U.S. MOTORS T1CA2JH Motor, Totally Enclosed Fan-Cooled, Rigid Base Mount, 1 Hp, 1, 725 Nameplate Rpm, Auto
Get it by Tuesday, Aug 25
13.00% off
€620.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 14/6.9-7A |
| Hp | 1 hp |
| Ins. Class | Class B |
| Length Less Shaft | 10 7/16" |
| Max. Ambient Temp. | 104°F |
| Max. Current | 6.9-7/14A |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Overall Length | 12 3/8" |
| Part Winding Start Capable | No |
| Phase | 1 |
| Product Type | AC Motors |
| Removable Base | Permanently Lubricated Bearings |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Torque | 48.72 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Full Load Amps | Service Factor | Hp | Frequency | Mounting Type | Motor Enclosure Design | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D32C2J149 | 115/208-230V AC | 19.2/10-9.6A | 1.15 | 1 1/2 hp | 60 Hz | Cradle Base | Open Air Over | 145T | €741.50 | |
 |
D13CPA2P9 | 115/230V AC | 3.8/1.9A | 1.35 | 1/3 hp | 60 Hz | Cradle Base | Open Air Over | 56 | €448.88 | |
 |
D1CPM2PH | 115/230V AC | 8.8/4.4A | 1.15 | 1 hp | 60 Hz | Rigid Base | Open Air Over | 56H | €962.70 | |
 |

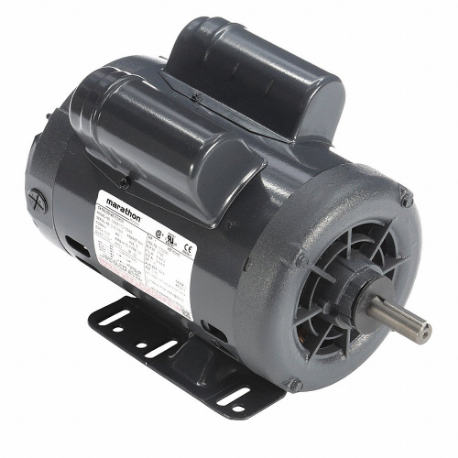

D1CP2PH | 115/230V AC | 8.8/4.4A | 1.15 | 1 hp | 60 Hz | Rigid Base | Open Dripproof | 56H | €808.73 | |
 |
D1CP1PHC | 115/230V AC | 9.3/4.3A | 1.25 | 1 hp | 60 Hz | Rigid Base | Open Dripproof | 56 | €622.03 | |
|
D1CP1PH | 115/230V AC | 9.3/4.3A | 1.25 | 1 hp | 60 Hz | - | - | 56H | €773.35 | |
 |
D12CP2P4 | 115/230V AC | 5/2.6A | 1.25 | 1/2 hp | 60 Hz | Rigid Base | Open Air Over | 48 | €686.57 |
