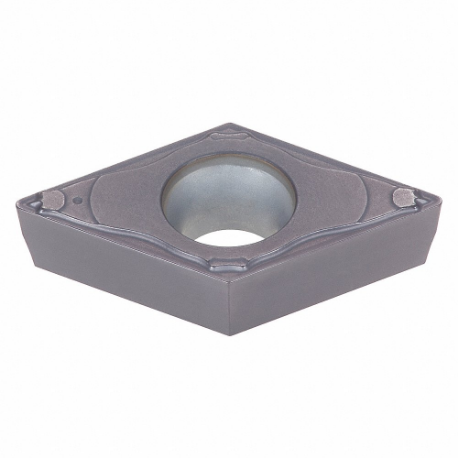

TUNGALOY DCMT11T304-PF AH110 Diamond Turning Insert, Neutral, 5/32 Inch Thick, 1/64 Inch Corner Radius
Item: CU7DEBModel: DCMT11T304-PF AH110Cross Ref: 38UF53
7 In Stock
Ships within 2 days via
10.00% off
€19.88 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Application | Finishing |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | PF |
| Chip-breaker Style | Yes |
| Clearance Angle | 7° |
| Corner Radius | 1/64" |
| Cutting Application | Finishing |
| Cutting Depth | 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.6 mm |
| Finish - Machining | TiAlN |
| Hardened (h) Compatibility | No |
| Included Angle | 55° |
| Inscribed Circle | 3/8" |
| Insert Application | Finishing |
| Insert Code | DCMT32.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Material | Carbide |
| Insert Style | DCMT |
| Iso Number | DCMT11T304-PF AH110 |
| Manufacturer Grade | Grade AH110 |
| Material | Carbide |
| Material - Machining | Carbide |
| Non Ferrous Compatibility | No |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, P, S |
| Rake | Positive |
| Shape | Rhombic |
| Stainless Compatibility | No |
| Steel Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
| Thickness | 5/32" |
| Workpiece Compatibility | Steel, Super Alloy |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Thickness | Corner Radius | Insert Style | Chip-breaker Code | Cutting Direction | Insert Code | Number Of Cutting Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6843406 | 1/4" | 3/32" | 1/64" | CCGT | AL | Neutral | CCGT21.51 | 2 | €24.66 | |
 |
6837456 | 0.172" | 0.078" | 0.008" | CCGT | JS | Neutral | CCGT1.5.5 | 2 | €37.12 | |
 |
6801368 | 3/8" | 5/32" | 1/32" | CCGW | Yes | Neutral | CCGW32.52 | 2 | €216.02 | |
 |
6888191 | 11/64" | 5/64" | 0.008" | CCGW | Yes | Neutral | CCGW1.5.5 | 1 | €92.01 | |
 |
6856761 | 1/4" | 0.094" | 0.016" | CCMT | PS | Neutral | CCMT21.51 | 2 | €15.85 | |
|
6856763 | 3/8" | 5/32" | 0.008" | CCMT | PS | Neutral | CCMT32.5.5 | 2 | €20.32 | |
 |
6805037 | 3/8" | 5/32" | 1/32" | CCMW | Yes | Neutral | CCMW32.52 | 2 | €160.39 |
