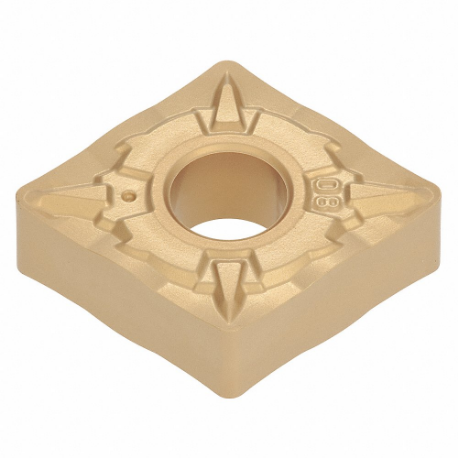

TUNGALOY 6805345 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius
Item: CU7DJFModel: 6805345Cross Ref: 38UD63
7 In Stock
Ships within 2 days via
10.00% off
€19.38 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMG 431 SF T6120 |
| Application | Finishing |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Style | Yes |
| Coating Process | CVD |
| Corner Radius | 1/64" |
| Cutting Direction | Neutral |
| Depth Of Cut | 0.0984" |
| Finish | Titanium Carbonitride, Tin |
| Finish - Machining | Ticn+Tin |
| Hardened (h) Compatibility | No |
| Inscribed Circle | 1/2" |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Style | CNMG |
| Manufacturer Grade | Grade T6120 |
| Material | Carbide |
| Material - Machining | Carbide |
| Non Ferrous Compatibility | No |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M10 - M20 |
| Rake | Negative |
| Secondary Material Application Iso Code | P |
| Shape | Rhombic |
| Stainless Compatibility | Yes |
| Standards | ISO 26623-1 |
| Steel Compatibility | No |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Thickness | Corner Radius | Insert Style | Chip-breaker Code | Cutting Direction | Insert Code | Number Of Cutting Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6843406 | 1/4" | 3/32" | 1/64" | CCGT | AL | Neutral | CCGT21.51 | 2 | €24.66 | |
 |
6837456 | 0.172" | 0.078" | 0.008" | CCGT | JS | Neutral | CCGT1.5.5 | 2 | €37.12 | |
 |
6801368 | 3/8" | 5/32" | 1/32" | CCGW | Yes | Neutral | CCGW32.52 | 2 | €216.02 | |
 |
6888191 | 11/64" | 5/64" | 0.008" | CCGW | Yes | Neutral | CCGW1.5.5 | 1 | €92.01 | |
 |
6856761 | 1/4" | 0.094" | 0.016" | CCMT | PS | Neutral | CCMT21.51 | 2 | €15.85 | |
|
6856763 | 3/8" | 5/32" | 0.008" | CCMT | PS | Neutral | CCMT32.5.5 | 2 | €20.32 | |
 |
6805037 | 3/8" | 5/32" | 1/32" | CCMW | Yes | Neutral | CCMW32.52 | 2 | €160.39 |
