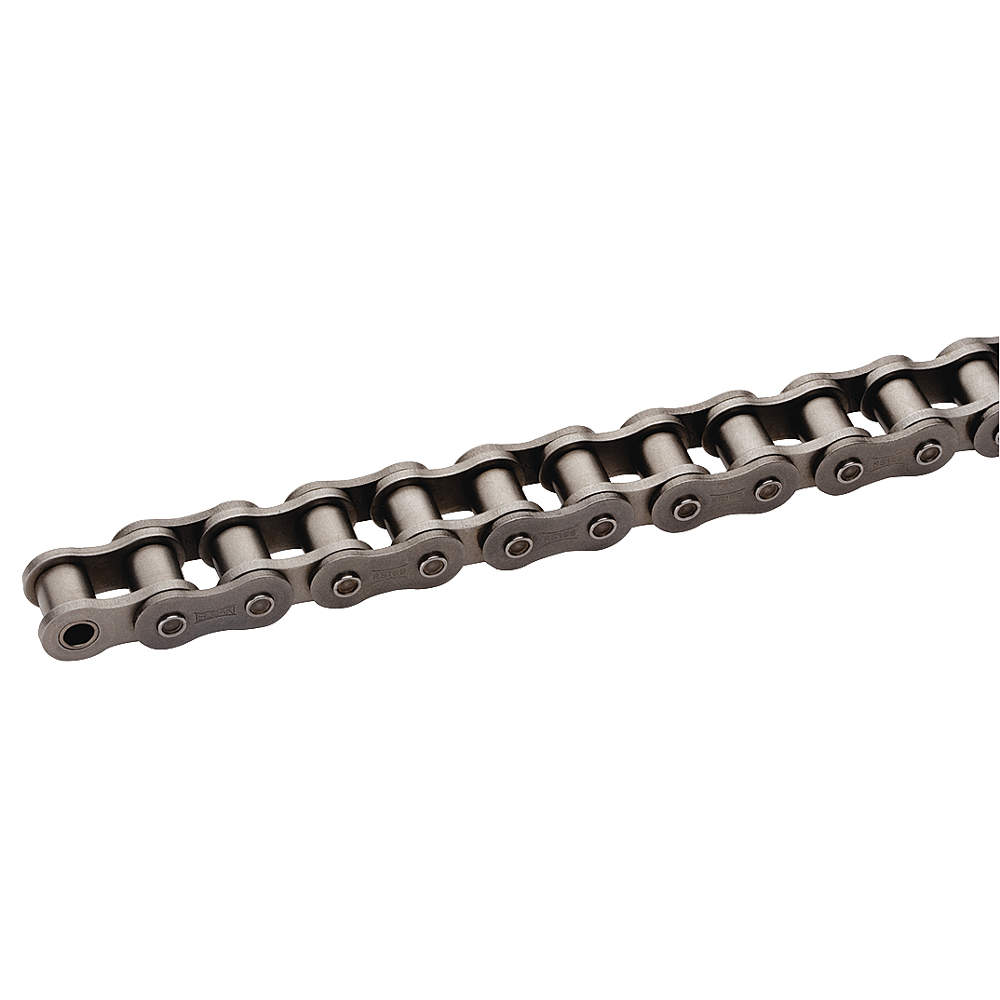

TSUBAKI RF06BSS Roller Chain British 06b Ansi 10 Feet
Item: AG2ZAEModel: RF06BSSCross Ref: 32PH74
7 In Stock
Ships within 2 days via
10.00% off
€1,998.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain |
| Chain Construction | Riveted Pin |
| Chain Overall Width | 0.551" |
| Chain Roller Dia. | 1/4" |
| Chain Type | British Standard |
| Connecting End To Center Line | 0.296" |
| Features | This Single-Strand Roller Chain Is Designed To Help Transfer Motion From One Set Of Sprockets To Another |
| Heavy Series | No |
| Includes | (1) Connecting Link |
| Industry Chain Pitch | 3/8" |
| Inside Pin Dia. | 0.129" |
| Inside Width | 0.225" |
| Length | 10 ft. |
| Lubrication | SAE 10 To SAE 50 |
| Material | Stainless Steel |
| Max. Allowable Load | 63 lbs. |
| Outside Pin Dia. | 0.129" |
| Overall Width | 0.551" |
| Pin Contruction | Riveted Pin |
| Pin Hole Diameter | 0.129" |
| Pin Length | 0.551" |
| Pin Link Plate Thickness | 0.05" |
| Pin Outside Diameter | 0.129" |
| Pin Type | Riveted |
| Pitch | 3/8" |
| Pitch Type | Double Pitch |
| Plate Height | 0.325" |
| Rivet End To Center Line | 0.255" |
| Roller Bushing Width | 0.225" |
| Roller Chain Item | Roller Chain |
| Roller Chain Type | British Standard |
| Roller Dia. | 1/4" |
| Roller Link Plate Height | 0.323" |
| Size | 06B |
| Temp. Range | -270°F to +750°F |
| Tensile Strength | 1430 lbs. |
| Type | British Standard |
| Width Between Roller Link Plates | 0.225" |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 1.4 |
| HS code | 7315110010 |
| Country of Origin | JP |
Product Details:
- Number of Strands (Single)
Product Variants
| Model | Material | Pitch | Type | Tensile Strength | Breaking Strength | Overall Width | Roller Dia. | Rivet End To Center Line | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80SSCB | Stainless Steel | 1" | - | 397 lbf. | 397 lbs. | 1.406" | 5/8" | 0.638" | €3,331.30 | |
| 35 TW 10 | Steel | 3/8" | Single Strand | 2530 lbf. | 2530 lbs. | 1/2" | 13/64" | 0.23" | €96.58 | |
| 40 TW 10 | Steel | 1/2" | Single Strand | 4290 lbs. | 4290 lbs. | 0.717" | 5/16" | 0.325" | €107.88 | |
| 41 TW 10 | Steel | 1/2" | Single Strand | 2640 lbf. | 2640 lbs. | 0.579" | 5/16" | 0.266" | €86.93 | |
| 50 TW 10 | Steel | 5/8" | Single Strand | 7050 lbf. | 7050 lbs. | 0.878" | 13/32" | 0.406" | €157.81 | |
| 60 TW 10 | Steel | 3/4" | Single Strand | 9920 lbf. | 9920 lbs. | 1.087" | 15/32" | 0.506" | €210.90 | |
| 35 TW 100 | Steel | 3/8" | Single Strand | 2530 lbf. | 2530 lbs. | 1/2" | 13/64" | 0.23" | €1,095.70 |
