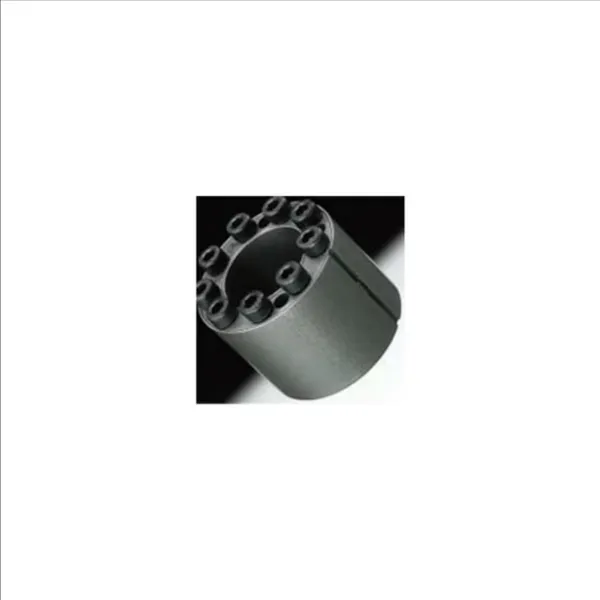

TSUBAKI PL2CAD Power Lock
Item: AZ9LXYModel: PL2CAD
7 In Stock
Ships within 2 days via
€291.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Lock(R) |
| D-hub Counter I.d. | 3.543" |
| L | 2.205" |
| P-contact Pressure-hub Bore | 15954 psi |
| P-shaft Contact Pressure | 25817 psi |
| Shaft Outside Dia. | 2.188" |
| Size | M8 x 50 |
| T1 - Shaft Dia. Tolerance | -0.0018" to 0" |
| T2-hub Counter Id Tolerance | 0" to +0.0021" |
| Transmissible Thrust | 46758 lbs. |
| Transmissible Torque | 4214 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Transmissible Torque | P-shaft Contact Pressure | Shaft Outside Dia. | P-contact Pressure-hub Bore | Transmissible Thrust | D-hub Counter I.d. | L | Price | |
|---|---|---|---|---|---|---|---|---|---|
| PL2BAD | 3337 lbs.-ft. | 21756 psi | 2 1/8" | 13779 psi | 38216 lbs. | 3.346" | 2.205" | €291.40 | |
| PL1KAD | 2657 lbs.-ft. | 27268 psi | 1.688" | 15664 psi | 38216 lbs. | 2.953" | 2.205" | €171.19 | |
| PL2DAD | 4335 lbs.-ft. | 25092 psi | 2 1/4" | 15954 psi | 46758 lbs. | 3.543" | 2.205" | €311.04 | |
| PL1JAD | 2559 lbs.-ft. | 28283 psi | 1 5/8" | 15664 psi | 38216 lbs. | 2.953" | 2.205" | €250.49 | |
| PL1BAD | 569 lbs.-ft. | 25962 psi | 1 1/8" | 13489 psi | 12139 lbs. | 2.165" | 1.378" | €186.85 | |
| PL3FAD | 11381 lbs.-ft. | 23206 psi | 3 3/8" | 15809 psi | 80928 lbs. | 4.921" | 2.756" | €543.28 | |
| PL2GAD | 4749 lbs.-ft. | 19725 psi | 2.438" | 12909 psi | 46758 lbs. | 3.74" | 2.205" | €332.33 |
