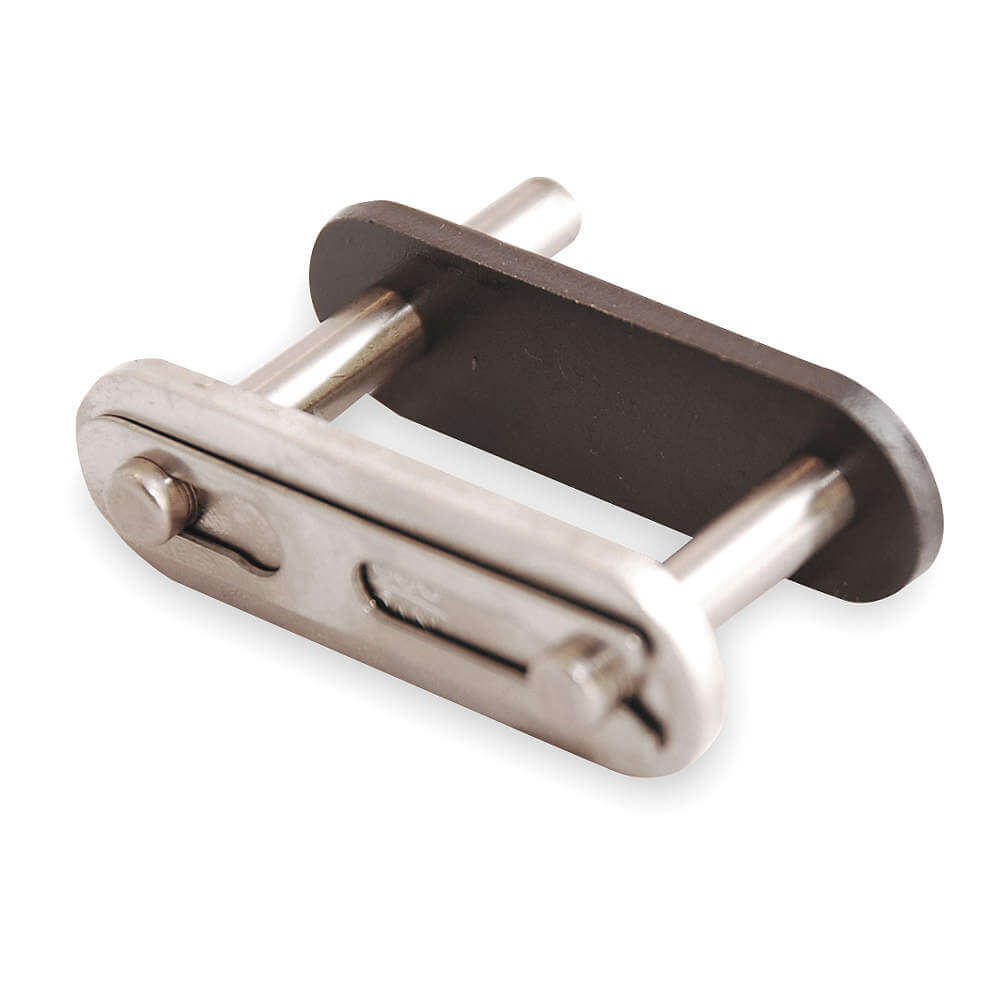

TSUBAKI C2080HLD1CL Connecting Link Lambda Double Pitch
Item: AB4JKMModel: C2080HLD1CLCross Ref: 1YGC9
7 In Stock
Ships within 2 days via
10.00% off
€70.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | C2080HL |
| Attachment Number | D-1 |
| Attachment Type | Pin |
| Centerline To Attachment End | 0.823" |
| Centerline To Hole Center | 18/25" |
| Chain Link Overall Width | 1.543" |
| Chain Number | C2080H |
| Chain Overall Width | 1.543" |
| Chain Roller Dia. | 5/8" |
| Connecting End To Center Line | 0.823" |
| Display Qty | 1 |
| Extended Pin Diameter | 0.312" |
| Finish | Black Oxide |
| For Chain Style (combined) | Black Oxide Steel |
| Industry Chain Pitch | 2" |
| Inside Pin Dia. | 0.312" |
| Link Type | Attachment Link |
| Lubrication | Self Lubricating |
| Material | Steel |
| Max. Allowable Load | 2400 lbs. |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 14°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Width | 1.543" |
| Pin Contruction | Cottered Pin |
| Pin Length | 1.543" |
| Pin Link Plate Thickness | 0.906" |
| Pin Type | Cottered |
| Pitch | 2" |
| Plate Height | 0.906" |
| Plate Thickness | 5/8" |
| Rivet End To Center Line | 18/25" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 5/8" |
| Roller Link Plate Height | 0.906" |
| Tensile Strength | 15400 lbs.-in. |
| Width Between Roller Link Plates | 5/8" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.92 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Pitch | Tensile Strength | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLSA1CL | Steel | C2060HL | Black Oxide | 0.469" | 1 1/2" | 9040 lbs.-in. | - | 0.234" | 1 | €43.65 | |
 |
C2060HLSA2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €43.65 | |
 |
C2060HLSK1CL | Steel | C2060HL | Black Oxide | 0.469" | - | - | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HLSK2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HNEPCL | Steel | C2060H | Coated | 0.469" | - | 9040 lbf. | +14°F to +302°F | 0.234" | 1 | €28.27 | |
 |
C2080HPCL | Steel | C2080H | - | - | 2" | 10800 lbf. | +15°F to +300°F | 0.448" | 1 | €58.50 | |
 |
C2080HLA1CL | Steel | C2080HL | Black Oxide | 5/8" | 2" | 15400 lbs.-in. | - | 0.312" | 1 | €76.00 |
