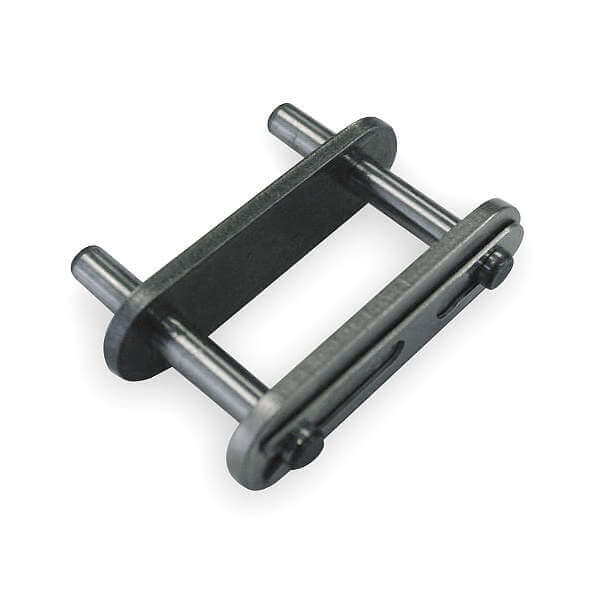

TSUBAKI C2080HD3CL Connecting Roller Link Double Pitch
Item: AB4JKCModel: C2080HD3CLCross Ref: 1YGB9
7 In Stock
Ships within 2 days via
10.00% off
€40.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | C2080H |
| Attachment Number | D-3 |
| Attachment Type | Pin |
| Centerline To Attachment End | 0.823" |
| Centerline To Hole Center | 18/25" |
| Chain Number | C2080H |
| Chain Overall Width | 1.543" |
| Connecting End To Center Line | 0.823" |
| Display Qty | 1 |
| Extended Pin Diameter | 0.312" |
| Finish | Plain |
| For Chain Style (combined) | Plain Steel |
| Inside Pin Dia. | 0.312" |
| Length | 2" |
| Link Type | Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 2400 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Width | 1.543" |
| Pin Contruction | Cottered Pin |
| Pin Length | 1.543" |
| Pin Link Plate Thickness | 0.906" |
| Pin Type | Cotter |
| Pitch | 2" |
| Plate Height | 0.906" |
| Plate Thickness | 0.625" |
| Rivet End To Center Line | 18/25" |
| Roller Diameter | 5/8" |
| Roller Link Plate Height | 0.906" |
| Temp. Range | +15°F to +300°F |
| Tensile Strength | 15400 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.92 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Roller Dia. | Finish | Tensile Strength | Pitch | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HSA1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | €23.72 | |
 |
C2060HSA2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | €23.72 | |
 |
C2060HSK1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | €30.92 | |
 |
C2060HSK2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | €30.92 | |
 |
C2060HASSA1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | -40°F to +750°F | 0.234" | 1 | €92.92 | |
 |
C2060HASA2CL | Stainless Steel | C2060HAS | - | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | €92.92 | |
 |
C2060HASD1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | €85.21 |
