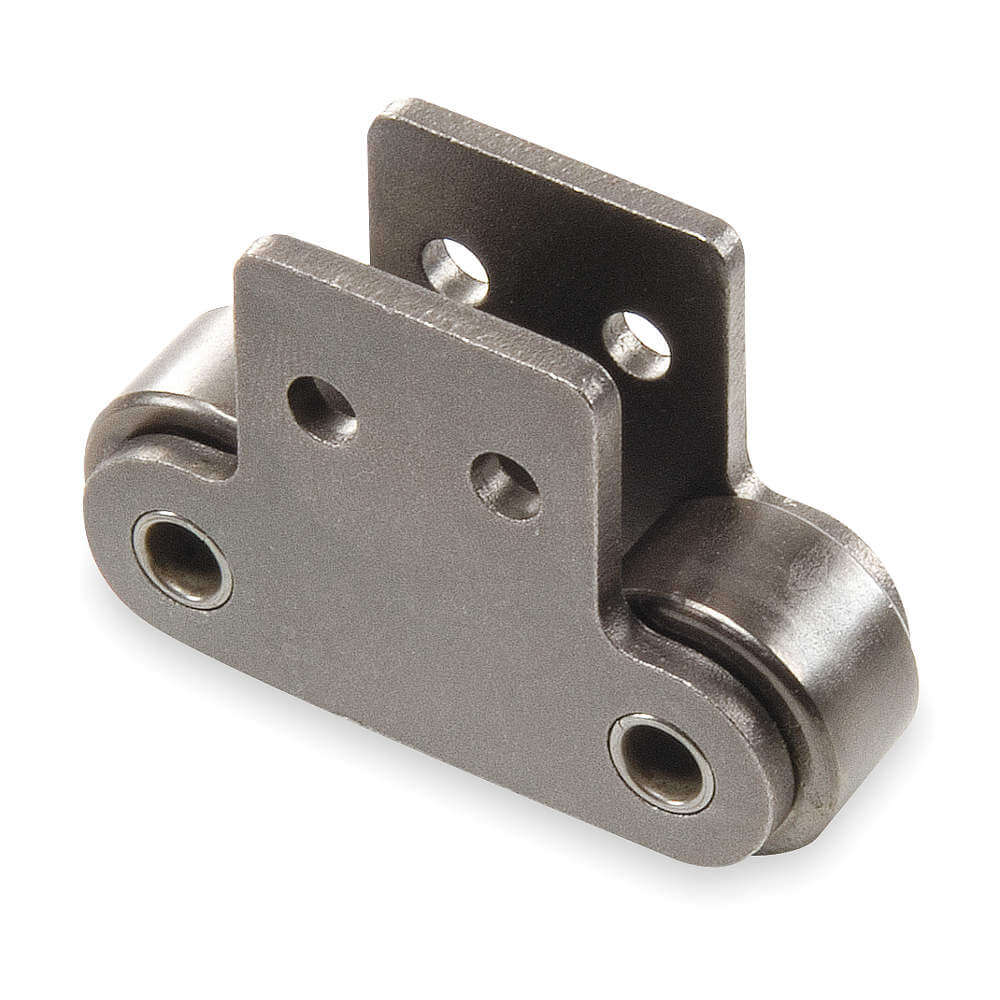

TSUBAKI C2062HSK2RL Roller Link Double Pitch
Item: AB4JJLModel: C2062HSK2RLCross Ref: 1YGA2
7 In Stock
Ships within 2 days via
10.00% off
€39.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2062H |
| Attachment Number | SK-2 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.652" |
| Centerline To Hole Center | 0.573" |
| Chain Number | C2062H |
| Chain Overall Width | 1.225" |
| Connecting End To Center Line | 0.652" |
| Display Qty | 1 |
| Extended Pin Diameter | 0.234" |
| Finish | Plain |
| For Chain Style (combined) | Plain Steel |
| Inside Pin Dia. | 0.234" |
| Length | 1 1/2" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 1410 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.234" |
| Overall Width | 1.225" |
| Pin Contruction | Riveted Pin |
| Pin Length | 1.225" |
| Pin Link Plate Thickness | 0.677" |
| Pin Type | Riveted |
| Pitch | 1 1/2" |
| Plate Height | 0.677" |
| Plate Thickness | 0.5" |
| Rivet End To Center Line | 0.573" |
| Roller Dia. | 7/8" |
| Roller Link Plate Height | 0.677" |
| Temp. Range | +15°F to +300°F |
| Tensile Strength | 9040 lbs.-in. |
| Width Between Roller Link Plates | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.11 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Tensile Strength | Finish | Pitch | Roller Dia. | Temp. Range | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLK2RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €57.08 | |
 |
C2060HLSA1RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €41.52 | |
 |
C2060HLSA2RL | Steel | C2060HL | - | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €41.52 | |
 |
C2060HLSK1RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | - | 0.469" | +14°F to +302°F | 1.225" | €57.08 | |
 |
C2060HSA1RL | Steel | C2060H | 9040 lbs.-in. | Plain | 1 1/2" | 0.469" | +15°F to +300°F | 1.225" | €22.77 | |
 |
C2060HSA2RL | Steel | C2060H | 9040 lbs.-in. | Plain | 1 1/2" | 0.469" | +15°F to +300°F | 1.225" | €22.77 | |
 |
C2060HSK1RL | Steel | C2060H | 9040 lbs.-in. | Plain | - | 0.469" | +15°F to +300°F | 1.225" | €30.07 |
