TSUBAKI 40PC Roller Chain, Single Strand, 40, 1/2 in Pitch, Poly-Steel, 10 ft Overall Lg, Riveted Pin
Item: AE9NMCModel: 40PCCross Ref: 6L079
7 In Stock
Ships within 2 days via
10.00% off
€735.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain |
| Application | Conveying, Driving |
| Chain Construction | Riveted Pin |
| Chain Number | 40 |
| Chain Overall Width | 0.717" |
| Chain Roller Dia. | 0.312" |
| Chain Type | Standard Riveted |
| Connecting End To Center Line | 0.392" |
| Features | The Combination Of Polyacetal Inner Links And Stainless Steel Pins And Outer Link Plates Effectively Incorporates The Advantages Of Both Materials Into One Chain, The Guide Rail Should Support The Bottom Side Of The Links |
| Heavy Series | No |
| Industry Chain Pitch | 1/2" |
| Inside Width | 0.313" |
| Length | 10 ft. |
| Material | Poly Steel |
| Max. Allowable Load | 100 lbs. |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -4°F |
| Number Of Strands | 1 |
| Overall Length | 10 ft. |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Outside Diameter | 0.156" |
| Pitch | 1/2" |
| Plate Height | 0.409", 0.472" |
| Plate Thickness | 0.06" |
| Rivet End To Center Line | 0.325" |
| Roller Bushing Width | 0.312" |
| Roller Chain Item | Roller Chain |
| Roller Chain Standard | ANSI |
| Roller Chain Type | Standard Riveted |
| Roller Dia. | 5/16" |
| Series | Standard Riveted Series |
| Size | 40PC |
| Type | Corrosion Resistant |
| Weight Per Length | 0.26 lbs.-ft. |
| Width Between Roller Link Plates | 0.312" |
| Working Load Limit | 99 lbs. |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 1.82 |
| HS code | 7315110045 |
| Country of Origin | JP |
Product Variants
| Model | Material | Pitch | Type | Tensile Strength | Breaking Strength | Overall Width | Roller Dia. | Rivet End To Center Line | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

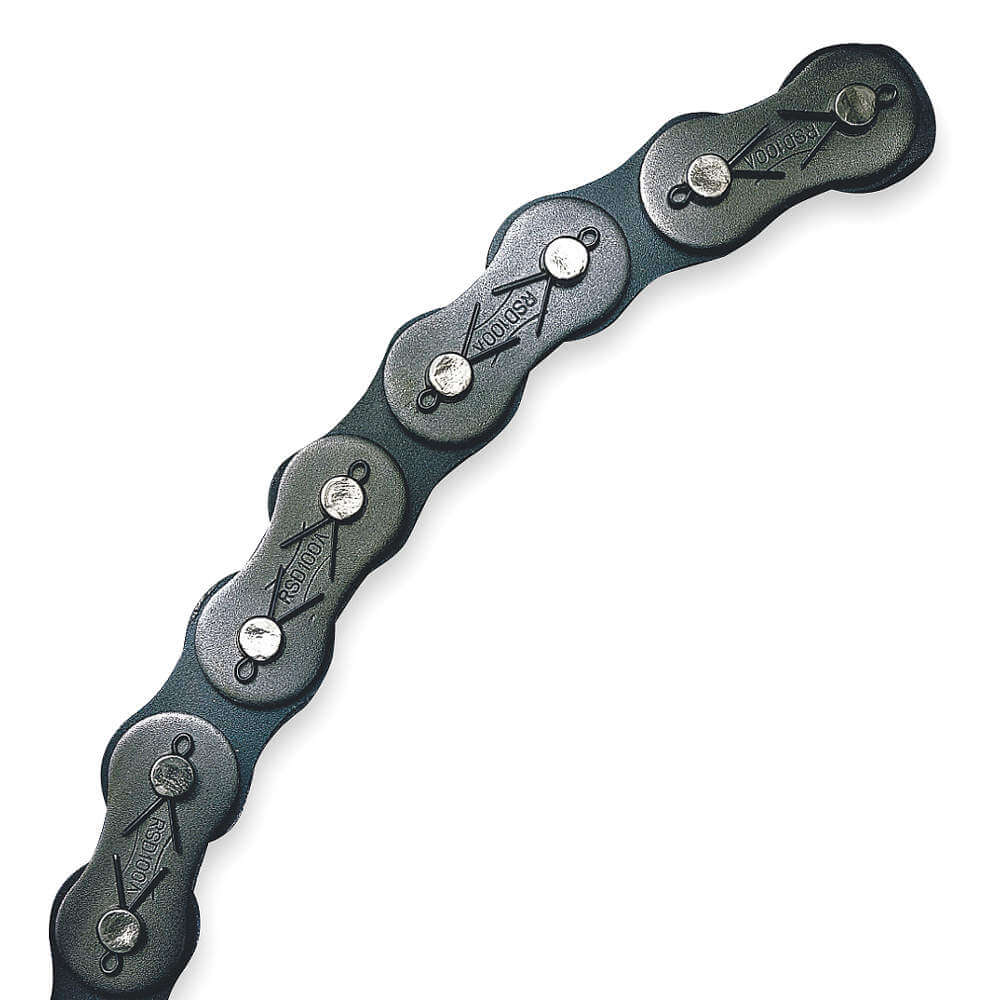

| 80SSCB | Stainless Steel | 1" | - | 397 lbf. | 397 lbs. | 1.406" | 5/8" | 0.638" | €3,331.30 | |

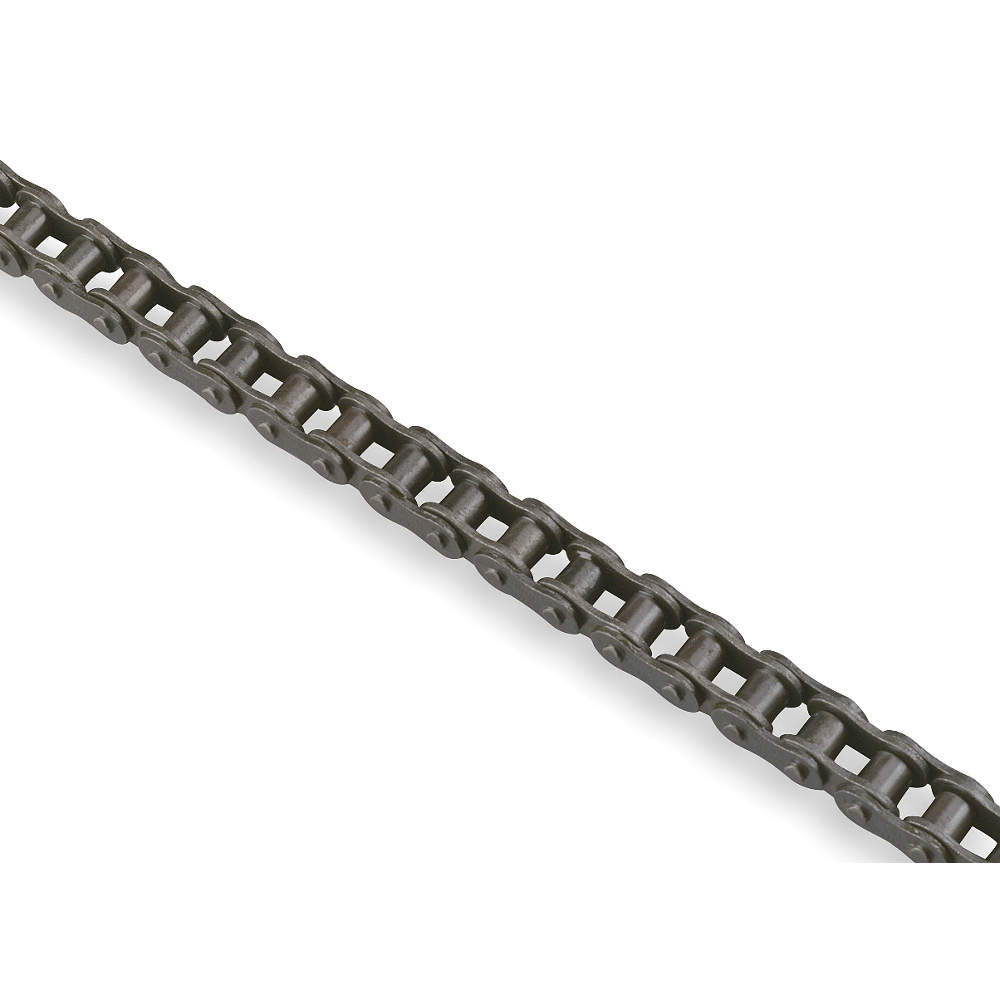

| 35 TW 10 | Steel | 3/8" | Single Strand | 2530 lbf. | 2530 lbs. | 1/2" | 13/64" | 0.23" | €96.58 | |
| 40 TW 10 | Steel | 1/2" | Single Strand | 4290 lbs. | 4290 lbs. | 0.717" | 5/16" | 0.325" | €107.88 | |
| 41 TW 10 | Steel | 1/2" | Single Strand | 2640 lbf. | 2640 lbs. | 0.579" | 5/16" | 0.266" | €86.93 | |
| 50 TW 10 | Steel | 5/8" | Single Strand | 7050 lbf. | 7050 lbs. | 0.878" | 13/32" | 0.406" | €157.81 | |
| 60 TW 10 | Steel | 3/4" | Single Strand | 9920 lbf. | 9920 lbs. | 1.087" | 15/32" | 0.506" | €210.90 | |
| 35 TW 100 | Steel | 3/8" | Single Strand | 2530 lbf. | 2530 lbs. | 1/2" | 13/64" | 0.23" | €1,095.70 |
