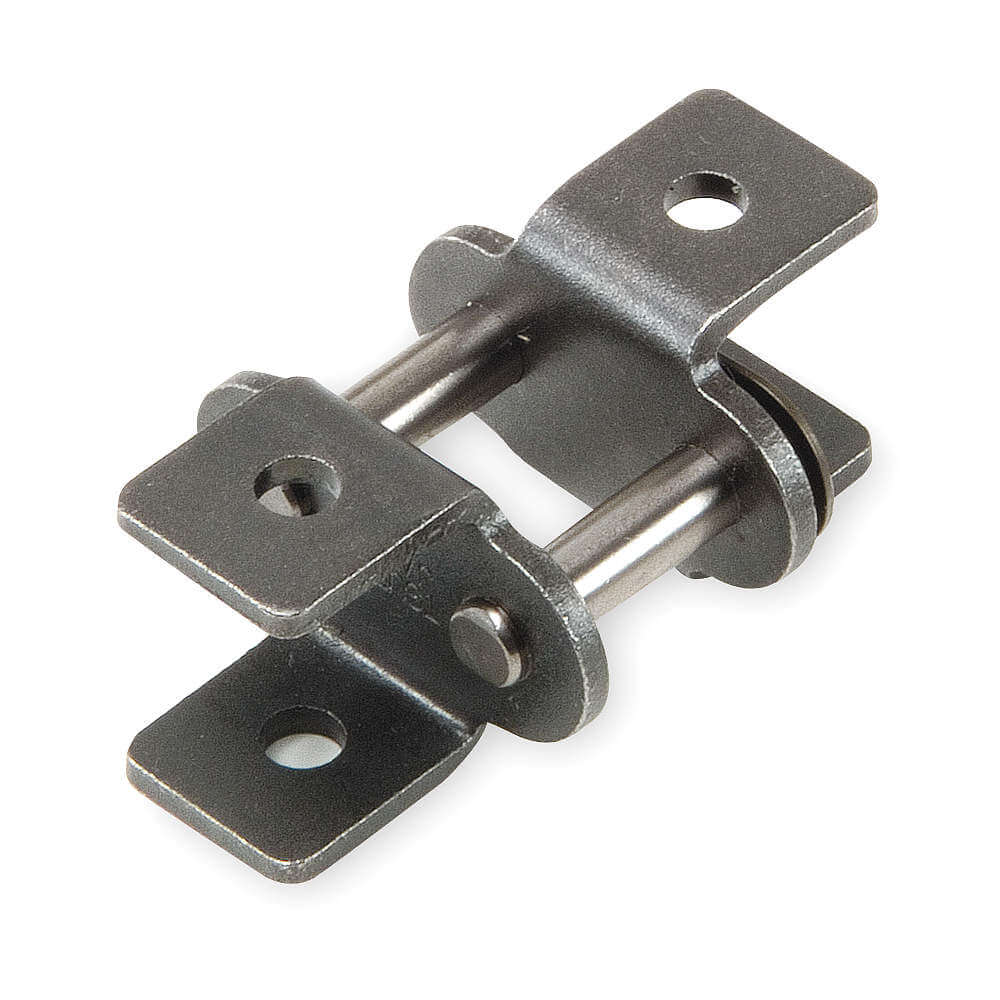

TSUBAKI 40KK1CL Attachment Link, For Std Roller Chains, KK-1, 40, Single Strand, 1/2 in Pitch, Steel
Item: AB4KCLModel: 40KK1CLCross Ref: 1YJL5
7 In Stock
Ships within 2 days via
13.00% off
€100.25 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | 40 |
| Attachment Number | KK-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.392" |
| Centerline To Hole Center | 0.325" |
| Chain Link Overall Width | 0.717" |
| Chain Number | 40 |
| Chain Overall Width | 0.717" |
| Chain Roller Dia. | 0.312" |
| Connecting End To Center Line | 0.392" |
| Extended Pin Dia. | 0.156" |
| Finish | Plain |
| Industry Chain Pitch | 1/2" |
| Inside Pin Dia. | 0.156" |
| Length | 1/2" |
| Link Type | Attachment Link |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
| Max. Operating Temp. | 140°F |
| Min. Operating Temp. | 14°F |
| No. Of Strands | 1 |
| No. Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.717" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1/2" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 0.312" , 19/64" |
| Roller Link Plate Height | 0.472" |
| Tensile Strength | 3750 lbs.-in. |
| Width Between Roller Link Plates | 0.312" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Overall Width | Plate Thickness | Plate Height | Chain Overall Width | Ansi Chain Size | Roller Dia. | Link Plate Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60 AS C/L | Stainless Steel | 1.087" | 3/32" | 23/32" | 1 3/32" | 60AS | 0.469" | - | 5 | €176.61 | |
|
50 AS C/L | Stainless Steel | 0.878" | 5/64" | 19/32" | 7/8" | 50AS | 2/5" | - | 5 | €128.30 | |
|
40 AS C/L | Stainless Steel | 0.717" | 1/16" | 15/32" | 23/32" | 40AS | 0.312" | - | 5 | €106.43 | |
 |
100D1CL | Steel | 1.678" | 3/4" | 1.661" | 1.678" | 100 | 3/4" | - | 1 | €38.39 | |
|
35D1CL | Steel | 1/2" | 0.188" | 0.354" | 1/2" | 35 | - | - | 5 | €66.55 | |
 |
35D3CL | Steel | 1/2" | 0.188" | 0.354" | 1/2" | 35 | - | - | 5 | €74.29 | |
 |
35WA1CL | Steel | 1/2" | 0.188" | 0.354" | 1/2" | 35 | - | - | 5 | €73.16 |
