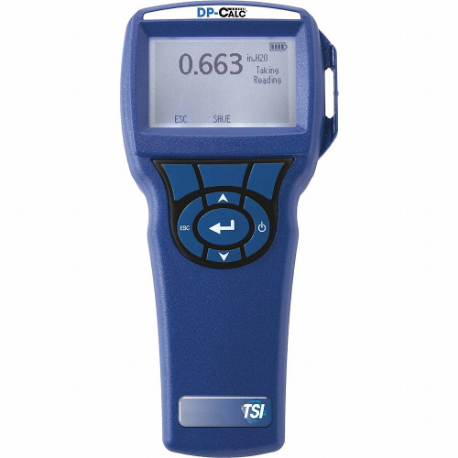

TSI ALNOR 5825 Handheld Digital Manometer, -15 Inch wc to 15 Inch wc, NIST Traceable Certificate
Item: CU7CQQModel: 5825Cross Ref: 53XX19
7 In Stock
Ships within 2 days via
10.00% off
€1,272.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Handheld Digital Manometer |
| Accuracy | -1% to +1% |
| Air Velocity Accuracy | +/-1.5% at 10.16 Mps, +/-1.5% at 2000 Fpm |
| Air Velocity Range | 1.27 mps to 15500 FPM, 250 FPM to 15500 FPM |
| Air Velocity Resolution | 1 FPM, 0.1 mps |
| Air Velocity Unit | FPM, MPS |
| Air Volume Range | 1.27 mps, 250 FPM |
| Alarm | No |
| Application | Air |
| Batteries Required | Yes |
| Battery Included | Yes |
| Battery Type | AA |
| Connection Size | 3/16" |
| Connection Type | Fits 3/16 in ID Tubing |
| Connections | 3/16" Hose Barb |
| Data Hold | Yes |
| Data Interface | USB |
| Display | Backlit |
| For Tubing Diameter | 3/16" |
| For Use With | Pitot Tube |
| Includes | 1.2-M Rubber Tubescarrying Caselogdat2 Downloading Software And USB Cablestatic Pressure Tip |
| Inside Dia. | 0.188" |
| Length | 1 4/5" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Air Velocity | 15500 FPM |
| Max. Operating Pressure | 7 psi |
| Max. Pressure | 7 psi |
| Maximum Operating Temperature | 113°F |
| Maximum Pressure | 15 in. wc |
| Minimum Air Velocity | 1.27 mps, 250 FPM |
| Minimum Operating Temperature | 40°F |
| Minimum Pressure | -15 in. wc |
| Number Of Connections | 2 |
| Number Of Pressures Measured | Dual |
| Operating Pressure Range | -15 in. wc to +15 in. wc |
| Operating Range | 0 kPa to 3.73 kPa |
| Overall Height | 7" |
| Overall Length | 1.8" |
| Overall Width | 3.3" |
| Pressure Accuracy | +/-1% Of Reading |
| Pressure Range | -15 in. wc to +15 in. wc |
| Pressure Type | Differential, Static |
| Pressure Units Displayed | In H2O, Mm Hg, Pa |
| Process Connection Size | 3/16" |
| Process Connection Type | Hose Barb |
| Series | DP-CALC Series |
| Standards | Iso Certified |
| Standards And Approvals | No |
| Storage Temperature Range | -4°F to +140°F |
| Type | Digital |
| Weight | 0.6 lbs. |
| Zero Button | Yes |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 8.38 |
| Country of Origin | US |
