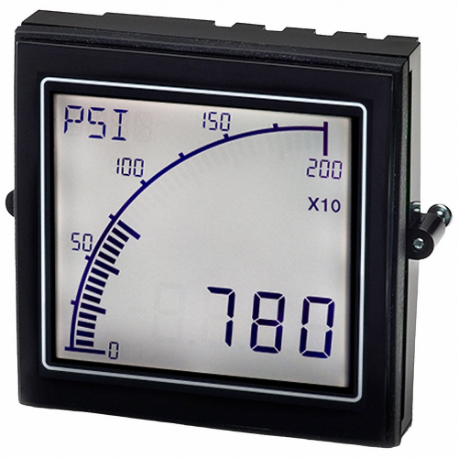

TRUMETER APM-PROC-APO Panel Meter, Process, 0 to 10 V DC/0 to 50 mA Input, 1999 Span, 4 Digit
Item: CU7CNTModel: APM-PROC-APOCross Ref: 794L03
7 In Stock
Ships within 2 days via
10.00% off
€184.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Meter |
| Ac Magnitude Calculation | True RMS |
| Ac Supply Voltage | 12-24V AC |
| Ac Voltage Input | 12-24V AC |
| Ac Voltage Supply Max. | 24V AC |
| Ac Voltage Supply Min. | 12V AC |
| Accuracy | 0.1% |
| Compatible With Grainger Part Number | Panels |
| Connector Type | Screw Terminal |
| Current Display - Maximum | 50 mA |
| Current Display - Minimum | 0 mA |
| Cutout Height | 2 11/16" |
| Cutout Width | 2 11/16" |
| Dc Supply Voltage | 12-24V DC |
| Dc Voltage Input Signal | 12-24V DC |
| Dc Voltage Supply Max. | 24V DC |
| Dc Voltage Supply Min. | 12V DC |
| Depth | 2.09" |
| Digit Height - Max. | 0.47" |
| Digit Height - Min. | 0.23" |
| Digital Display Screen Color | Green, Red, White |
| Digital Display Screen Type | LCD |
| Display | LCD |
| Display Digits | 4 |
| Display Features | High Contrast |
| Display Span | 1999 |
| Display Span - Max. | 9999 |
| Display Span - Min. | 9 |
| Excitation Voltage | No |
| Function Type | Digital Process Meter |
| Includes | Flow And Pressure Transducers, Linear And Non-Linear Sensors, Variable Speed Drives |
| Input Range | 0-10V DC, 0-50 mA |
| Input Signal | 0-50 mA |
| Interface | RS-485 |
| Manufacturers Warranty Length | 3 yrs. |
| Mounting | Panel Cutout |
| Nema Enclosure Rating | NEMA 12, NEMA 4 |
| Number Of Display Digits | 4 |
| Output | 4-20 mA |
| Overall Depth | 2.09" |
| Overall Height | 2.83" |
| Overall Width | 2.83" |
| Parameters Measured | Ac Current, Ac Voltage, Dc Current, Dc Voltage |
| Power Required | 12-24V |
| Process Connection | No |
| Series | APM Series |
| Style | Advanced Panel Meter |
| Supply Voltage | 12-24V AC |
| Terminal Connection Type | Internal Removable Terminal Blocks |
| True Rms | Yes |
| Type | Process |
| Use With | Panels |
| Voltage Display | 0-10V DC |
| Voltage Display - Maximum | 10V DC |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Display Span | Interface | Nema Rating | Depth | Power Required | True Rms | Process Connection | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

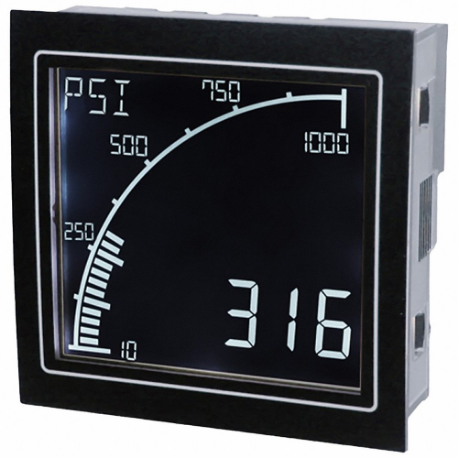

APM-PROC-ANO | 1999 | RS-485 | NEMA 4, NEMA 12 | 2.09" | 12-24V | Yes | No | 0.1% | €203.58 |
