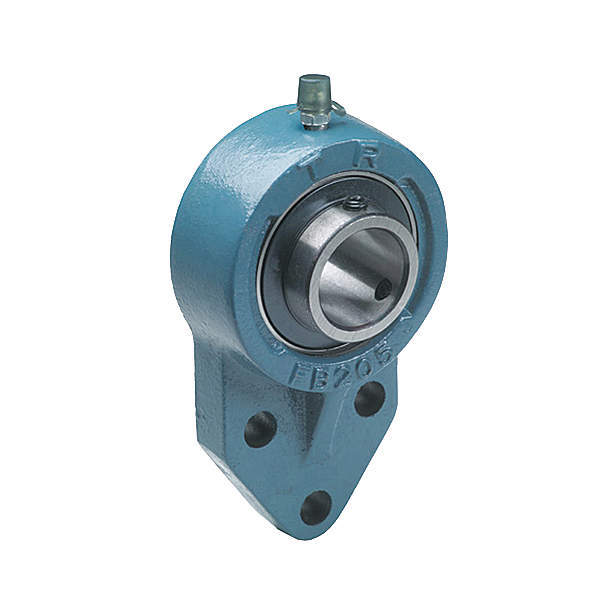

TRITAN UCFB205-16A Flange Bearing 3-Bolt Ball 1 Bore
Item: AH7JYHModel: UCFB205-16ACross Ref: 36UY59
7 In Stock
Ships within 2 days via
10.00% off
€57.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 3-Bolt Flange Bearing |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/16" |
| Bore Dia. | 1" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 3 lbf. |
| Expansion Type | Fixed |
| Features | Ucfb Standard Duty, Wide Inner Ring Bearing |
| Finish | Painted |
| Flange Thickness | 1/2" |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Flange Bracket |
| Included Bearing | UC205-16A |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Height | 1 1/8" |
| Mount Hole Center-to-center Length | 1 5/8" |
| Mount Hole Size | 3/8" |
| Mounting Bolt Size | 5/16" |
| Mounting Hole Center To Center | 41 mm |
| Number Of Mount Holes | 3 |
| Overall Height | 1 27/64" |
| Overall Length | 4 3/4" |
| Overall Width | 2 3/4" |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 1764 lbs. |
| Static Radial Load Capacity | 1764 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 3.61 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 6.99 |
| Country of Origin | CN |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Mount Hole Center-to-center Length | Mount Hole Center-to-center Height | Mounting Bolt Size | Static Radial Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCFB204-12A | 3/4" | 4 1/4" | 2 1/2" | 1 11/32" | 1 1/2" | 7/8" | 1/4" | 1494 lbf. | €59.27 |
