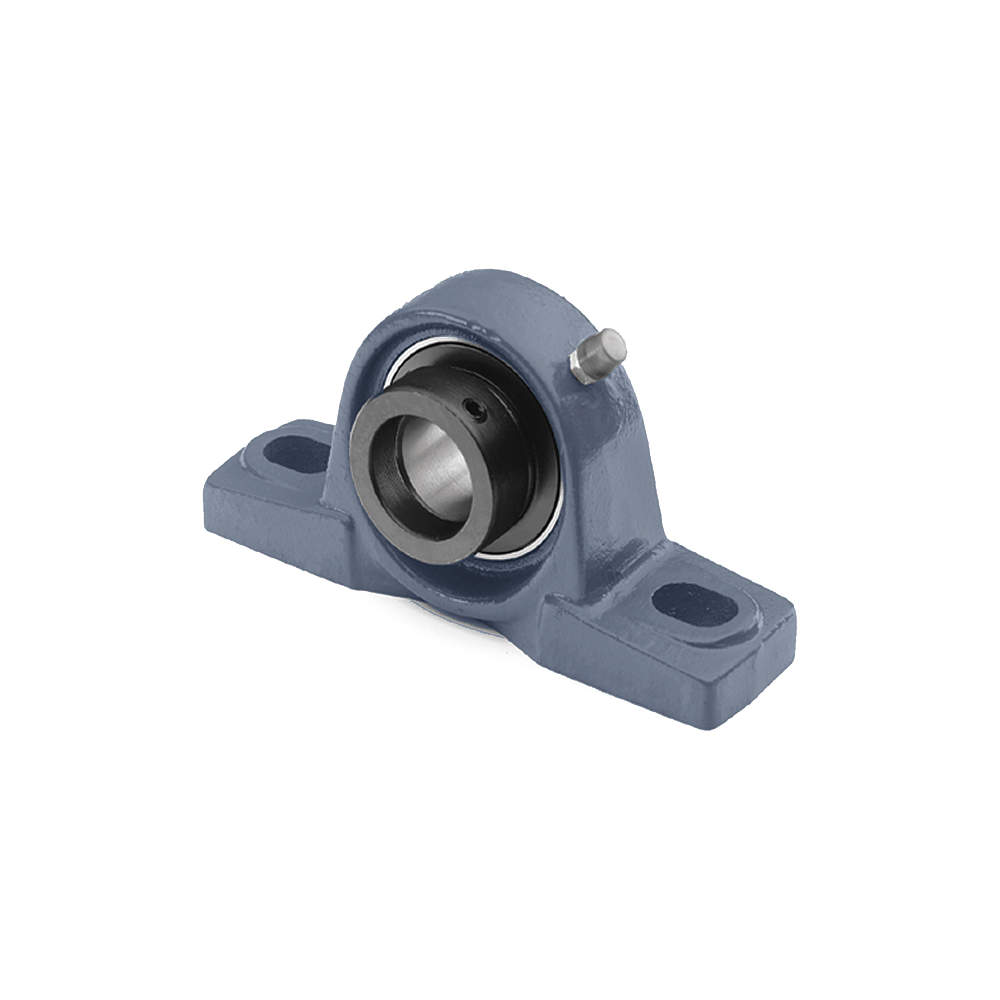

TRITAN HCP207-20 Pillow Block Bearing Ball 1-1/4 Bore
Item: AH7JUQModel: HCP207-20Cross Ref: 36UX67
7 In Stock
Ships within 2 days via
10.00% off
€99.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 0.708" |
| Base Width | 1.889" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 1/2" |
| Bore Dia. | 1 1/4" |
| Bore Diameter Tolerance | -0.0008" to +0.0008" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 5780 lbs. |
| Dynamic Radial Load Capacity | 5780 lbf. |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device, Dual Heavy-Duty Slinger Type Contact Seals, Grease Fitting For Adding Lubricant, One-Piece Cast Iron Housing, Solid Base, Standard Duty Unit, Eccentric Locking Collar, Triple Lip Seals Available On Request, Wide Inner Ring Bearing |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Eccentric Locking Collar |
| Lubricant Material | Grease |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 5" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 1/2" |
| Mounting Hole Center To Center | 127 mm |
| Mounting Surface To Shaft Center | Two Bolt Base |
| Mounting Surface To Shaft Center Height | 1 7/8" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 3.661" |
| Overall Length | 6.574" |
| Overall Width | 2.011" |
| Resistance Properties | Corrosion Resistant, Rust Resistant, Wear Resistant |
| Seal Material | Synthetic Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Eccentric Collar |
| Static Load Capacity | 3440 lbs. |
| Static Radial Load Capacity | 3440 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 1.84 |
| Ship height (cm) | 9.3 |
| Ship length (cm) | 16.7 |
| Ship width (cm) | 5.11 |
| Country of Origin | CN |
Product Variants
| Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Mount Hole Center-to-center Length | Mounting Bolt Size | Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HCP204-12 | Eccentric Locking Collar | 3/4" | 5" | 1 18/25" | 2.559" | 3 47/64" | - | 1 19/64" | €60.82 | |
| HCP205-16 | Eccentric Collar | 1" | 5.511" | 1.748" | 2.795" | 4 1/8" | M10 | 1 27/64" | €70.33 | |
| HCP206-19 | Eccentric Collar | 1.187" | 6.299" | 1.905" | 3.307" | 4 3/4" | 1/2" | 1 43/64" | €91.78 | |
| HCP206-20 | Eccentric Collar | 1 1/4" | 6.299" | 1.905" | 3.307" | 4 3/4" | 1/2" | 1 43/64" | €89.59 | |
| HCP207-23 | Eccentric Collar | 1.437" | 6.574" | 2.011" | 3.661" | 5" | 1/2" | - | €110.32 | |
| HCP208-24 | Eccentric Collar | 1 1/2" | 7.244" | 2.216" | 3.937" | 5 25/64" | 1/2" | 1 59/64" | €131.50 | |
| HCP209-28 | Eccentric Collar | 1 3/4" | 7 12/25" | 2.216" | 4.173" | 5 47/64" | 1/2" | 2 7/64" | €148.26 |
