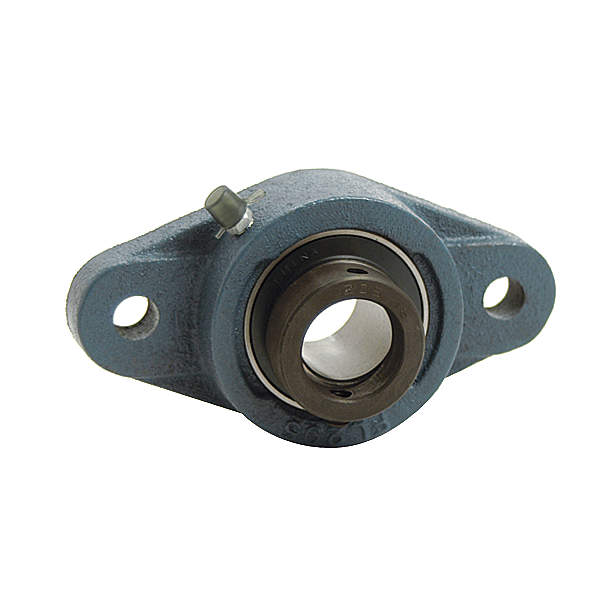

TRITAN HCFLU211-32 Flange Bearing 2-Bolt Ball 2 Bore
Item: AH7JTXModel: HCFLU211-32Cross Ref: 36UX50
7 In Stock
Ships within 2 days via
10.00% off
€154.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 2-Bolt Flange Bearing |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bore Diameter | 2 1/8" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9779 lbf. |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device, Cast-Iron Housing, Dual Heavy-Duty Slinger Type Contact Seals, Standard Duty Unit, Eccentric Locking Collar, Triple Lip Seals (R3 Suffix) Optional, Wide Inner Ring Bearing |
| Finish | Paint |
| Flange Thickness | 1 7/32" |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | HC211-32 |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Eccentric Locking Collar |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 7 1/4" |
| Mount Hole Size | 23/32" |
| Mounting Bolt Size | 5/8" |
| Mounting Hole Center To Center | 184 mm |
| Number Of Mount Holes | 2 |
| Overall Height | 2 51/64" |
| Overall Length | 8 17/32" |
| Overall Width | 5 1/32" |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Eccentric Collar |
| Static Load Capacity | 6564 lbs. |
| Static Radial Load Capacity | 6564 lbf. |
| Temp. Range | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 3.76 |
| Ship height (cm) | 7.1 |
| Ship length (cm) | 21.67 |
| Ship width (cm) | 12.78 |
| Country of Origin | CN |
Product Variants
| Model | Overall Length | Overall Width | Flange Thickness | Mount Hole Center-to-center Length | Mounting Bolt Size | Bore Dia. | Overall Height | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HCFLU204-12 | 4 7/16" | 2 3/8" | 3/4" | 3 17/32" | 3/8" | 3/4" | - | Painted | €52.76 | |
| HCFLU205-16 | 4 7/16" | 2 11/16" | 3/4" | 3 29/32" | 3/8" | 1" | 1 47/64" | Painted | €53.53 | |
| HCFLU206-19 | 5 9/32" | 3 5/32" | 25/32" | 4 19/32" | 3/8" | 1 3/16" | 1 57/64" | Painted | €70.70 | |
| HCFLU206-20 | 5 9/32" | 3 5/32" | 25/32" | 4 19/32" | 3/8" | 1 1/4" | 1 57/64" | Painted | €72.63 | |
| HCFLU207-20 | 6 7/32" | 3 17/32" | 13/16" | 5 1/8" | 7/16" | 1 1/4" | 2" | Painted | €94.71 | |
| HCFLU207-23 | 6 7/32" | 3 17/32" | 13/16" | 5 1/8" | 7/16" | 1 7/16" | 2" | Painted | €95.96 | |
| HCFLU208-24 | 6 25/32" | 3 15/16" | 15/16" | 1 23/32" | 7/16" | 1 1/2" | 2 13/64" | Painted | €125.24 |
