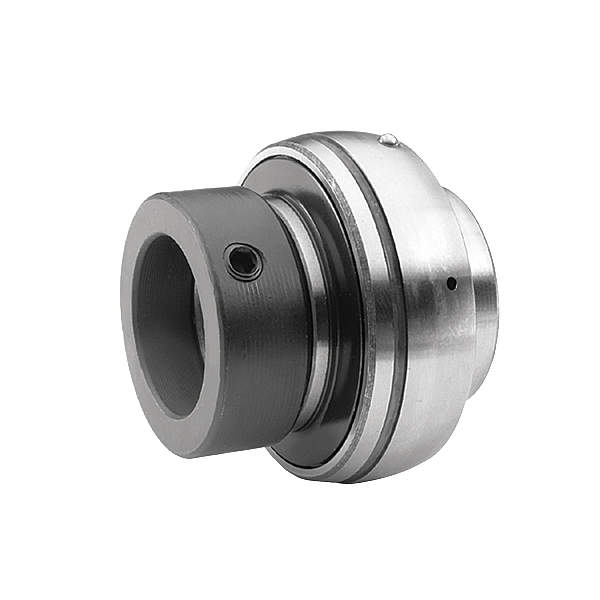

TRITAN HC211-32 Insert Ball Bearing HC 2 Inch Diameter 9779.19 lbs
Item: AH7KETModel: HC211-32Cross Ref: 36VA12
7 In Stock
Ships within 2 days via
13.00% off
€58.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Ball Bearing |
| Application | Commercial, Industrial |
| Ball Material | Alloy, Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | HC211-32 |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 2" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9779.19 lbf. |
| Dynamic Radial Load Capacity | 9779 lbf. |
| Element Material | Alloy Steel |
| Features | Additional Oil Hole On Opposite Side, Anti-Rotation Device |
| For Environment | Chemical, Food And Beverage |
| Included | Set Screws |
| Insert Shape | Spherical |
| Inside Dia. | 2" |
| Load Direction | Radial |
| Lock Type | Self Locking Collar |
| Lubrication Openings | Groove With Oil Hole |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Outer Ring Width | 0.984" |
| Outside Dia. | 3 15/16" , 3 59/64" |
| Ring Material | Alloy, Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Eccentric Collar |
| Static Radial Load Capacity | 6564 lbf. |
| System Of Measurement | Imperial |
| Width | 63/64" |
Shipping Info:
| Ship weight (kg) | 1.57 |
| Ship height (cm) | 9.96 |
| Ship length (cm) | 9.96 |
| Ship width (cm) | 2.5 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Dynamic Load Capacity | Outer Ring Width | Dynamic Radial Load Capacity | Static Radial Load Capacity | Bearing Industry Number | Seal Type | Ring Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HC201-8 | 1/2" | 2877.55 lbf. | 0.669" | 2877 lbf. | 1494 lbf. | HC201-8 | Contact | Alloy, Steel | €36.86 | |
| HC202-10 | 5/8" | 2877.55 lbf. | 0.669" | 2877 lbf. | 1494 lbf. | HC202-10 | Contact | Alloy, Steel | €37.92 | |
| HC204-12 | 3/4" | 2877.55 lbf. | 0.669" | 2877 lbf. | 1494 lbf. | HC204-12 | Contact | Alloy, Steel | €20.09 | |
| HC205-14 | 7/8" | 3147.33 lbf. | 0.669" | 3147 lbf. | 1764 lbf. | HC205-14 | Contact | Alloy, Steel | €29.92 | |
| HC205-15 | 15/16" | 3147.33 lbf. | 0.669" | 3147 lbf. | 1764 lbf. | HC205-15 | Contact | Alloy, Steel | €26.50 | |
| HC205-16 | 1" | 3147.33 lbf. | 0.669" | 3147 lbf. | 1764 lbf. | HC205-16 | Contact | Alloy, Steel | €21.72 | |
| HC206-18 | 1 1/8" | 4386.02 lbf. | 0.748" | - | - | - | - | Alloy, Steel | €33.53 |
