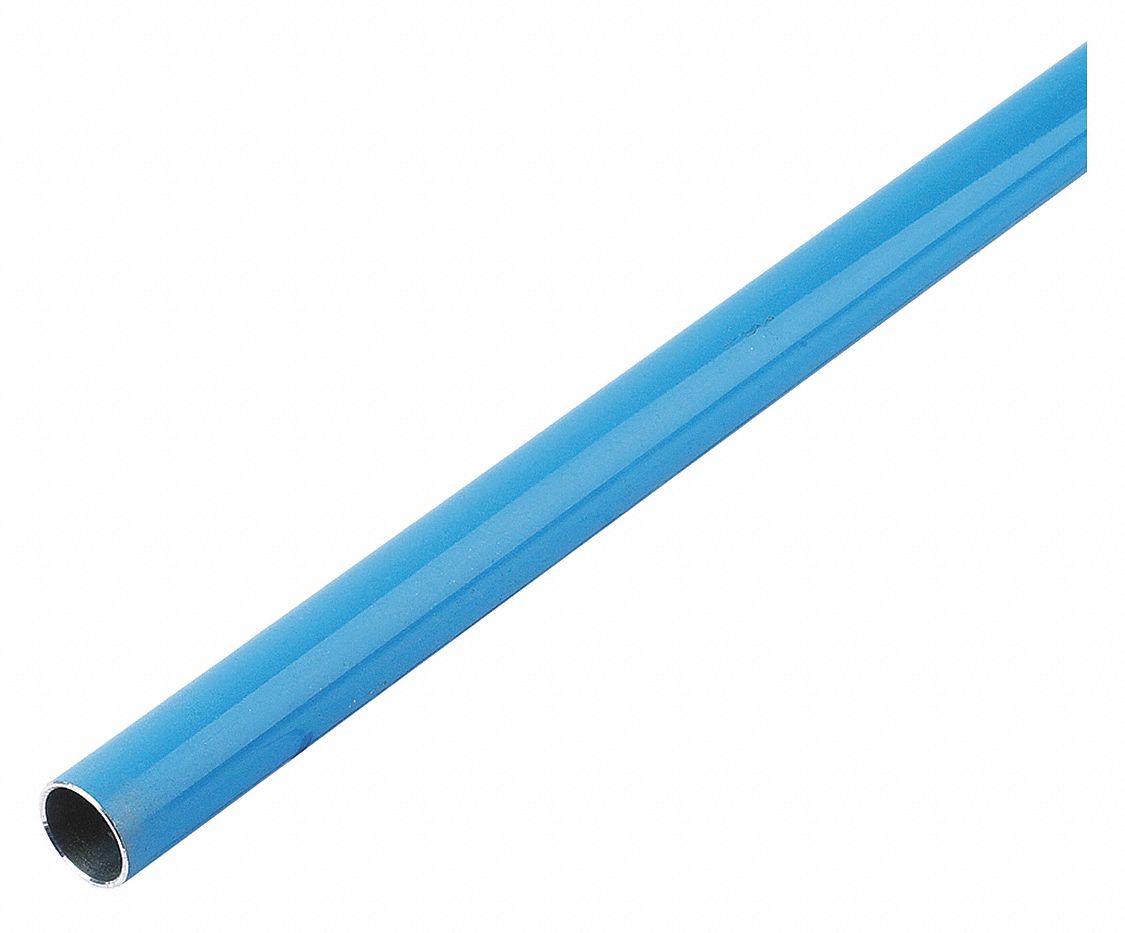

TRANSAIR 1012A25 04 00 Tubing, Aluminium, 1 Inch Outer Dia., 9 Ft. Length, 232 Working Pressure
Item: CH6HMTModel: 1012A25 04 00Cross Ref: 55EM25
7 In Stock
Ships within 2 days via
10.00% off
€94.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Compressed Air, Industrial/Inert Gases, Vacuum |
| Chemical Compatibility | Not Applicable |
| Cleaned And Capped | No |
| Coating Color | Blue |
| Color | Blue |
| Copper Tube Type | Not Applicable |
| Fabrication | Seamless |
| Features | 100% Recyclable, Modular And Reusable, Optimum Flow Rate, Quick Connection Technology |
| Finish/coating | Powder Coated |
| Flow Application | Aerospace, Automotive Assembly, Food And Beverage, Industrial Plants, Packaging |
| For Fitting Type | Push To Connect |
| For Fluid Type | Beverages, Compressed Air, Inert Gases |
| Form | Straight |
| Industry Application | Pneumatics |
| Inside Diameter | 1" |
| Length | 9 ft. |
| Material | Aluminum |
| Material Grade | Grade 6063 |
| Material Trade Name | Transair |
| Max. Vacuum | 29 39/64" |
| Max. Vacuum | 29.609" |
| Maximum Operating Pressure | 232 psi @ 73°F |
| Maximum Operating Temperature | 140°F |
| Maximum Vacuum Pressure | 3 in. hg |
| Minimum Operating Temperature | -4°F |
| Outside Dia. | 1" |
| Overall Length | 9 ft. |
| Petroleum Product Compatibility | Mineral Oil |
| Resistance Properties | Corrosion Resistant |
| Suitable For | Compressed Air, Inert Gases, Vacuum |
| System Of Measurement | Inch |
| Temper | T51 |
| Tube Form | Straight |
| Working Temp. | -4° to +140° |
| Working Temp. | -4 to 140 Deg. |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Mexico |
Product Variants
| Product | Model | Inside Diameter | Material | Color | Outside Dia. | Maximum Operating Temperature | Resistance Properties | Fabrication | Temper | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1012A17 04 00 | 1/2" | Aluminum | Blue | - | 140°F | Corrosion Resistant | Seamless | T51 | €80.33 |
