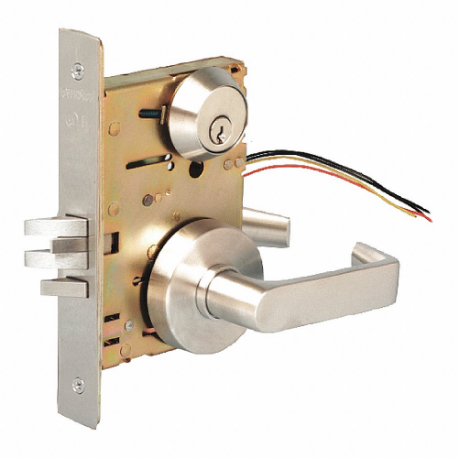

TOWNSTEEL MSS-121-S-DC-613 Mortise Lockset, Grade 1, Ms Sentinel, Oil Rubbed Bronze
Item: CU6VLRModel: MSS-121-S-DC-613Cross Ref: 45LU44
7 In Stock
Ships within 2 days via
10.00% off
€1,203.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mortise Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Storeroom |
| Backset | 2 3/4" |
| Bolt Type | Dead Bolt, Latch Bolt |
| Case Material | Steel |
| Door Thickness - Maximum | 1 3/4" |
| Electrical/mechanical | Yes |
| Failure Mode | Fail Safe |
| Features | Deadbolt With Thumbturn |
| Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Fire Rating | 3 hrs. |
| For Use With | Commercial Doors |
| Function | Storeroom, Fail Safe |
| General Lockset Function | Storeroom Lever Locksets |
| Handle Type | Lever |
| Includes | Hardware |
| Inside Locking Access | Keyway |
| Key Material | Brass |
| Key Type | Keyed Different |
| Keying | Keyed Different |
| Keyway Type | Schlage SC4 |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial, Industrial, Institutional, Residential |
| Lock Assembly Type | Mortise |
| Lockset Handle Type | Lever |
| Lockset Style | MS Sentinel |
| Lockset Type | Electrical, Mechanical |
| Mortise / Cylindrical | Mortise |
| Mortise/cylindrical | Mortise |
| Number Of Keys | 2 |
| Outside Locking Access | Keyway |
| Pins | 6 |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | ASA Strike |
| Style | MS Sentinel |
| Visual Indicator Message | No Message |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Style | Ligature Resistant | Key Type | Strike Dim. | Pins | Number Of Keys | Keyway Type | Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MRX-A-41-630 | Curved | Yes | Not Keyed | 1 1/4" x 4 7/8" | - | - | None | Half Dummy | €533.27 | |
|
MRX-A-72-630 | Curved | Yes | Not Keyed | 1 1/4" x 4 7/8" | - | - | - | Dummy | €970.35 | |
 |
MRX-A-07-630-RH | Curved | Yes | Keyed Different | 1 1/4" x 4 7/8" | 6 | 2 | Schlage C | Storeroom | €1,594.41 | |
|
MRX-A-20-630-RH | Curved | Yes | Keyed Different | 1 1/4" x 4 7/8" | 6 | 2 | Schlage C | - | €1,650.64 | |
 |
CRX-A-86-630-RH | Curved | Yes | Different | 1 1/4" x 4 7/8" | 6 | 2 | Schlage C | Storeroom | €1,425.39 | |
|
MRX-A-26-630-LH | Curved | Yes | Keyed Different | 1 1/4" x 4 7/8" | 6 | 2 | Schlage C | Institutional | €1,738.91 | |
|
MRX-A-26-630-RH | Curved | Yes | Keyed Different | 1 1/4" x 4 7/8" | 6 | 2 | Schlage C | Institutional | €1,738.91 |
