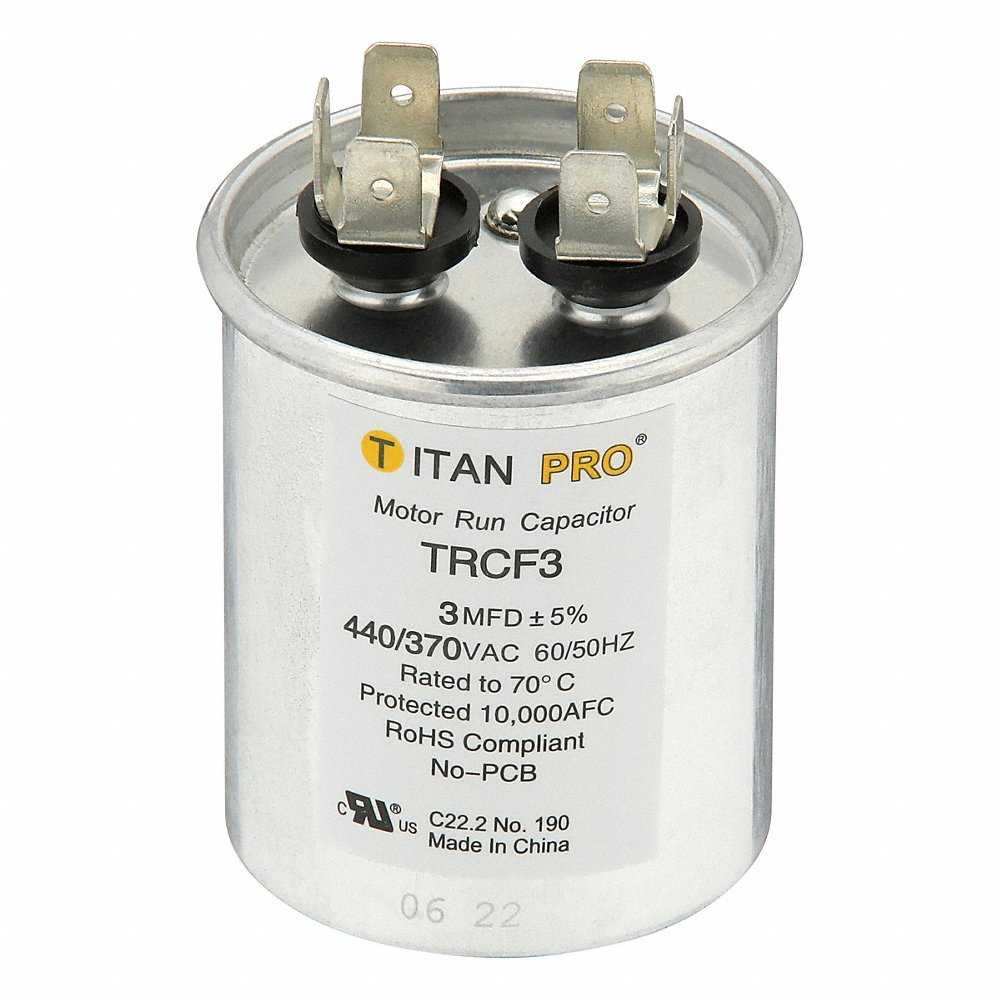

TITAN PRO TRCF3 Motor Run Capacitor, Round, 440/370 VAC, 3 MFD, 2 21/32 Inch Overall Height
Item: CU6TACModel: TRCF3Cross Ref: 61UP08
7 In Stock
Ships within 2 days via
5.00% off
€6.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reversible |
| Capacitor Shape | Round |
| Capacitor Voltage | 440/370V AC |
| Case Height | 2.156" |
| Case Height | 2 5/32" |
| Case Material | Aluminum |
| Dia. | 1 25/32" |
| Eia Ul Base | A |
| For Use With | Motor |
| Frequency | 50/60 Hz |
| Included | Round Motor Run Capacitor |
| Max. Temp. | 70°C |
| Mfd Rating | 3 µF |
| Microfarad Rating | 3 µF |
| Min. Temp. | -40°C |
| Motor Capacitor Type | Motor Run Capacitor |
| No. Of Pieces | 1 |
| Overall Depth | 1 25/32" |
| Overall Height | 2 21/32" |
| Overall Width | 1 25/32" |
| Shape | Round |
| Terminal Design | Standard |
| Terminal Designations | Standard |
| Voltage | 440V |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.75 |
| Ship length (cm) | 4.52 |
| Ship width (cm) | 4.52 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Case Material | Overall Width | Overall Height | Case Height | Shape | Mfd Rating | Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 22F163 | 370V AC | Plastic | 1 7/16" | 1 1/2" | 1 1/8" | Rectangle | 2 µF | 50/60 Hz | €6.67 | |
| 22F164 | 370V AC | Plastic | 1 7/16" | 1 1/2" | 1 1/8" | Rectangle | 3 µF | 50/60 Hz | €6.62 | |
| 22F165 | 370V AC | Plastic | 1 7/16" | 1 7/8" | 1 3/8" | Rectangle | 4 µF | 50/60 Hz | €9.35 | |
| 22F166 | 370V AC | Plastic | 1 7/16" | 1 7/8" | 1 3/8" | Rectangle | 5 µF | 50/60 Hz | €7.88 | |
| 22F167 | 370V AC | Plastic | 1 7/8" | - | 1 1/2" | Rectangle | 7.5 µF | 50/60 Hz | €12.86 | |
| 22F168 | 370V AC | Plastic | 1 7/8" | 2" | 1 1/2" | Rectangle | 8 µF | 50/60 Hz | €14.13 | |
| 22F169 | 370V AC | Plastic | 2 1/4" | 2 1/4" | 1 5/8" | Rectangle | 10 µF | 50/60 Hz | €13.40 |
