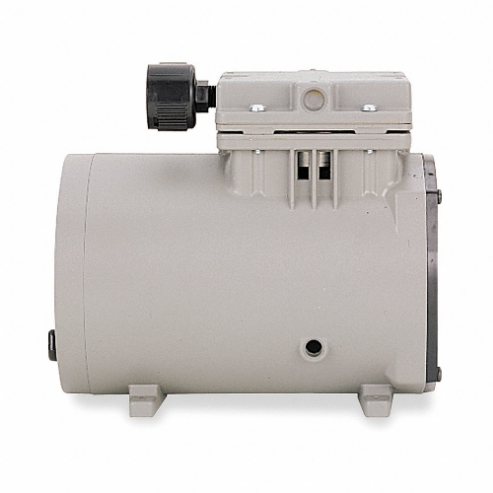

THOMAS PUMPS 617CA32 Oilless Air Compressor, 1/8 Hp, 115 Vac, 1 Phase, 1400 Rpm, 1/4 Inch Npt
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€512.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Piston Air Compressor |
| Color | Gray |
| Cord Length | 6 ft. |
| Current Rating | 4.6A |
| Cylinder Material | Aluminum |
| Cylinder Material | Aluminium |
| Duty Cycle | Continuous |
| Electrical Connection | Cord With Plugs |
| Finish | Painted |
| Free Air Cfm @ 0 In. Hg | 1.22 CFM |
| Free Air Cfm @ 0 In. Hg | 1.22 |
| Free Air Cfm @ 0 Psi | 1.22 |
| Free Air Cfm @ 0 Psi | 1.22 CFM |
| Free Air Cfm @ 10 In. Hg | 0.65 CFM |
| Free Air Cfm @ 10 In. Hg | 0.65 |
| Free Air Cfm @ 20 In. Hg | 0.23 |
| Free Air Cfm @ 20 In. Hg | 0.23 CFM |
| Free Air Cfm @ 20 Psi | 0.97 |
| Free Air Cfm @ 20 Psi | 0.97 CFM |
| Free Air Cfm @ 50 Psi | 0.66 CFM |
| Free Air Cfm @ 50 Psi | 0.66 |
| Free Air Flow Rate | 1.22 CFM |
| Frequency | 60 Hz |
| Full Load Amps | 4.6A |
| Hp | 1/8 hp |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Lubrication Type | Oil-Less |
| Max. Psi Cont. | 50 psi |
| Max. Psi Cont./int. | 50/60 |
| Max. Psi Int. | 60 psi |
| Max. Vacuum | 26.8" Hg |
| Max. Vacuum | 26.8 in. hg |
| Maximum Continuous Pressure | 50 psi |
| Maximum Intermittent Pressure | 50 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Speed | 1400 RPM |
| Minimum Operating Temperature | 50°F |
| Motor Type | Shaded Pole |
| Number Of Cylinders | 1 |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/8 hp |
| Overall Height | 9" |
| Overall Length | 13" |
| Overall Width | 9" |
| Phase | 1 |
| Piston Type | Wob L |
| Power Cord | 6 ft. |
| Power Source | Corded Electric |
| Pump Type | Wob-L Piston |
| Sound Level | 58 dBA |
| Sound Rating | 55 to 58 dBA |
| Tank Style | Tankless |
| Temp. Range | +50°F to +104°F |
| Thermal Protection | Yes |
| Valve | Stainless Steel |
| Valve Material | Stainless Steel |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 5.36 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 22.86 |
| HS code | 8414801690 |
| Country of Origin | US |
Product Details:
- Continous-duty oilless air compressor for high-flow compressed air in industrial machinery, automotive and manufacturing applications
- Permanently lubricated bearings and components provide smooth and quiet operation at 58 dBA
- Powered by single phase, shaded-pole electric motor capable of producing power up to 1/8 HP at 1400 RPM
- Die cast aluminium components and piston cylinder with stainless steel valves for maximum heat transfer and reliability over a long time
- Sandwich valve for protecting the valve seats from dust and other contaminants
- UL-listed and thermally protected
Product Variants
| Product | Model | Voltage | Free Air Flow Rate | Inlet Size | Max. Vacuum | Overall Length | Number Of Cylinders | Phase | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
405ADC38/12 | 12V DC | 0.27 CFM | 1/8" | - | 7 1/2" | 1 | Single | 1/10 hp | €702.76 | |
 |
2688CE44 | 115V AC | 3.15 CFM | 1/4" | 27.6 in. hg | 9 5/8" | 2 | 1 | 1/3 hp | €750.48 | |
|
617CA22 | 115V AC | 0.13 CFM | 1/4" | 25.6 in. hg | 8" | 1 | 1 | 1/8 hp | €618.00 | |
 |

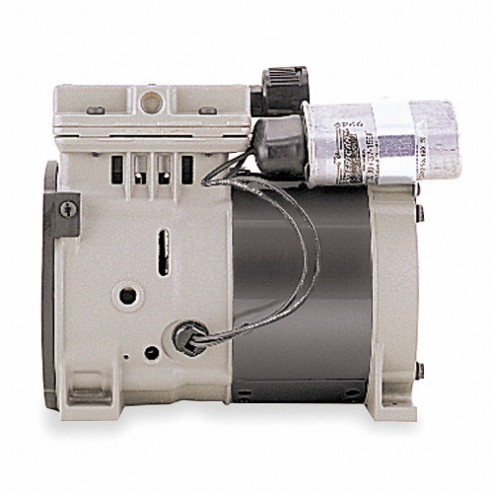

688CE44 | 115V AC | 1.6 CFM | 1/4" | 27.6 in. hg | 8" | 1 | 1 | 1/3 hp | €646.63 | |
 |

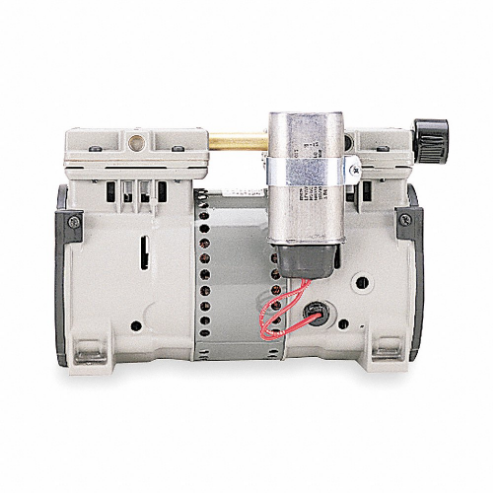

2688VE44 | - | - | - | - | 9 5/8" | 2 | 1 | 1/3 hp | €789.02 |
