THOMAS PUMPS 270047 Piston Air Compressor, 1/3Hp, 24VDC, 0.25 Inch NPT Inlet
Get it by Tuesday, Dec 23
10.00% off
€1,274.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Piston Air Compressor |
| Current Rating | 18.5A |
| Cylinder Material | Cast Iron |
| Enclosure Type | Totally Enclosed |
| Finish | Paint |
| Free Air Cfm @ 0 Psi | 2.2 CFM |
| Free Air Cfm @ 100 Psi | 0.95 CFM |
| Free Air Cfm @ 20 Psi | 1.75 CFM |
| Free Air Cfm @ 50 Psi | 1.34 CFM |
| Free Air Flow Rate | 1 CFM |
| Full Load Amps | 18.5A |
| Hp | 1/3 hp |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Lubrication Type | Oil-Less |
| Max. Psi Cont./int. | 1 |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Speed | 1800 RPM |
| Minimum Operating Temperature | 32°F |
| Motor Type | Permanent Magnet DC |
| Mounting Style | Thru Bolt |
| Number Of Cylinders | 1 |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/3 hp |
| Overall Height | 8 5/8" |
| Overall Length | 11.2" |
| Overall Width | 5.812" |
| Phase | Single |
| Piston Type | Articulating |
| Power Cord | No |
| Pump Type | Articulating Piston |
| Sound Level | 70 dBA |
| Sound Rating | 70 Dba @ 100 Psi |
| Tank Style | Tankless |
| Temp. Range | +32°F to +104°F |
| Thermal Protection | No |
| Valve | Stainless Steel |
| Valve Material | Stainless Steel |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 11.32 |
| Ship height (cm) | 21.91 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 14.76 |
| HS code | 8414801690 |
| Country of Origin | US |
Product Details:
- Thomas 270047 piston air compressor for high-pressure airflow operations in industrial machinery, automotive and manufacturing applications
- 24VDC, 18.5A PMDC motor for low profile operations; produce 1/3Hp power for starting single cylinder piston
- Cast iron construction with stainless steel valve for long service-free life and protection against harsh conditions
- Oil-less, permanent lubrication and sealed bearing components provide a smooth and quiet operation
- Operates in temperatures ranging from 32 degrees to 104 degrees F
Product Variants
| Product | Model | Voltage | Free Air Flow Rate | Overall Height | Overall Length | Thermal Protection | Number Of Cylinders | Phase | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

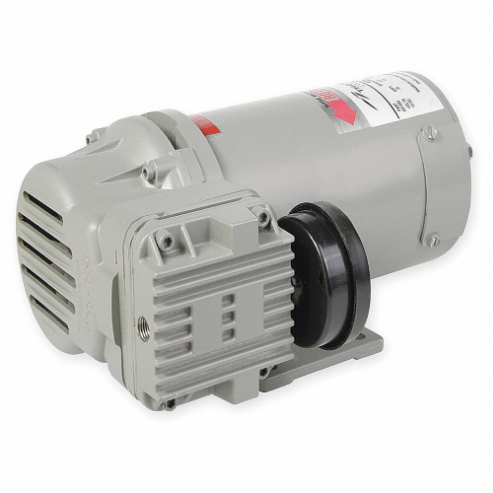

270025 | 12V DC | 1 CFM | 8 5/8" | 11.2" | No | 1 | Single | 1/3 hp | €2,318.79 | |
 |

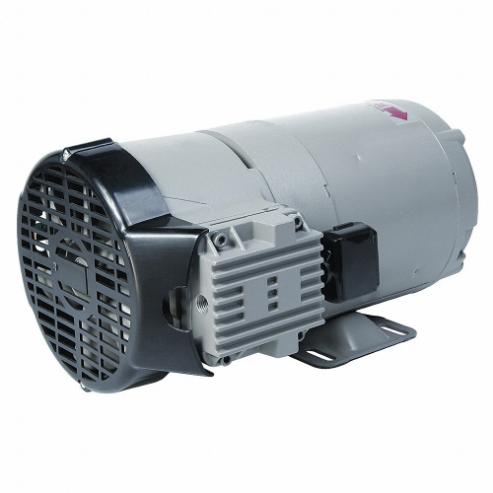

270072 | 115/230V AC | 1.2 CFM | 7" | 14 1/2" | Yes | 2 | 1 | 1/3 hp | €2,038.65 | |
|
270073 | 115/230V AC | 1.7 CFM | 7" | 14 1/2" | Yes | 2 | 1 | 1/2 hp | €2,474.51 | |
|
270080 | 115/230V AC | 2.3 CFM | 7" | 15 1/2" | Yes | 2 | 1 | 3/4 hp | €2,882.13 | |
|
270024 | 12V DC | 1.8 CFM | 5.812" | 11.562" | No | 1 | Single | 1/4 hp | €1,341.71 |
