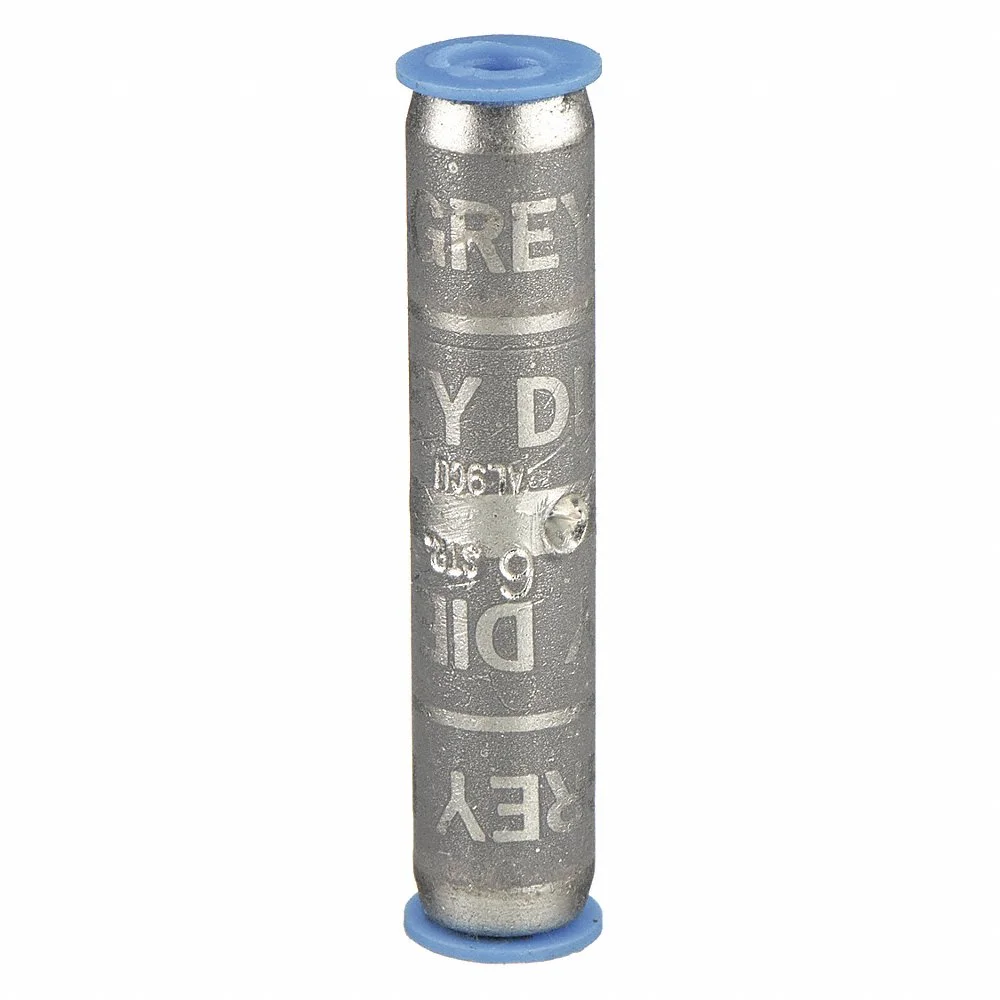

THOMAS & BETTS 60507 Long-Barrel Splice, 6 AWG Wire Gauge, Gray, 29 Die Code, 1.63 Inch Length
Item: CJ2TMXModel: 60507Cross Ref: 3LN05
7 In Stock
Ships within 2 days via
10.00% off
€24.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Long Barrel Splice |
| Barrel Finish | Tin Plated |
| Barrel Od | 0.35" |
| Barrel Size | Long |
| Color Code | Gray |
| Compatible With Product Type | Copper Conductor |
| Contact Finish | Tin |
| Contact Material | Aluminum |
| Die Code | 29 |
| For Conductor Material | Aluminum, Copper |
| For Wire Type | Stranded |
| Material | Copper |
| Max. Conductors | 1 |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV |
| Maximum Wire Insulation Diameter | 0.35" |
| Maximum Wire Size | 6 AWG |
| Minimum Wire Size | 6 AWG |
| Number Of Crimps | 2 |
| Overall Length | 1.63" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | For Aluminum And Copper Concentric Conductors And Compact Code Aluminum Strandings |
| Termination Style | Crimp |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
