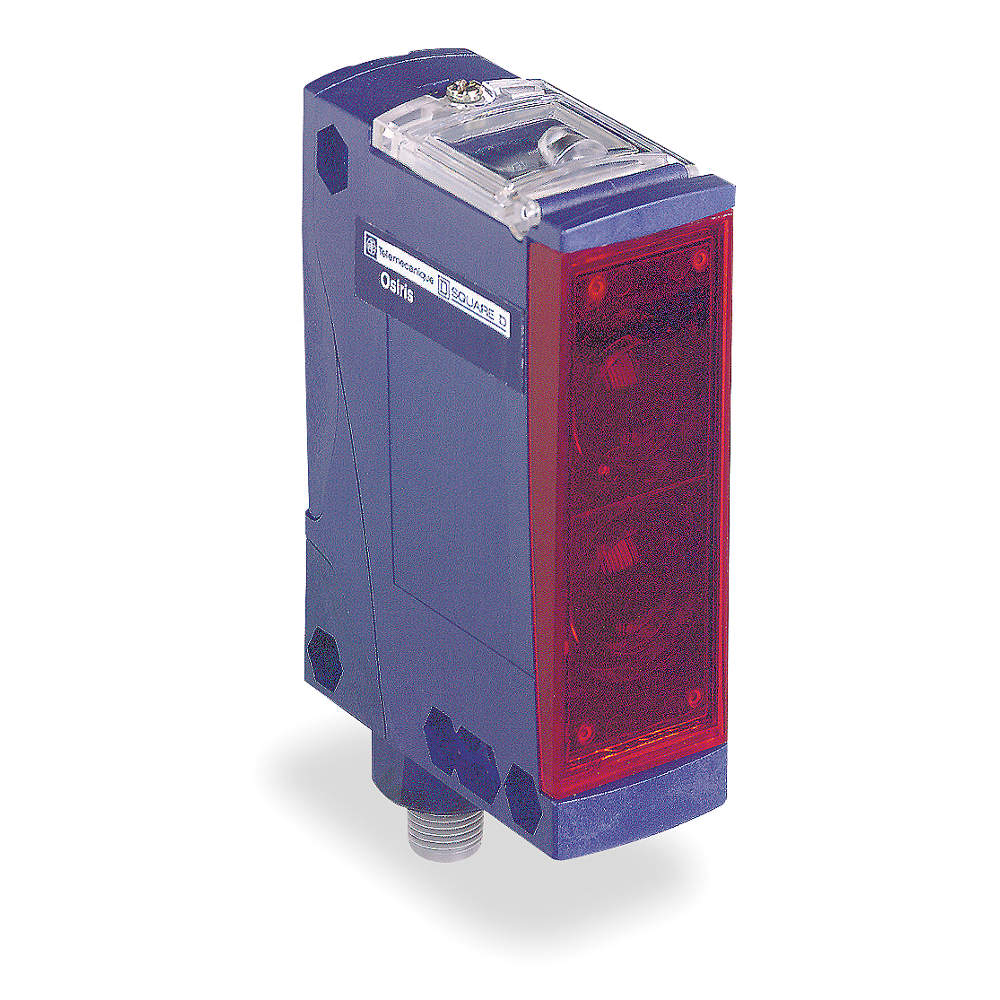

TELEMECANIQUE SENSORS XUX0AKSAM12 Photoelectric Sensor 131ft Pnp/npn No/nc
Item: AG7BJJModel: XUX0AKSAM12Cross Ref: 4AJ36
7 In Stock
Ships within 2 days via
5.00% off
€301.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage | 24-240V AC |
| Circuit Type | NPN, PNP |
| Dc Supply Voltage Rating | 12-24V DC |
| Depth | 3.43" |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Background Suppression, Diffuse, Overload Protection, Polarized Retro Reflective, Programmable, Retro Reflective, Reverse Polarity Protection, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 4.49" |
| Light Source | Infrared LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 11m , 131 ft. |
| Max. Sensing Distance | 131 ft. |
| Min. Operating Temp. | -13°F |
| Nema Rating | IP67 |
| No. Of Pins | 4 |
| Operating Frequency | 250 Hz |
| Operating Mode | Dark On, Selectable Light |
| Operating Temp. | -25°C to +55°C |
| Orientation | Right Angle |
| Output Circuit | NPN, PNP |
| Output Circuit Contact Form | 1NO/1NC |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 77 mm |
| Overall Height | 92 mm |
| Overall Width | 31 mm |
| Power Requirement | 12-24V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 25 ms |
| Sensing Method | Multimode |
| Sensor Body Style | Rectangular |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | XU Series |
| Shape | Rectangle |
| Supply Voltage | 24-240V AC/12-24V DC |
| Supply Voltage Type | Ac, Dc |
| Switching Frequency | 250 Hz |
| Width | 1 1/5" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 13 |
| Ship width (cm) | 9.5 |
| HS code | 8541408000 |
| Country of Origin | FR |
Product Variants
| Product | Model | Max. Load Amps | Supply Voltage | Electrical Connection | Dc Supply Voltage Rating | Supply Voltage Type | Depth | Shape | Operating Mode | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XUX0ARCTT16 | 500 mA | 24-240V AC/24-240V DC | M16 | 24-240V DC | Ac, Dc | 3 11/25" | Rectangle | Dark On, Selectable Light | €374.13 | |
|
XUX0AKSAT16 | 100 mA | 12-24V DC | M16 | 12-24V DC | Dc Only | 87 mm | Rectangular | Selectable Light On/Dark On | €319.76 |
