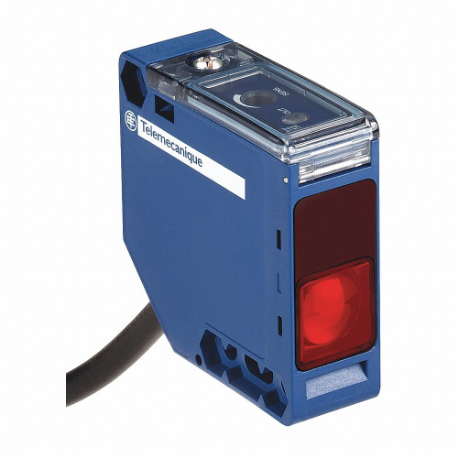

TELEMECANIQUE SENSORS XUK8ARCTL2 Photoelectric Sensor, 24 to 240VAC/DC, NO/NC/Relay, 2m Cable
Item: CU6EYZModel: XUK8ARCTL2Cross Ref: 48T374
7 In Stock
Ships within 2 days via
10.00% off
€401.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Cable Size | 2m |
| Circuit Type | NO/NC, Relay |
| Depth | 45 mm |
| Features | Pmma Lens |
| Height | 70 mm |
| Light Source | Infrared LED |
| Max. Load Amps | 3A |
| Max. Sensing Distance | 750 mm |
| Operating Frequency | 20 Hz |
| Operating Mode | Selectable Light On, Dark On |
| Operating Temp. Range | -25°C to +55°C |
| Response Time | 25 ms |
| Sensing Method | Diffuse |
| Voltage | 24-240V AC/DC |
| Width | 18 mm |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 4 |
| Ship length (cm) | 13.2 |
| Ship width (cm) | 9.5 |
| Country of Origin | ID |
Product Variants
| Model | Sensing Method | Max. Sensing Distance | Circuit Type | Max. Load Amps | Operating Mode | Ip Rating | Body Material | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XUK2ARCNL2T | Through Beam | 45m | NO/NC | 35 mA | Selectable Light On, Dark On | IP65 | - | 45 mm | €137.81 | |
| XUK1ARCNL2 | Retroreflective | 10m | NO/NC, Relay | 3A | Selectable Light On, Dark On | IP65 | PBT | 45 mm | €200.64 | |
| XUK9ARCNL2 | Polarized Retroreflective | 8m | NO/NC, Relay | 3A | Selectable Light On/Dark On | IP65 | PBT | 45 mm | €213.16 | |
| XUK2ARCNL2R | Through Beam | 45m | NO/NC, Relay | 3A | Selectable Light On, Dark On | IP65 | PBT | 45 mm | €187.38 |
