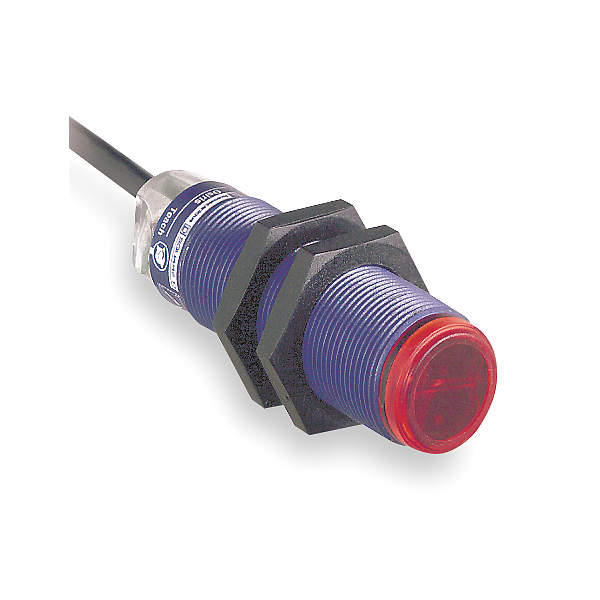

TELEMECANIQUE SENSORS XUB9ANANL2 Photoelectric Sensor 78.7 In Npn No
Item: AG2VLAModel: XUB9ANANL2Cross Ref: 32J326
7 In Stock
Ships within 2 days via
5.00% off
€134.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | PBT |
| Circuit Type | NPN |
| Cylindrical Sensor Dims. (d X L) | 18 mm x 48 mm |
| Dc Supply Voltage Rating | 12-24V DC |
| Depth | 0.71" |
| Dia. | 18 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Overload Protection, Pmma Lens, Reverse Polarity Protection, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 1.89" |
| Light Source | Red LED |
| Light Source | LED |
| Max. Load Amps | 100 mA |
| Max. Load Current | 100mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 7 ft. |
| Max. Sensing Distance | 2m , 7 ft. |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nema Rating | Non NEMA |
| Nominal Sensor Dia. | M18 Threaded |
| Operating Frequency | 500 Hz |
| Operating Mode | Dark On |
| Operating Temp. | -25°C to +55°C |
| Output Circuit | NPN |
| Output Circuit Contact Form | 1NO |
| Output Circuit Type | NPN |
| Overall Height | 48 mm |
| Power Requirement | 12-24V DC |
| Product Type | Photoelectric Sensor |
| Response Time | 1 ms |
| Sensing Method | Polarized Retroreflective |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Straight |
| Sensor Switching Mode | Dark On |
| Series | XU Series |
| Shape | Cylindrical |
| Supply Voltage | 12-24V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 500 Hz |
| Width | 1.1" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 13.2 |
| Ship width (cm) | 9.7 |
| HS code | 8541408000 |
| Country of Origin | ID |
Product Variants
| Product | Model | Ip Rating | Circuit Type | Sensing Method | Sensor Dia. | Max. Operating Temp. | Min. Operating Temp. | Operating Frequency | Power Requirement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XUB1ANANL2 | IP65, IP67 | NPN | Retroreflective | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €133.42 | |
|
XUB1APANL2 | IP65, IP67 | PNP | Retroreflective | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €126.04 | |
|
XUB9APANL2 | IP65, IP67 | PNP | Polarized Retroreflective | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €140.71 | |
|
XUB5APANL2 | IP65, IP67 | PNP | Diffuse | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €136.99 | |
|
XUB5APBNL2 | IP65, IP67 | PNP | Diffuse | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €167.86 | |
 |

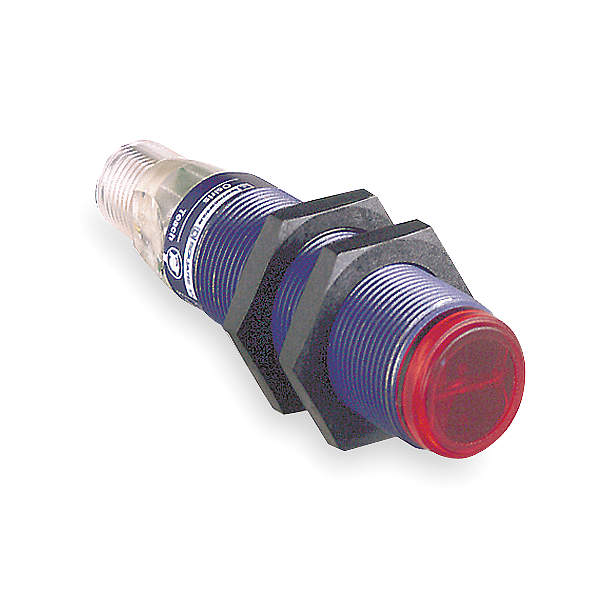

XUB9ANANM12 | IP65, IP67, IP69K | NPN | Polarized Retroreflective | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €131.68 | |
|
XUB9APANM12 | IP65, IP67, IP69K | PNP | Polarized Retroreflective | 18 mm | 131°F | -13°F | 500 Hz | 12-24V DC | €134.48 |
