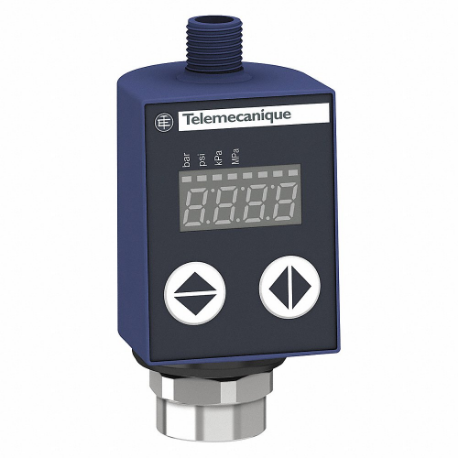

TELEMECANIQUE SENSORS XMLR400M0T25 Fluid and Air Pressure Sensor, 0 to 5801 PSI, 4 to 20mA, Programmable
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fluid and Air Pressure Sensor |
| Analog Output | 4-20 mA |
| Analog Output Current - Maximum | 20 mA |
| Analog Output Current - Minimum | 4 mA |
| Display Qty | 1 |
| Electrical Connection | 4 Pin M12 Connector |
| Electrical Connection Type | 4 Pin M12 |
| Housing Material | Polyacrylamide, Stainless Steel |
| Ip Rating | IP65, IP67 |
| On/off Setting | Programmable |
| Operating Temp. Range | -4°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -4°F |
| Overall Depth | 1.65" |
| Overall Height | 3.46" |
| Overall Width | 1.61" |
| Power Required | 24V DC |
| Pressure - Maximum | 5800 psi |
| Pressure - Minimum | 0 psi |
| Pressure Connection Type | DIN |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Proof Pressure | 34800 psi |
| Range | 0 psi to 5801 psi |
| Series | XMLR Series |
| Voltage Rating - Maximum | 24V DC |
| Wetted Materials | Stainless Steel |
| Wetted Materials Grade | Stainless Steel, Ceramic, Fluorocarbon |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Electrical Connection | Max. Pressure | Ip Rating | Analog Output | Operating Temp. Range | Range | Control Output | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XMLR001G1P75 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 0-10V DC | -4°F to +176°F | 0 psi to 14.5 psi | PNP | 24V DC | - | RFQ
|
 |
XMLR001G1P26 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 4-20 mA | -4°F to +176°F | 0 psi to 14.5 psi | PNP | 24V DC | - | RFQ
|
|
XMLR001G1P25 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 4-20 mA | -4°F to +176°F | 0 psi to 14.5 psi | PNP | 24V DC | - | RFQ
|
|
XMLR001G1N26 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 4-20 mA | -4°F to +176°F | 0 psi to 14.5 psi | Dehumidification Capability | 24V DC | - | RFQ
|
 |
XMLR001G0T26 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 4-20 mA | -4°F to +176°F | 0 psi to 14.5 psi | - | 24V DC | - | RFQ
|
|
XMLR001G1N25 | 4 Pin M12 Connector | 101.5 psi | IP65, IP67 | 4-20 mA | -4°F to +176°F | 0 psi to 14.5 psi | Dehumidification Capability | 24V DC | - | RFQ
|
 |
XMLR001G2N06 | 4 Pin M12 Connector | 101.5 psi | - | - | -4°F to +176°F | 0 psi to 14.5 psi | Dehumidification Capability | 24V DC | - | RFQ
|
