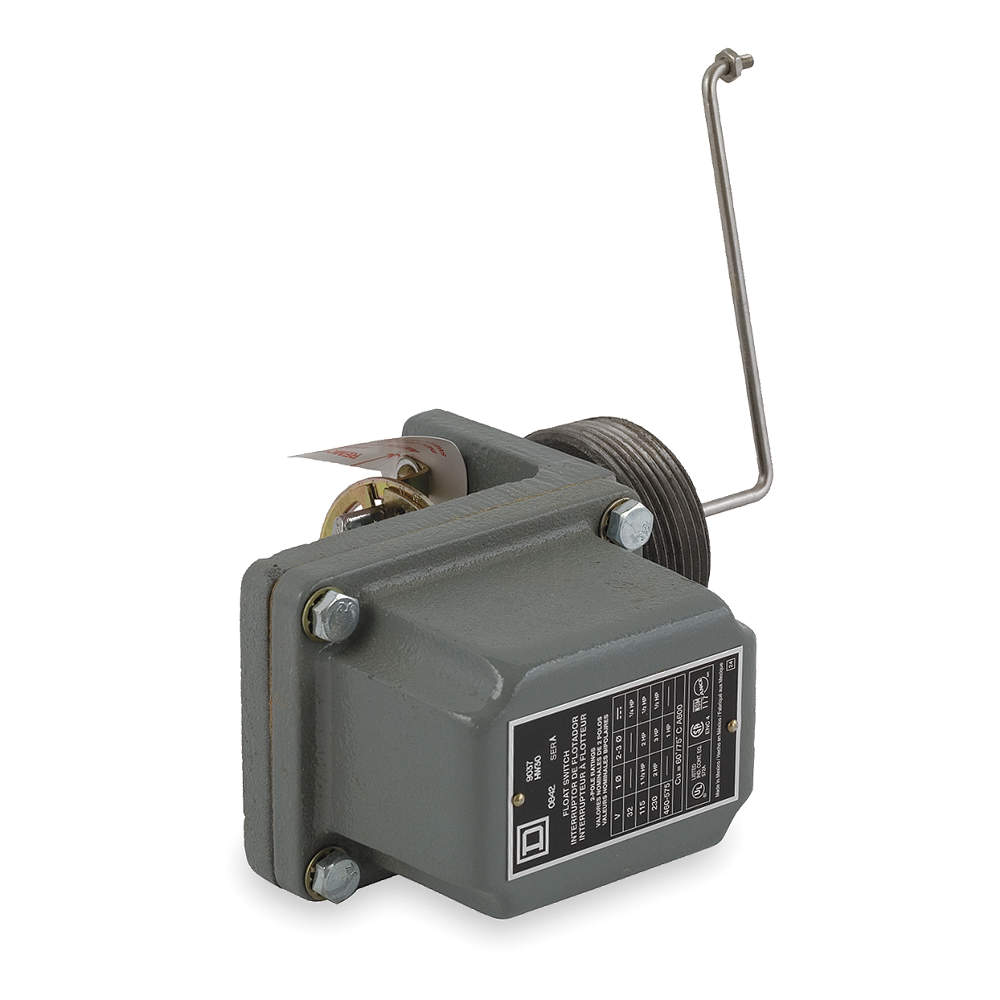

TELEMECANIQUE SENSORS 9037HW35 Liquid Level Switch 2-1/2 Inch Mnpt Close On Rise Ss
Get it by Monday, Jul 6
5.00% off
€712.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Liquid Level Switch |
| Body Material | Aluminum |
| Components Included | Float, Rod |
| Conduit Size | 2 3/4" |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw Clamp |
| Float Dia. | 2.58" |
| Float Length | 7.13" |
| Float Material | Stainless Steel |
| Float Position | Right |
| Float Rod Angle | 90° |
| Float Travel | 4-1/2" |
| Float Travel | 4 1/2" |
| Height | 6.22" |
| Hp @ 1 Ph-240v | 3 hp |
| Hp @ 1 Phase - 115v | 2 |
| Hp @ 1 Phase-115v | 2 hp |
| Hp @ 1 Phase-120v | 2 hp |
| Hp @ 1 Phase-240v | 3 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Hp @ 3 Phase-240v | 5 hp |
| Max. Amps | 600A |
| Max. Current | 600A |
| Max. Operating Temp. | 220°F |
| Max. Pressure | 50 psi |
| Max. Voltage | 575V , 600V |
| Min. Media Specific Gravity | 0.85 xg |
| Min. Operating Temp. | -22°F |
| Mounting | Horizontal |
| Mounting Position | Horizontal |
| Mounting Style | Closed Tank Vertical |
| Nema Enclosure Rating | 4 |
| No. Of Contact Form | 2 , DPST/NC |
| Operating Temp. | -22°F to +220°F |
| Overall Height | 5.98" |
| Overall Length | 16.06" |
| Overall Width | 2 22/25" |
| Proof Pressure | 50 psi |
| Series | 9037H Series |
| Stem Length | 4.37" |
| Stem Material | Stainless Steel |
| Stem Thread Size | 2 1/2" Mnpt |
| Switch Function | Close On Rise |
| Tank Connection Size | 2.5" |
| Tank Connection Size | 2-1/2" MNPT |
| Tank Connection Type | MNPT |
| Width | 3.63" |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 48.39 |
| Ship length (cm) | 122.91 |
| Ship width (cm) | 19.05 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Float Rod Angle (90 Degrees)
Product Variants
| Model | Body Material | Operating Temp. | Max. Voltage | Switch Function | Height | Conduit Size | Float Position | Float Travel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9037HG30 | Steel | -22°F to +220°F | 600V | Close On Rise | 5.98" | 3 1/2" | Left | 6 1/4" | €305.65 | |
| 9037HG31 | Steel | -22°F to +220°F | 600V | Close On Rise | 5.98" | 3 1/2" | Right | 9 1/2" | €277.06 | |
| 9037HG32 | Steel | -22°F to +220°F | 600V | Close On Rise | 5.98" | 3 1/2" | Left | 9 1/2" | €301.78 | |
| 9037HG32L | Steel | -22°F to +220°F | 600V | Close On Rise | 5.98" | 3 1/2" | Left | 9 1/2" | €202.66 | |
| 9037HG33 | Steel | -22°F to +220°F | 600V | Close On Rise | 4 11/25" | 3 1/2" | Right | 3" | €270.26 | |
| 9037HG33R | Steel | -22°F to +220°F | 600V | Open On Rise | 5.98" | 3 1/2" | Right | 3" | €284.50 | |
| 9037HG34 | Steel | -22°F to +220°F | 600V | - | 4 11/25" | 3 1/2" | Left | 3" | €242.43 |
