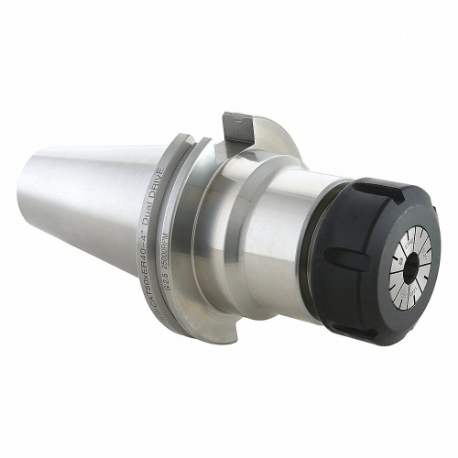

TECHNIKS 47.122.20.600 Collet Chuck, Straight Shank, Cat50 Taper Size, 6 Inch Projection
Item: CU4ZKAModel: 47.122.20.600Cross Ref: 60AR01
7 In Stock
Ships within 2 days via
5.00% off
€498.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Application | Coolant Thru, Drilling, High-Speed, Milling |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model No. | 16087 |
| Compatible Collet Wrench | 04610 |
| Compatible Nut Model No. | 41120 |
| Contact Type | Dual Contact |
| Coolant Fed | Coolant Through |
| Coolant Hole Shape | Round |
| Coolant Screws | Coolant Screws Included |
| Coolant Supply | Coolant Through Spindle |
| Features | 000 RPM At G2.5, Balanced To 25, New One-Piece Design For Dual-Contact Spindles |
| For Collet Series | Er20 |
| For Max. Collet Size | 0.512" |
| For Shank Type | Straight |
| For Use With | CNC Machining |
| Included Nut Type | Hex |
| Max. Collet Capacity | 0.512" |
| Max. Outside Dia. | 2.75" |
| Max. Speed | 25000 RPM |
| Nut | Nut Included |
| Nut Dia. | 1.34" |
| Product Type | Cat Collet Chuck |
| Projection | 6" |
| Shank Dia. | 0.512" |
| Shank Type | Straight |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT50 |
Shipping Info:
| Ship weight (kg) | 4.46 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Nut Dia. | Taper Size | Max. Collet Capacity | Nose Dia. | Projection | T.i.r. Tolerance | For Collet Series | Compatible Collet Wrench | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 04788 | 50 mm | - | 0.787" | - | 38 mm | 0" | ER32 | 04615 | €312.87 | |
| 22225 | 1.06" | Cat40 | 0.406" | 1 2/25" | 2 19/25" | 0.0001" | - | 04609 | €256.55 | |
| 22227 | 1.06" | Cat40 | 0.406" | 1 2/25" | 4" | 0.0001" | - | 04609 | €261.95 | |
| 22235 | 1.34" | Cat40 | 0.512" | 1.34" | 2 19/25" | 0.0001" | Er20 | 04610 | €238.90 | |
| 22237 | 1.34" | Cat40 | 0.512" | 1.34" | 4" | 0.0001" | Er20 | 04610 | €260.46 | |
| 22239 | 1.34" | Cat40 | 0.512" | 1.34" | 6" | 0.0001" | Er20 | 04610 | €278.08 | |
| 22247 | 1.65" | Cat40 | 3/4" | 1.65" | 6" | 0.0001" | - | 04615 | €277.90 |
