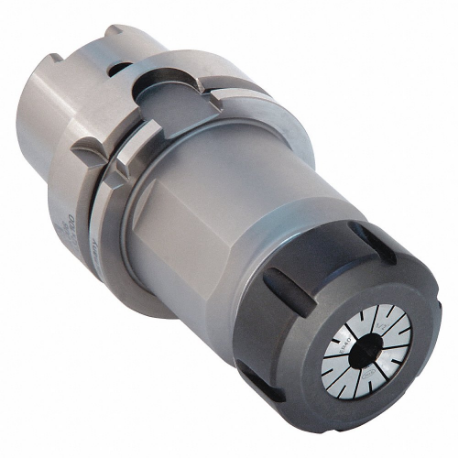

TECHNIKS 31484 Collet Chuck, Hsk100A Taper Size, 100 mm Projection
Item: CU4ZJBModel: 31484Cross Ref: 40MH52
7 In Stock
Ships within 2 days via
10.00% off
€600.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Balance Rating | G2.5 |
| Balanceable | Yes |
| Compatible Collet Wrench | 04609 |
| Compatible Nut Model No. | 41116 |
| Contact Type | Single Contact |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Features | Yes |
| For Collet Series | ER16 |
| For Max Collet Size | 0.413" |
| For Min Collet Size | 0.019" |
| For Use With | Wrench Mfr. No. 4613 |
| Included Nut Type | Hex |
| Includes Nut | Nut Included |
| Material | High Speed Steel |
| Max Speed | 25000 RPM |
| Max. Collet Capacity | 0.413" |
| Min. Collet Capacity | 0.019" |
| Nose Dia. | 28 mm |
| Nut Dia. | 1.26" |
| Nut Diameter | 28 mm |
| Outside Diameter - Maximum | 75 mm |
| Pre-balanced | Yes |
| Product Type | Hsk Collet Chuck |
| Projection | 100 mm |
| Runout | Yes |
| Spindle | Yes |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | HSK100A |
Shipping Info:
| Ship weight (kg) | 2.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Projection | Taper Size | Nut Dia. | Material | Max. Collet Capacity | Nose Dia. | Min. Collet Capacity | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 04788 | 38 mm | - | 1.97" | High Speed Steel | 0.787" | - | 0.039" | 1 1/2" | €312.87 | |
| 22225 | 2 19/25" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €256.55 | |
| 22227 | 4" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €261.95 | |
| 22235 | 2 19/25" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €238.90 | |
| 22237 | 4" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €260.46 | |
| 22239 | 6" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €278.08 | |
| 22247 | 6" | Cat40 | 1.65" | High Speed Steel | 3/4" | 1.65" | 0.039" | - | €277.90 |
