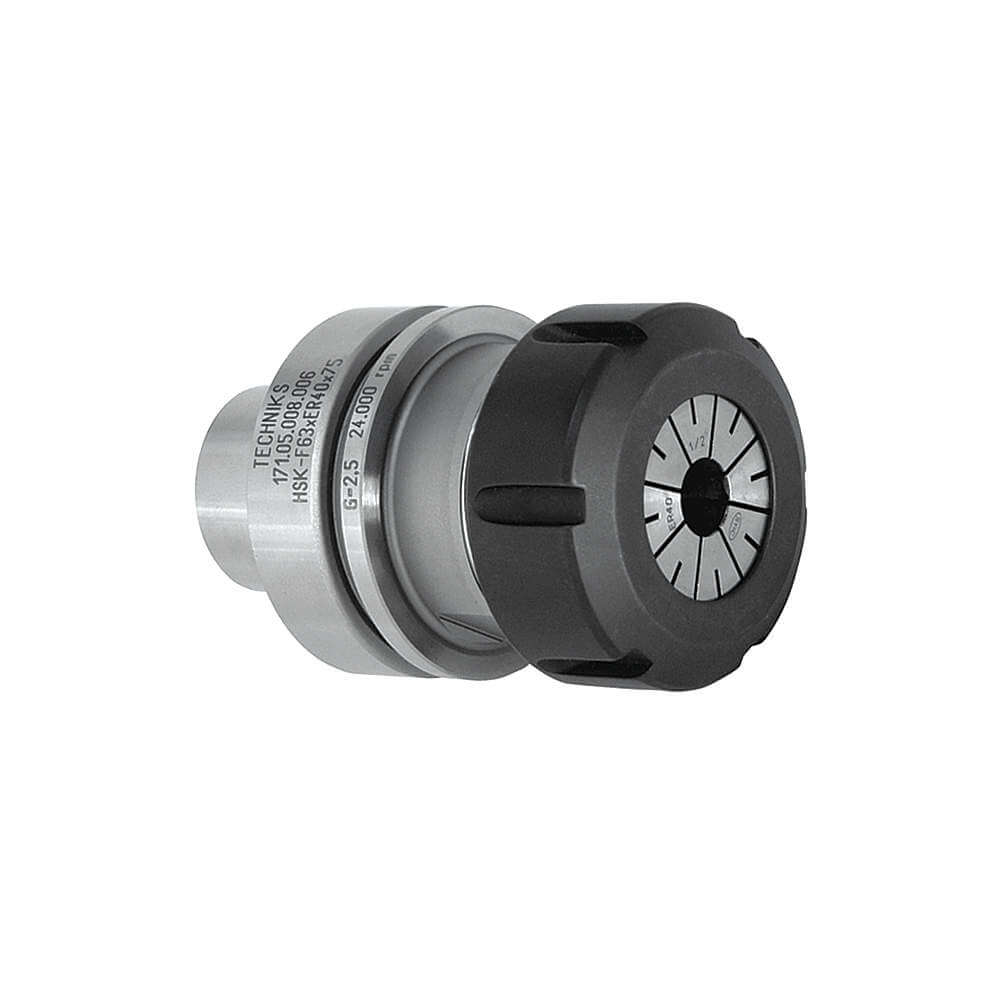

TECHNIKS 30005 Collet Chuck HSK63F ER40 4.921 Inch Steel
Item: AH6EPHModel: 30005Cross Ref: 35YJ58
7 In Stock
Ships within 2 days via
10.00% off
€604.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Balance Rating | G2.5 |
| Collet Series | ER40 |
| Compatible Collet Wrench | 04617 |
| Compatible Nut Model No. | 46140 |
| Contact Type | Single Contact |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through |
| Diameter | 2 12/25" |
| For Collet Series | Er40 |
| For Max Collet Size | 1.024" |
| For Min Collet Size | 0.079" |
| For Use With | Collets, Coolant Rings, Nuts, Retention Knobs, Tightening Stands, Wrenches |
| Included Nut Type | Slotted |
| Includes Nut | Nut Included |
| Material | High Speed Steel |
| Max Speed | 25000 RPM |
| Max. Collet Capacity | 1.024" |
| Min. Collet Capacity | 0.079" |
| Nut Dia. | 2 12/25" |
| Nut Diameter | 63 mm |
| Outside Diameter - Maximum | 48.01 mm |
| Product Type | Hsk Collet Chuck |
| Projection | 125 mm |
| Size | HSK63F |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | HSK63F |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 14.94 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 8.13 |
| Country of Origin | TW |
Product Variants
| Model | Projection | Taper Size | Nut Dia. | Material | Max. Collet Capacity | Nose Dia. | Min. Collet Capacity | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 04788 | 38 mm | - | 1.97" | High Speed Steel | 0.787" | - | 0.039" | 1 1/2" | €312.87 | |
| 22225 | 2 19/25" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €256.55 | |
| 22227 | 4" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €261.95 | |
| 22235 | 2 19/25" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €238.90 | |
| 22237 | 4" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €260.46 | |
| 22239 | 6" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €278.08 | |
| 22247 | 6" | Cat40 | 1.65" | High Speed Steel | 3/4" | 1.65" | 0.039" | - | €277.90 |
