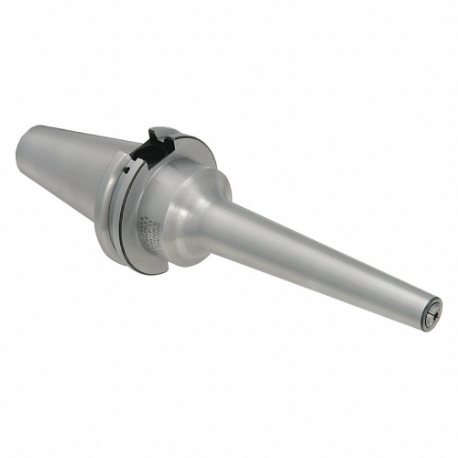

TECHNIKS 23659 Collet Chuck, Cv40 Taper Size, 8 Inch Projection
Item: CU4ZGJModel: 23659Cross Ref: 40MH31
7 In Stock
Ships within 2 days via
10.00% off
€624.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Balance Rating | G2.5 |
| Balanceable | Yes |
| Compatible Collet Wrench | T20SOTK1A81F |
| Contact Type | Single Contact |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through Spindle |
| Coolant Through | Yes |
| Features | Yes |
| For Collet Series | SLIMFIT 6 Series |
| For Max Collet Size | 1/4" |
| For Min Collet Size | 0.094" |
| For Use With | 200 mm Torx Wrench |
| Max Speed | 25000 RPM |
| Max. Collet Capacity | 1/4" |
| Min. Collet Capacity | 0.094" |
| Nose Dia. | 0.55" |
| Outside Diameter - Maximum | 1.75" |
| Pre-balanced | Yes |
| Product Type | Cat Collet Chuck |
| Projection | 8" |
| Runout | Yes |
| Spindle | Yes |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT40 |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Projection | Taper Size | Nut Dia. | Material | Max. Collet Capacity | Nose Dia. | Min. Collet Capacity | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 04788 | 38 mm | - | 1.97" | High Speed Steel | 0.787" | - | 0.039" | 1 1/2" | €312.87 | |
| 22225 | 2 19/25" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €256.55 | |
| 22227 | 4" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €261.95 | |
| 22235 | 2 19/25" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €238.90 | |
| 22237 | 4" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €260.46 | |
| 22239 | 6" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €278.08 | |
| 22247 | 6" | Cat40 | 1.65" | High Speed Steel | 3/4" | 1.65" | 0.039" | - | €277.90 |
