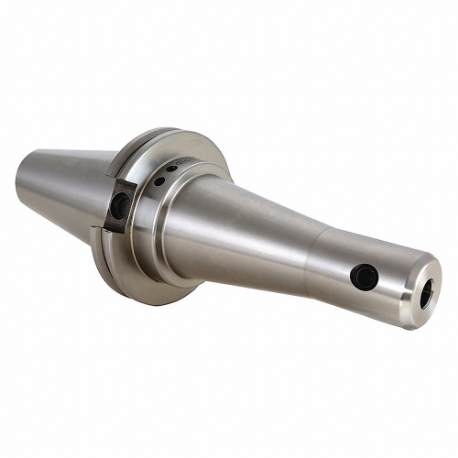

TECHNIKS 22939-8F End Mill Holder And Adapter, Cat50 Taper Size, 8.0000 Inch Projection
Item: CU6CKJModel: 22939-8FCross Ref: 60AM32
7 In Stock
Ships within 2 days via
5.00% off
€356.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Adapter |
| Balance Rating | G6.3 |
| Bore Dia. | 0.625" |
| Bore Tolerance | H5 |
| Contact Type | Dual Contact |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through Flange, Coolant Through Spindle |
| Features | Coolant-Thru Spindle Or Thru Flange (Din B), High Precision Bore (H5) Is Best In Industry |
| For Shank Type | Straight |
| Head Dia. | 1 1/2" |
| Max. Speed | 15000 RPM |
| No. Of Coolant Holes | 2 |
| No. Of Coolant Ports | 2 |
| Nose Dia. | 1 1/2" |
| Nose Style | Standard |
| Product Type | End Mill Holder |
| Projection | 8" |
| Shank Type | Straight |
| System Of Measurement | Imperial |
| T.i.r. Tolerance | 0.0002" |
| Taper Size | CAT50 |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Projection | Taper Size | Bore Dia. | Product Type | Head Dia. | Contact Type | Nose Dia. | Measurement System | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
17140-7/16 | 2 1/2" | BT40 | 7/16" | End Mill Holder | 1 3/4" | Single Contact | 1.1" | Fractional Inch | €180.62 | |
 |
22911-6 | 6" | Cat40 | 1/4" | End Mill Holder | 0.78" | Single Contact | 0.78" | Fractional Inch | €182.45 | |
 |
22913-2.5 | 2 1/2" | Cat40 | 5/16" | End Mill Holder | 0.88" | Single Contact | 7/8" | Fractional Inch | €166.71 | |
|
22915-5 | 5" | Cat40 | 3/8" | End Mill Holder | 1" | Single Contact | 1" | Fractional Inch | €279.59 | |
|
22916-2.5 | 2 1/2" | - | 7/16" | - | - | - | 1.13" | Fractional Inch | €151.80 | |
|
22917-2.63 | 2.63" | Cat40 | 1/2" | End Mill Holder | 1 1/4" | Single Contact | 1 1/4" | Fractional Inch | €151.97 | |
 |
22917-4.72-RR | 4 18/25" | Cat40 | 1/2" | End Mill Holder | 1 1/4" | Single Contact | 1.38" | Fractional Inch | €251.36 |
