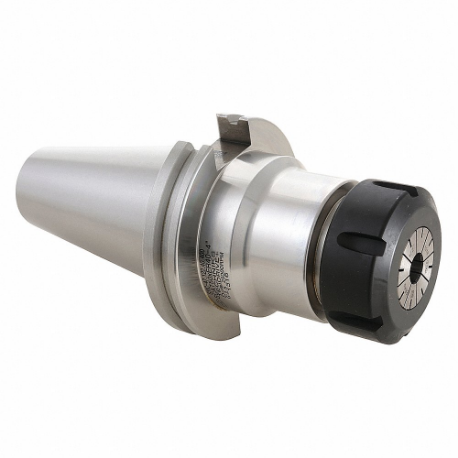

TECHNIKS 22325F Collet Chuck, Straight Shank, Cat50 Taper Size, 6 Inch Projection
Item: CU4ZJYModel: 22325FCross Ref: 60AL71
7 In Stock
Ships within 2 days via
10.00% off
€503.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Application | Coolant Thru, Drilling, High-Speed, Milling |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model No. | 16091 |
| Compatible Collet Wrench | 04617 |
| Compatible Nut Model No. | 41940 |
| Contact Type | Single Contact |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through Flange, Coolant Through Spindle |
| Features | 000 RPM At G2.5, Balanced To 25, Powercoat Nut Included For 75% More Clamping Power, T.I.R. 0.0001 Measured From Taper To Collet Pocket |
| For Collet Series | Er40 |
| For Max Collet Size | 1.023" |
| For Shank Type | Straight |
| For Use With | CNC Machining |
| Included Nut Type | Slotted |
| Max Speed | 25000 RPM |
| Max. Collet Capacity | 1.023" |
| Nut | Nut Included |
| Nut Dia. | 2.45" |
| Product Type | Cat Collet Chuck |
| Projection | 6" |
| Shank Dia. | 1.023" |
| Shank Type | Straight |
| T.i.r. Tolerance | 0.0001" |
| Taper Size | CAT50 |
Shipping Info:
| Ship weight (kg) | 4.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Projection | Taper Size | Nut Dia. | Material | Max. Collet Capacity | Nose Dia. | Min. Collet Capacity | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 04788 | 38 mm | - | 1.97" | High Speed Steel | 0.787" | - | 0.039" | 1 1/2" | €312.87 | |
| 22225 | 2 19/25" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €256.55 | |
| 22227 | 4" | Cat40 | 1.06" | High Speed Steel | 0.406" | 1 2/25" | 0.02" | - | €261.95 | |
| 22235 | 2 19/25" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €238.90 | |
| 22237 | 4" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €260.46 | |
| 22239 | 6" | Cat40 | 1.34" | High Speed Steel | 0.512" | 1.34" | 0.02" | - | €278.08 | |
| 22247 | 6" | Cat40 | 1.65" | High Speed Steel | 3/4" | 1.65" | 0.039" | - | €277.90 |
