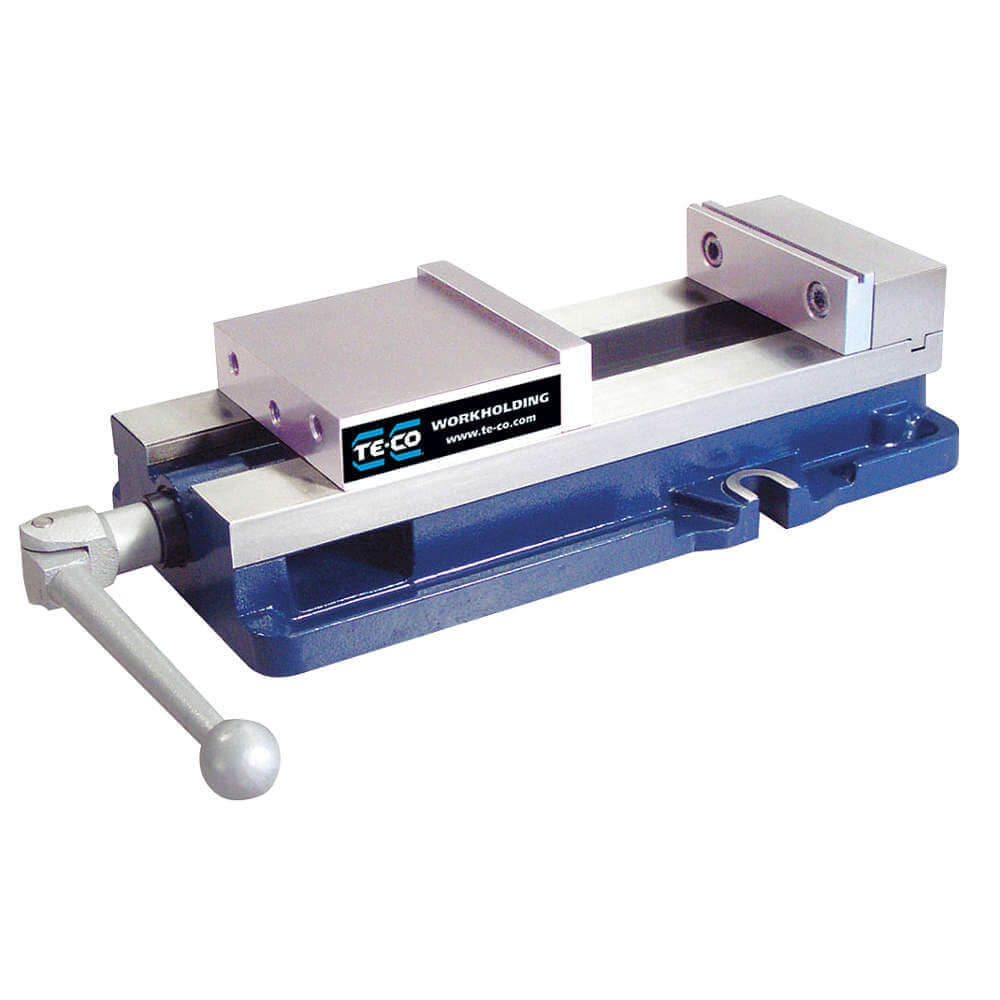

TE-CO PWS-6900 Milling Vise 6 Inch Single Station
Get it by Wednesday, Dec 24
10.00% off
€885.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Milling Vise |
| Base | Fixed |
| Base Material | Ductile Iron |
| Base Type | Fixed |
| Bed/base | 2.875 |
| Clamping Force | 8200 lbs. |
| Compatible Machinery | Milling Machine |
| Features | Bed Heights Matched To 2-7/8 In +/-0.0005 In, Hardened Vise Bed And Jaw Plates, Outside Rail Edges Of The Body Are Machined, Sealed Bearing System Reduces Clamping Pressure And Increases Bearing Life |
| Jaw Face Type | Smooth |
| Jaw Face Width | 6" |
| Jaw Material | Ductile Iron |
| Jaw Opening | 9" |
| Jaw Plate | SQUARE TO 0.001 |
| Jaw Width | 5.94" |
| Lead Screw Type | UNC |
| Machine Vise Type | Single Station |
| Max Clamping Force | 8200 lbf. |
| Max Jaw Opening | 9" |
| Mounting Slot Length | 2" |
| Mounting Slot/keyway Width | 11/16" |
| Mounting Type | Keyway |
| Overall Height | 4 5/8" |
| Overall Length | 19.376" |
| Overall Width | 8.77" |
| Throat Depth | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 53.34 |
| Ship width (cm) | 26.67 |
| HS code | 8466208020 |
| Country of Origin | TN |
Product Details:
- Max. Travel (9.00)
Product Variants
| Product | Model | Jaw Width | Jaw Opening | Throat Depth | Overall Height | Clamping Force | Bed/base | Overall Length | Base | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

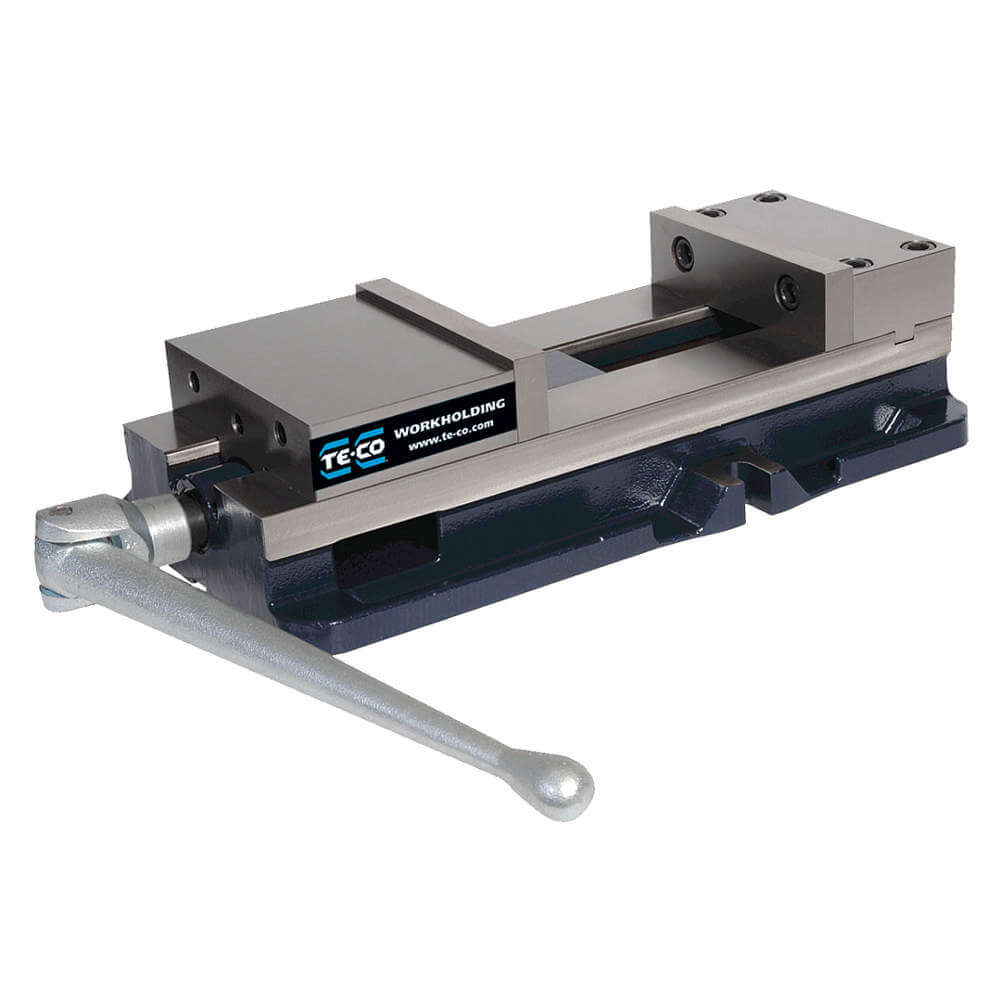

PWS-8110 | 8" | 11" | 2 13/64" | 5.51" | 12000 lbs. | 3.31 | 19.376" | Fixed | €2,415.37 |
