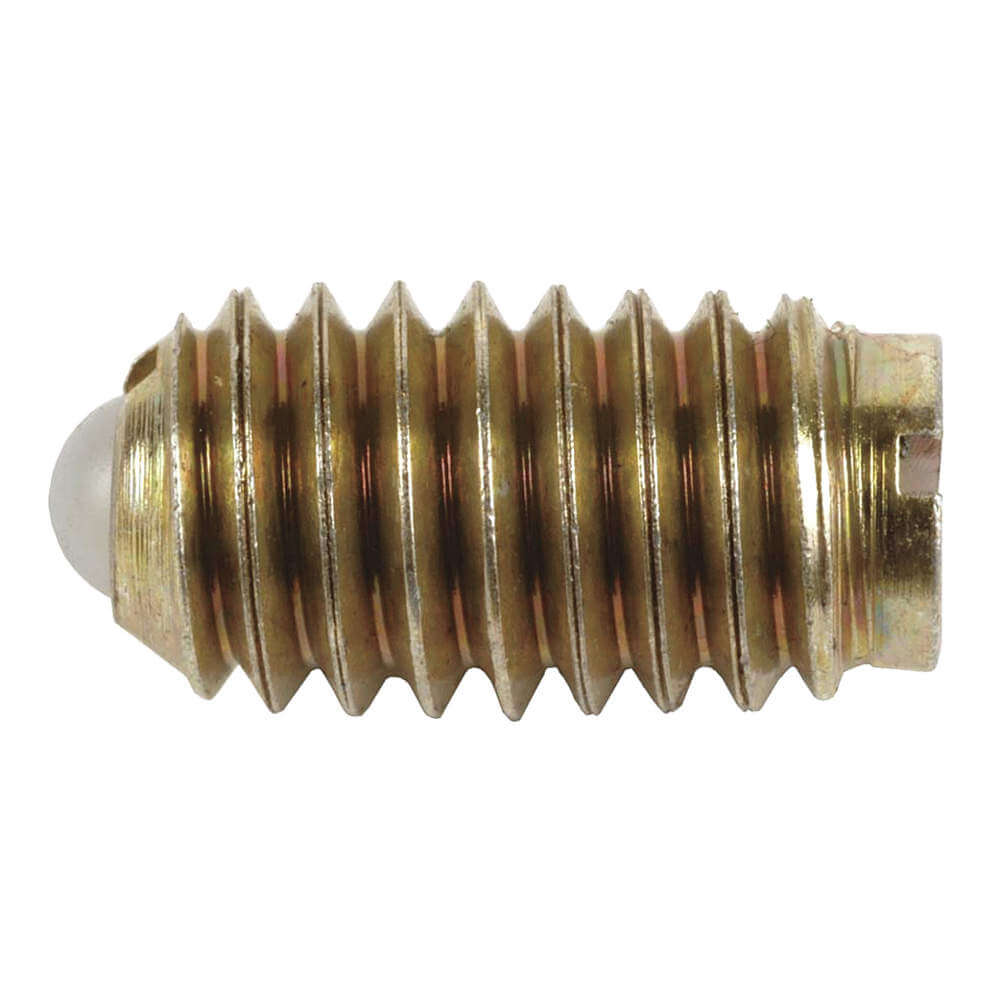

TE-CO 5385101 Plunger Ball Heavy Stainless Steel 5/8 63/64
Item: AA8KZWModel: 5385101Cross Ref: 19A731
7 In Stock
Ships within 2 days via
10.00% off
€94.30 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Plunger |
| Application | Controlled End Force |
| Ball Diameter | 0.375" |
| Ball Finish | Uncoated |
| Ball Material | Nylon |
| Ball Projection | 0.096" |
| Ball Size | 0.375 In. |
| Ball Size | 3/8" |
| Body Dia. | 5/8" |
| Body Finish | Uncoated |
| Body Length | 0.984" |
| Body Material | Stainless Steel |
| Body Width | 5/8" |
| Final Nose Force | 50 lbf. |
| Force | Heavy |
| Function | Controlled End Forces |
| Grade | Grade 303 |
| Handle Type | Slotted Drive |
| Initial Nose Force | 7 lbf. |
| Material | Stainless Steel |
| Measurement System | Inch |
| Mounting Type | Slotted Drive |
| Nose Shape | Ball |
| Overall Length | 63/64" |
| Plunger Dia. | 3/8" |
| Projection | 0.096" |
| Retractable | No |
| Standards | Tcmai |
| Thread | Fully Threaded |
| Thread Length | 63/64" |
| Thread Size | 5/8"-11 |
| Thread-locking Element | With Thread-Locking Element |
| Thread-locking Element Included | Yes |
| Type | With Locking Element |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Variants
| Model | Body Length | Plunger Dia. | Material | Type | Body Material | Projection | Mounting Type | Final Nose Force | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5376201 | 0.252" | 0.094" | Steel | Press Fit | Steel | 0.035" | Press Fit | 1.3 lbf. | 5 | €35.41 | |
| 5376301 | 0.252" | 0.094" | Steel | Press Fit | Steel | 0.035" | Press Fit | 2.5 lbf. | 5 | €33.33 | |
| 5376401 | 0.41" | 0.156" | Steel | Press Fit | Steel | 0.058" | Press Fit | 2.5 lbf. | 5 | €32.90 | |
| 5376501 | 0.41" | 0.156" | Steel | Press Fit | Steel | 0.058" | Press Fit | 5 lbf. | 5 | €26.50 | |
| 5376601 | 12/25" | 0.188" | - | Press Fit | Steel | 0.07" | Press Fit | 3.5 lbf. | 5 | €30.07 | |
| 5376701 | 12/25" | 0.188" | Steel | Press Fit | Steel | 0.07" | Press Fit | 7 lbf. | 5 | €37.61 | |
| 5376801 | 0.643" | 1/4" | Steel | Press Fit | Steel | 0.09" | Press Fit | 5 lbf. | 5 | €35.90 |
