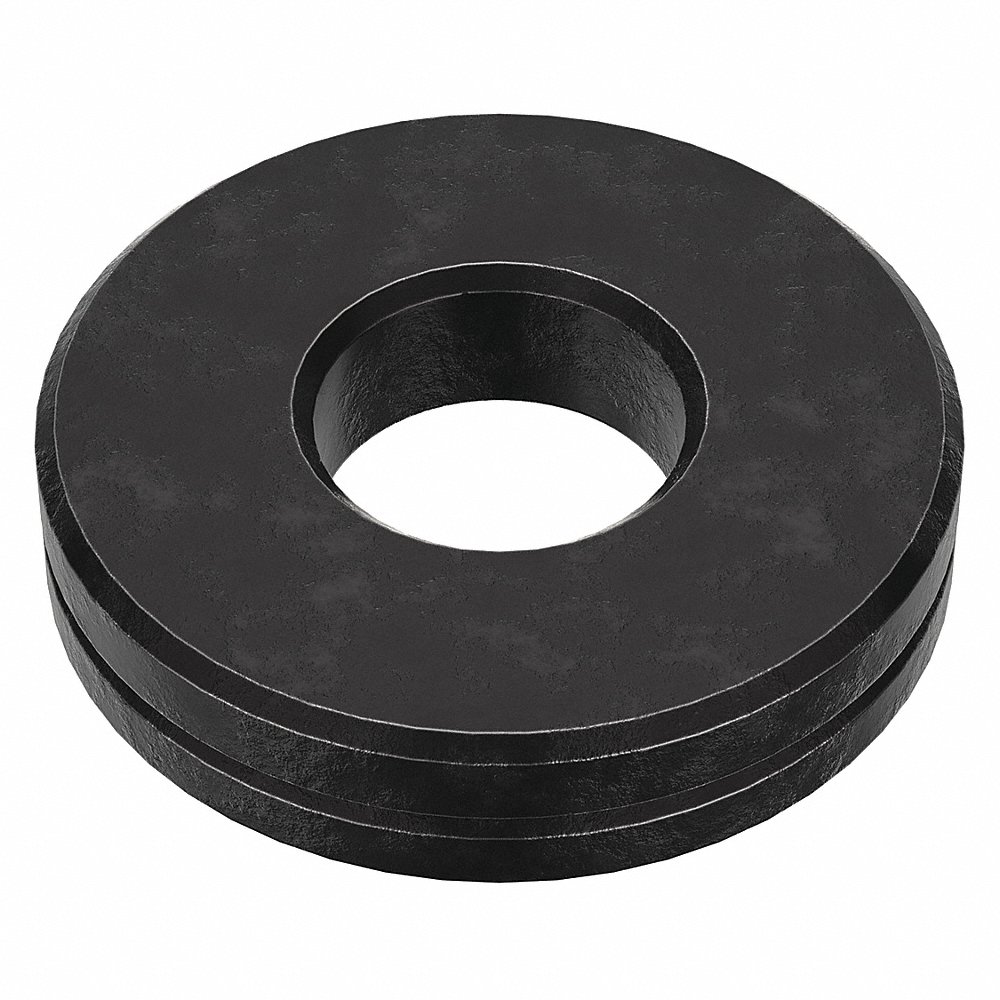

TE-CO 42704 Spherical Washer Assembly, 5/8 In Fits Bolt Size, Blk Oxide
Item: AC4BVQModel: 42704Cross Ref: 2YHK8
7 In Stock
Ships within 2 days via
10.00% off
€6.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spherical Washer Assembly |
| Bottom Washer Inside Diameter | 0.656" |
| Bottom Washer Outside Diameter | 1.375" |
| Bottom Washer Radius | 1 3/4" |
| Color | Black |
| Dimensional Standards | Tcmai |
| Finish | Black Oxide |
| Fits Bolt Sizes | 5/8" |
| For Screw Size | 5/8" |
| Hardness | Rockwell 85-90 on 15N Scale |
| Inside Dia. | 21/32" |
| Material | Steel |
| Maximum Rotation | 2° |
| Maximum Thickness | 0.313" |
| Minimum Thickness | 0.313" |
| Outside Dia. | 1 3/8" |
| Radius | 1 3/4" |
| Rockwell Hardness | 85-90 ON 15N Scale |
| Spherical Washer Type | Spherical Washer Assembly |
| System Of Measurement | Imperial |
| Temp. Range | 400°F |
| Thickness | 5/16" |
| Thickness Tolerance | -0.016" to +0.016" |
| Top Washer Inside Diameter | 0.688" |
| Top Washer Outside Diameter | 1 3/8" |
| Top Washer Radius | 1.75" |
| Washer Type | Spherical Washer Assembly |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.25 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.56 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Radius | Thickness Tolerance | Hardness | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
42702 | 3/8", 5/16" | 13/32" | 7/8" | 1/4" | 1 1/4" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €3.89 | |
 |
42703 | 1/2" | 17/32" | 1 1/8" | 5/16" | 1 1/2" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €6.01 | |
 |
42705 | 3/4" | 0.781" | 1 5/8" | 3/8" | 2 1/4" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €9.89 | |
 |
42706 | 7/8" | 0.933" | 1 3/4" | 3/8" | 2 1/2" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €13.23 | |
 |
42707 | 1" | 1.063" | 2" | 1/2" | 2 3/4" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €14.13 | |
 |
42708 | 1 1/8" | 1 3/16" | 2 1/4" | 1/2" | 3" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €27.36 | |
 |
42710 | 1 1/2" | 1.563" | 2 7/8" | 1/2" | 3" | -0.016" to +0.016" | Rockwell 85-90 on 15N Scale | Black | €47.49 |
