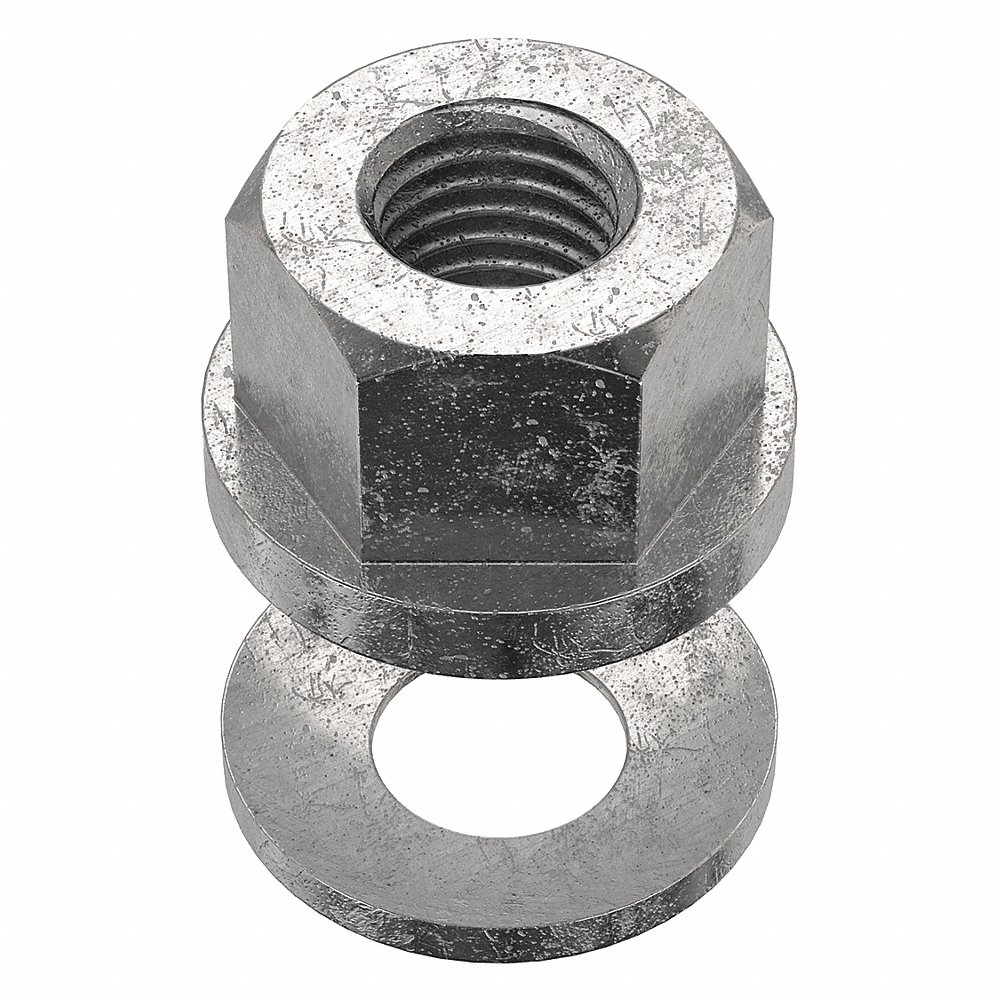

TE-CO 41926 Spherical Flange Nut, 3/4 In - 10 Thread Size, SS, 1.269 In Nut Ht., Plain
Item: AC4BURModel: 41926Cross Ref: 2YHH1
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spherical Flange Nut |
| Compatible Washer Manufacturer Part Number | 47745 |
| Finish | Black Oxide |
| Flange Dia. | 1 5/8" |
| Grade | Grade 2 |
| Hardness | Rockwell 27 |
| Hex Height | 3/4" |
| Hex Type | Spherical Flange Nut And Washer Assembly |
| Hex Width | 1 1/4" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Rotation | 2° |
| Nut Height | 1.269" |
| Nut Type | Spherical Assembly |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Size | 3/4"-10 |
| Thread Type | Coarse |
| Washer Inside Diameter | 13/16" |
| Washer Outside Diameter | 1 5/8" |
| Washer Thickness | 1/4" |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 8.64 |
| HS code | 7318160085 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Flange Dia. | Hardness | Hex Type | Material | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41921 | 1/4"-20 | 1/2" | 7/32" | 1 5/8" | Rockwell 27 | Spherical Flange Nut And Washer Assembly | Stainless Steel | Grade 2 | €31.77 | |
 |
41922 | 5/16"-18 | 9/16" | 9/32" | 1 3/4" | Rockwell 27 | Spherical Flange Nut And Washer Assembly | Stainless Steel | Grade 2 | €34.62 | |
 |
41923 | 3/8"-16 | 11/16" | 3/8" | 7/8" | Rockwell 27 | Spherical Flange Nut And Washer Assembly | Stainless Steel | Grade 2 | €39.79 | |
 |
41924 | 1/2"-13 | 7/8" | 17/32" | 1 1/4" | Rockwell 27 | Spherical Flange Nut And Washer Assembly | Stainless Steel | Grade 2 | €46.14 | |
 |
41925 | 5/8"-11 | 1 1/16" | 5/8" | 1 3/4" | Rockwell 27 | Spherical Flange Nut And Washer Assembly | Stainless Steel | Grade 2 | €50.95 |
