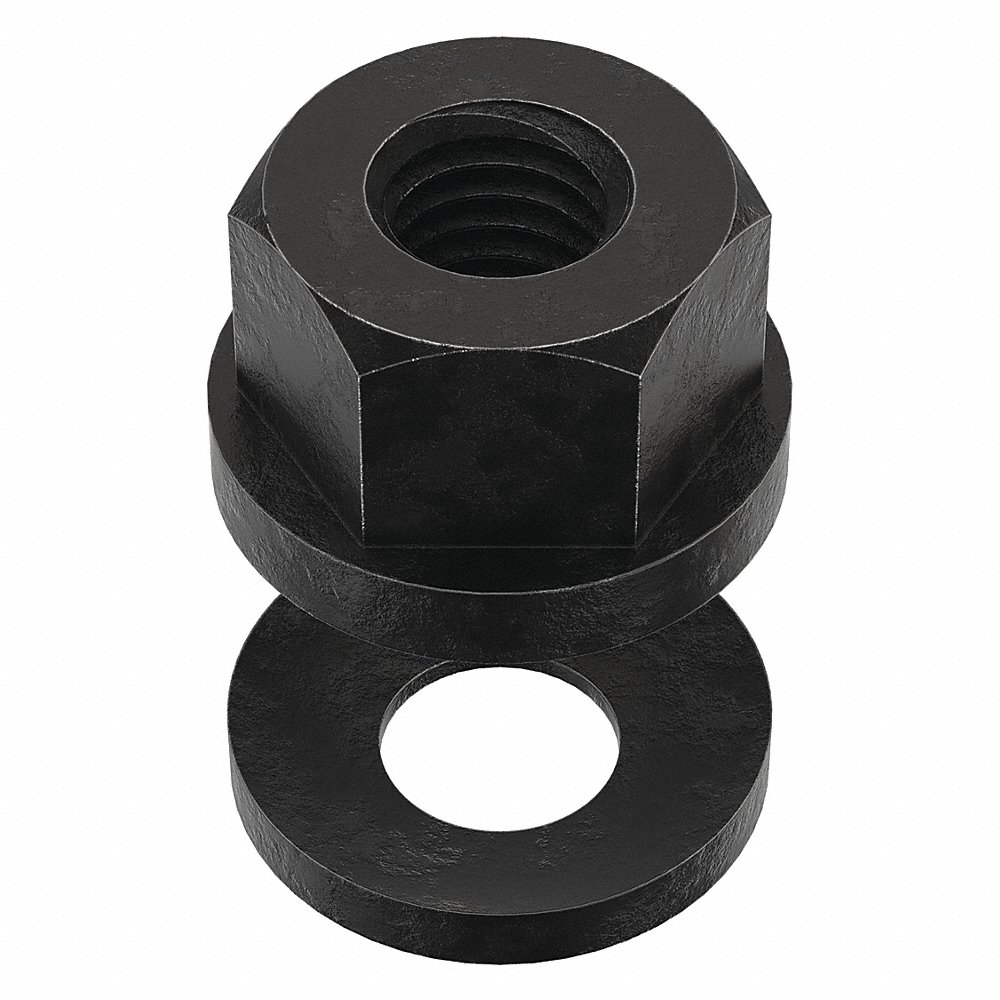

TE-CO 41905 Spherical Flange Nut, 1/2 In - 13 Thread Size, Steel, 0.879 In Nut Ht., 1 1/4 In Flange Dia.
Item: AC4BUGModel: 41905Cross Ref: 2YHG1
7 In Stock
Ships within 2 days via
10.00% off
€10.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spherical Flange Nut |
| Color | Black |
| Compatible Washer Manufacturer Part Number | 42745 |
| Finish | Black Oxide |
| Flange Dia. | 1 1/4" |
| Grade | Grade 2 |
| Hardness | Rockwell 85-90 |
| Hex Height | 1/2" |
| Hex Type | Spherical Flange Nut And Washer Assembly |
| Hex Width | 7/8" |
| Material | Steel |
| Material Grade/class | Ungraded |
| Maximum Rotation | 2° |
| Nut Height | 0.879" |
| Nut Type | Spherical Assembly |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Size | 1/2"-13 |
| Thread Type | Coarse |
| Washer Inside Diameter | 13/16" |
| Washer Outside Diameter | 1 5/8" |
| Washer Thickness | 17/64" |
| Width | 7/8" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 3.81 |
| HS code | 7318160085 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Flange Dia. | Hardness | Hex Type | Material | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41903 | 3/8"-16 | 11/16" | 7/32" | 7/8" | Rockwell 85-90 | Spherical Flange Nut And Washer Assembly | Steel | Grade 2 | €9.87 | |
 |
41906 | 5/8"-11 | 1 39/64" | 5/8" | 1 3/4" | Rockwell 85-90 | Spherical Flange Nut And Washer Assembly | Steel | Grade 2 | €14.64 | |
 |
41907 | 3/4"-10 | 1 1/4" | 3/4" | 1 5/8" | Rockwell 85-90 | Spherical Flange Nut And Washer Assembly | Steel | Grade 2 | €21.29 | |
 |
41909 | 1"-8 | 1 5/8" | 1" | 2" | Rockwell 85-90 | Spherical Flange Nut And Washer Assembly | Steel | Grade 2 | €28.27 |
