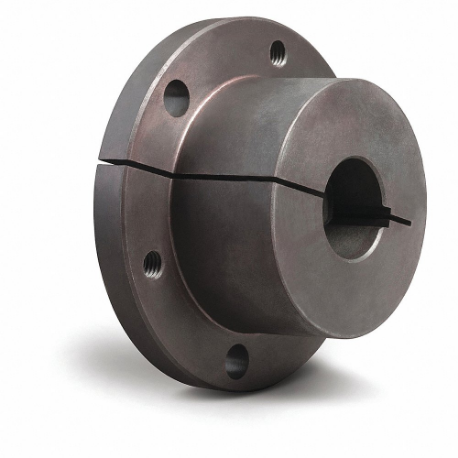

TB WOODS SK1316 Quick Detachable Bushing, Sk, 1 3/16 Inch Bore Dia, 1.875 Inch Length
Item: CU4ZBEModel: SK1316Cross Ref: 10Y309
7 In Stock
Ships within 2 days via
10.00% off
€75.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 4.312" |
| Bolt Circle Diameter | 3.31" |
| Bolt Size | 5/16"-18 x 2" |
| Bolt Thread Length | 2" |
| Bore Bushing Series | SK |
| Bore Dia. | 1.188" |
| Bore Diameter | 1 3/16" |
| Bore System Of Measurement | Inch |
| Bushing Type | Quick Detachable |
| Flange Thickness | 1/2" |
| Flange Type | Split |
| For Shaft Type | Keyed |
| Includes | Cap Screws |
| Keyway Depth | 1/8" |
| Keyway Width | 1/4" |
| Large Barrel Diameter | 2.813" |
| Length | 1 7/8" |
| Length Less Flange | 1 3/8" |
| Material | Steel |
| Maximum Torque | 7000 lbs.-in. |
| Overall Diameter | 3.875" |
| Overall Length | 1.875" |
| Sae Grade | Grade 5 |
| Taper | 3/4 in Per ft |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Bore Dia. | Bolt Circle Dia. | Overall Length | Flange Thickness | Taper | Flange Type | Bolt Thread Length | Price | |
|---|---|---|---|---|---|---|---|---|---|
| M334A | - | - | - | - | - | - | - | €34.05 | RFQ
|
| WE5H7814KS | - | - | - | - | - | - | - | €249.97 | |
| WE40H138 | - | - | - | - | - | - | - | €609.89 | |
| WE4H7814KS | - | - | - | - | - | - | - | €199.02 | |
| SK1516 | 1.312" | 5.312" | 1.875" | 1/2" | 3/4 in Per ft | Split | 2" | €83.59 |
