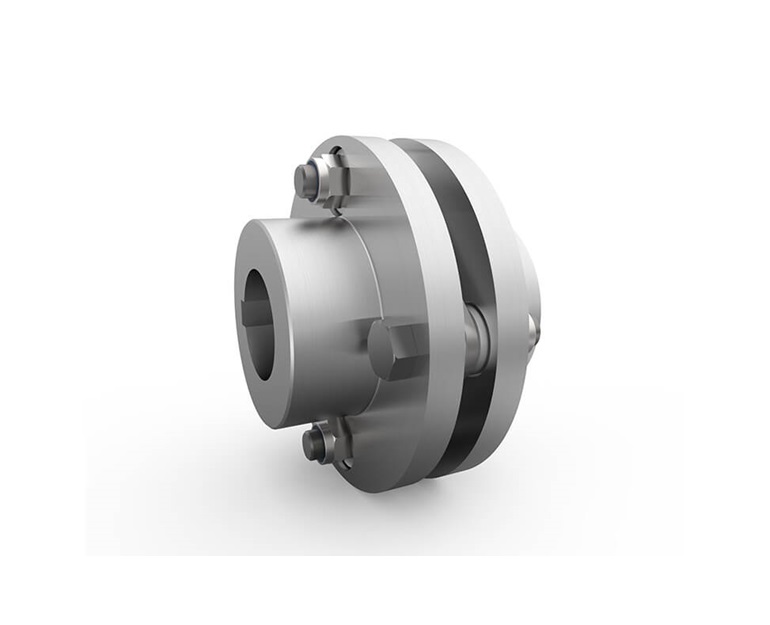

TB WOODS AR5 AR Form Flex Coupling, 5 Size, 300 lbs.in. Torque, 8500 rpm
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 1° |
| Dimension A | 2.65" |
| Dimension B | 2 6/25" |
| Dimension D | 6/25" |
| Dimension H | 1.3" |
| Dimension J | 0.54" |
| Free End Float | 0.015" |
| Hp Rating @ 100 Rpm | 12/25 hp |
| Hp Rating @ 100 Rpm | 0.48 hp |
| Max. Bore | 22/25" |
| Max. Rpm | 8500 RPM |
| Product Type | AR |
| Rated Torque | 300 lbs.in. |
| Size | 5 |
Product Variants
| Model | Max. Bore | Hp Rating @ 100 Rpm | Free End Float | Max. Rpm | Dimension B | Dimension D | Dimension J | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| AR10 | 1 1/4" | 1 27/100 hp | 0.02" | 7500 RPM | 2.27" | 0.27" | 0.59" | 10 | - | RFQ
|
| AR15 | 1 3/4" | 2 1/2 hp | 0.021" | 6700 RPM | 2.58" | 8/25" | 22/25" | 15 | - | RFQ
|
| AR20 | 1.69" | 3 49/100 hp | 0.027" | 6200 RPM | 2.98" | 0.34" | 0.79" | 20 | - | RFQ
|
| AR25 | 2" | 6 3/100 hp | 0.03" | 5500 RPM | 3.69" | 0.45" | 1" | 25 | - | RFQ
|
| AR30 | 2.38" | 11 hp | 0.032" | 5000 RPM | 4.23" | 0.47" | 1.14" | 30 | - | RFQ
|
| AR35 | 3 3/4" | 18 hp | 0.042" | 4400 RPM | 5.05" | 0.55" | 0.97" | 35 | - | RFQ
|
