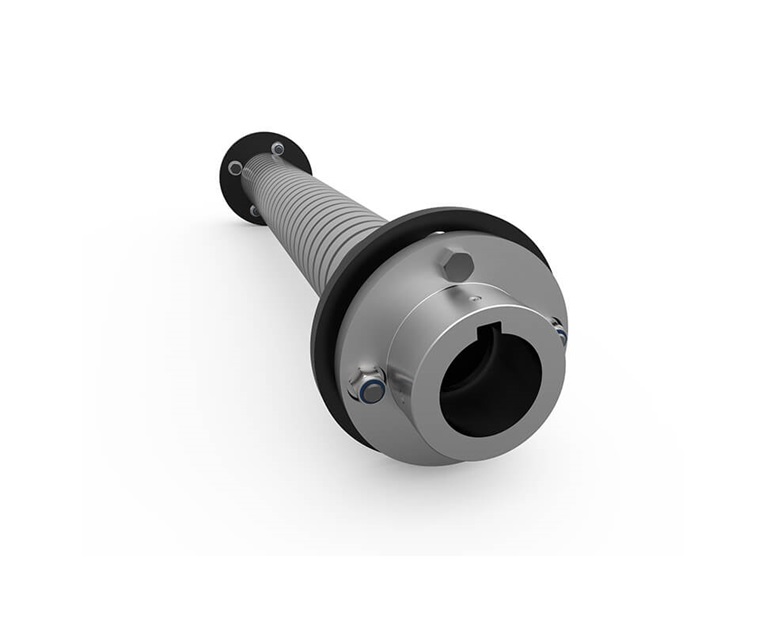

TB WOODS A5C35_4B A5C/B5C Form Flex Coupling, 35 Size, 11340 lbs.-in. Torque
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 1° |
| Dimension A | 6.63" |
| Dimension F | 2 1/4" |
| Dimension G | 0.55" |
| Dimension H | 4.15" |
| Dimension J | 4 1/4" |
| Free End Float | 0.085" |
| Hp Rating @ 100 Rpm | 18 hp |
| Max. Bore | 3 3/4" |
| Max. Dimension @ 1500 Rpm | 147" |
| Max. Dimension @ 1800 Rpm | 140" |
| Product Type | A5C/B5C |
| Rated Torque | 11340 lbs.-in. |
| Size | 35 |
Product Variants
| Model | Hp Rating @ 100 Rpm | Angular Misalignment | Free End Float | Max. Bore | Dimension F | Dimension J | Max. Dimension @ 1500 Rpm | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A5C20_2G | 3 49/100 hp | 1° | 0.055" | 2 1/8" | 1 8/25" | 2.3" | 79" | 20 | - | RFQ
|
| A5C20_2R | 3 49/100 hp | 1° | 0.055" | 2 1/8" | 1 8/25" | 2.3" | 84" | 20 | - | RFQ
|
| A5C25_2G | 6 3/100 hp | 1° | 0.06" | 2 1/2" | 1.62" | 2.3" | 78" | 25 | - | RFQ
|
| A5C25_2R | 6 3/100 hp | 1° | 0.06" | 2 1/2" | 1.62" | 2.3" | 83" | 25 | - | RFQ
|
| A5C30_3B | 11 hp | 1° | 0.065" | 2 7/8" | 1 22/25" | 3 1/4" | 130" | 30 | - | RFQ
|
| A5C30_3R | 11 hp | 1° | 0.065" | 2 7/8" | 1 22/25" | 3 1/4" | 117" | 30 | - | RFQ
|
| A5C35_4R | 18 hp | 1° | 0.085" | 3 3/4" | 2 1/4" | 4 1/4" | 135" | 35 | - | RFQ
|
