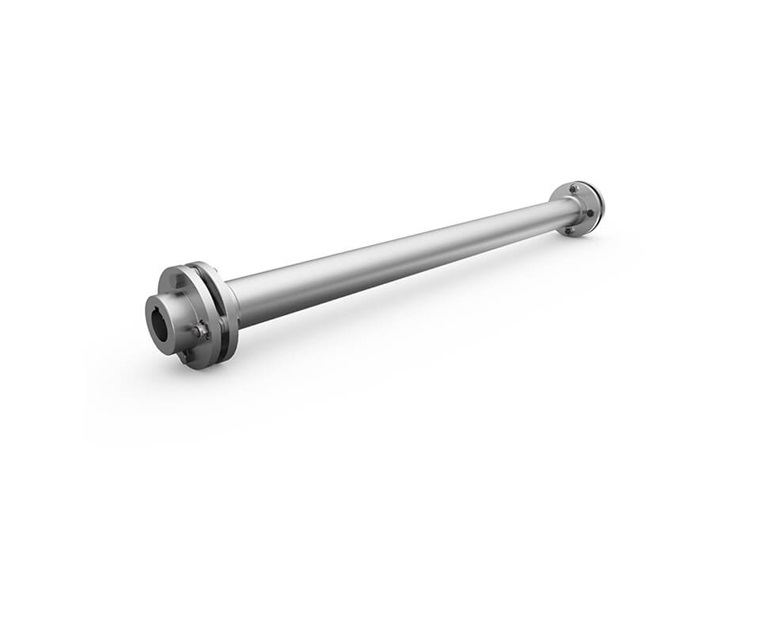

TB WOODS A515 A5 Form Flex Coupling, 15 Size, 1575 lbs.-in. Torque
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Coupling |
| Angular Misalignment | 1° |
| Dimension A | 3.65" |
| Dimension G | 8/25" |
| Dimension H | 2" |
| Hp Rating @ 100 Rpm | 2 1/2 hp |
| Hp Rating @ 100 Rpm | 2.5 hp |
| Inertia At D Min. | 9.36 lbs.-sq. ft. |
| Max. Angular Misalignment | 1° |
| Max. Bore | 1 3/4" |
| Max. Dimension @ 1200 Rpm | 79" |
| Max. Dimension @ 1500 Rpm | 71" |
| Max. Dimension @ 1800 Rpm | 64" |
| Max. Dimension @ 600 Rpm | 111" |
| Max. Dimension @ 750 Rpm | 99" |
| Max. Output Torque | 3150 lb-in |
| Product Type | A5 |
| Rated Torque | 1575 lbs.-in. |
| Size | 15 |
Product Variants
| Model | Hp Rating @ 100 Rpm | Max. Bore | Free End Float | Dimension G | Dimension H | Max. Dimension @ 1500 Rpm | Inertia At D Min. | Max. Dimension @ 1200 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A505 | 12/25 hp | 22/25" | 0.03" | 6/25" | 1.3" | 56" | 1.93 lbs.-sq. ft. | 62" | - | RFQ
|
| A510 | 1 27/100 hp | 1 1/4" | 1/25" | 0.27" | 1 4/5" | 69" | 4.83 lbs.-sq. ft. | 76" | - | RFQ
|
| A520 | 3 49/100 hp | - | 0.055" | 0.34" | 2 2/5" | 81" | 15.36 lbs.-sq. ft. | 90" | - | RFQ
|
| A525 | 6 3/100 hp | 2" | 0.06" | 0.45" | 2 4/5" | 87" | 42.07 lbs.-sq. ft. | 97" | - | RFQ
|
| A530 | 11 hp | 2.38" | 0.065" | 0.47" | 3.3" | 94" | 84.97 lbs.-sq. ft. | 102" | €45.58 | RFQ
|
| A535 | 18 hp | 3 3/4" | 0.085" | 0.55" | 4.15" | 107" | 170.84 lbs.-sq. ft. | 119" | - | RFQ
|
