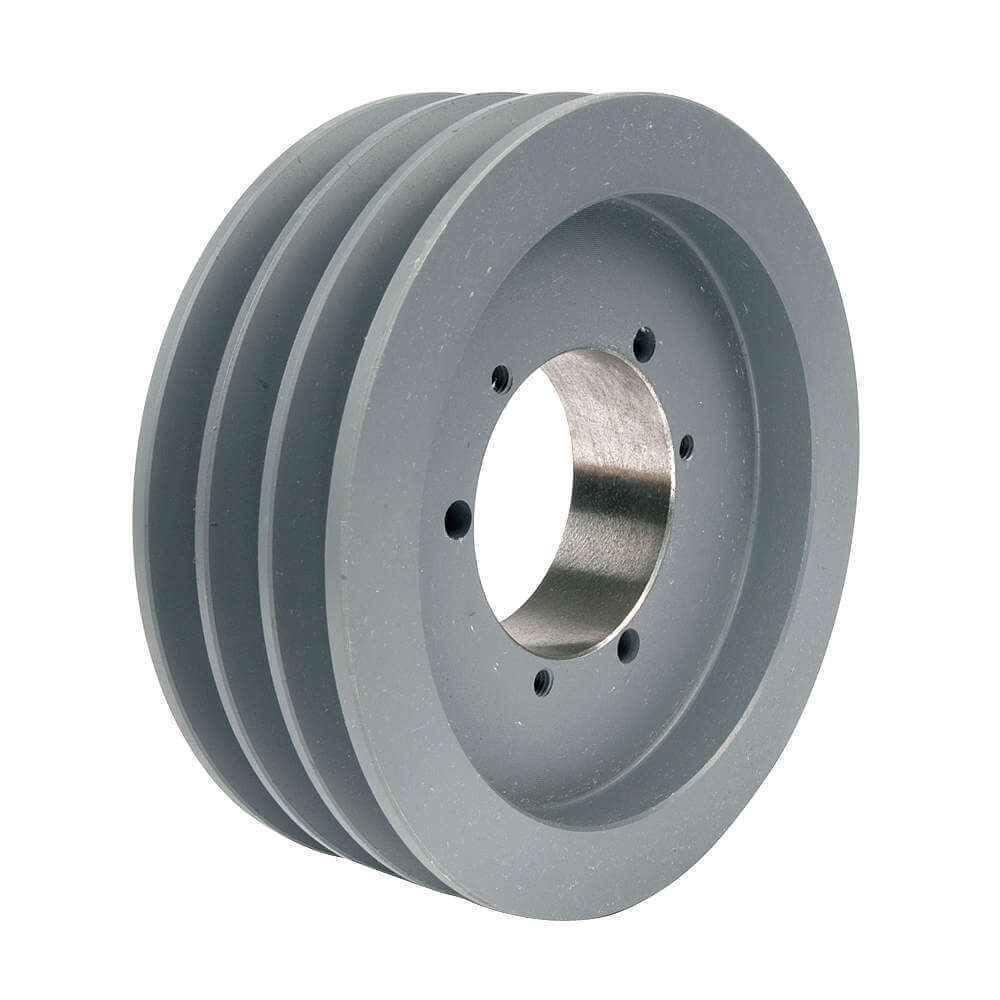

TB WOODS 903B V-belt Pulley Detachable 3 Groove 9.35 Od
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€247.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Pulley |
| 4l Pitch Diameter | 8.6" |
| 4l, A, Or Ax Belt Pitch Dia. | 8.6" |
| 4la Or A Belt Pitch Dia. | 8.6" |
| 5l Pitch Diameter | 9" |
| 5l, B, Or Bx Belt Pitch Dia. | 9" |
| A Pitch Diameter | 8.6" |
| Ax Pitch Diameter | 8.6" |
| B Pitch Diameter | 9" |
| Bore Type | Bushed |
| Bushing Required | SK |
| Bx Pitch Diameter | 9" |
| Construction | Arm |
| Face Width | 2.5" |
| For Belt Section | 4L, 5L, A, Ax, B, Bx |
| For Bushing Size | SK |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Classical, Cogged, Banded |
| Industry Number | 903B |
| Length Through Bore | 1 7/8" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| No. Of Grooves | 3 |
| Outside Dia. | 9.35" |
| Overall Width | 2 1/2" |
| Pitch Dia. | 8.6" (4L, A), 9" (5L, B) |
| Pulley Construction | Spoked |
| Pulley Industry Number | B90 |
| Pulley Series | Series A-B Combination |
| Set Screw Included | No |
| Weight | 16.1 lbs. |
Shipping Info:
| Ship weight (kg) | 7.25 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 28.19 |
| HS code | 8483509040 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Type | Industry Number | 4l, A, Or Ax Belt Pitch Dia. | For Belt Section | Outside Dia. | For Bushing Size | 5l, B, Or Bx Belt Pitch Dia. | Construction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

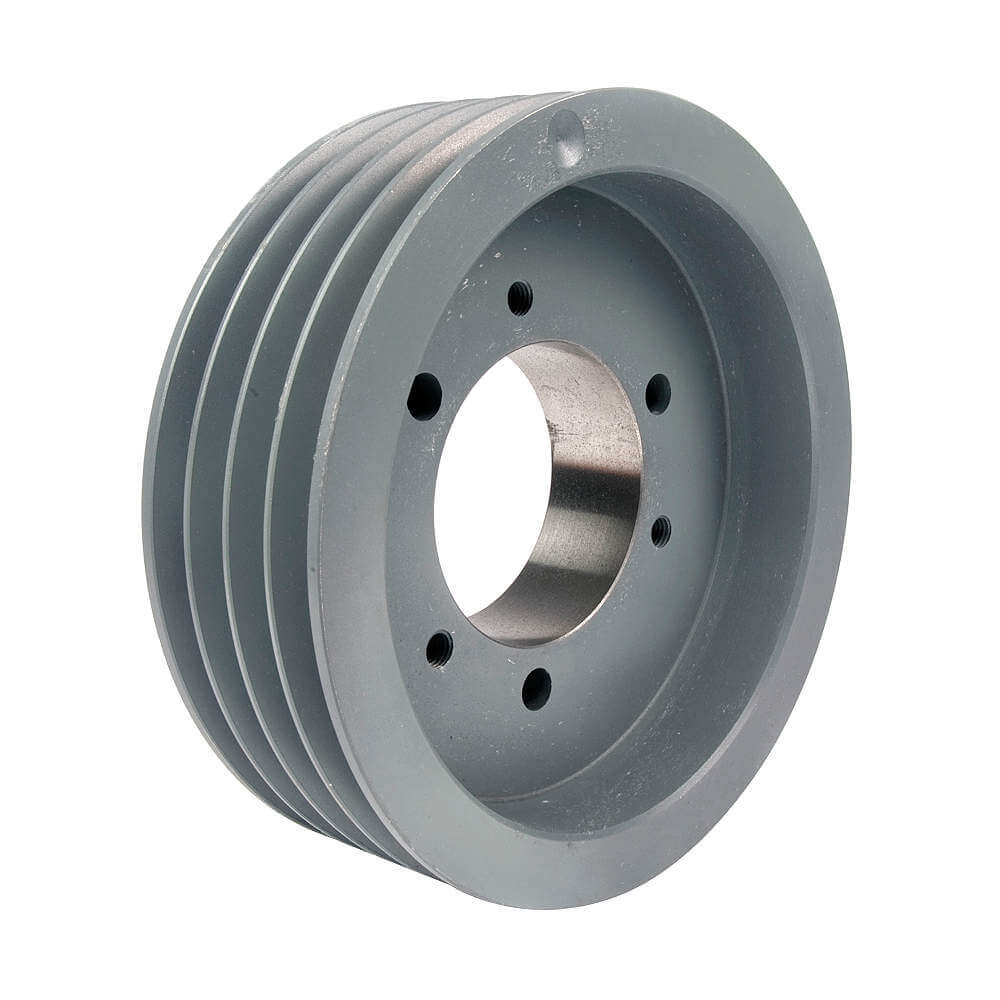

904B | Bushed | 904B | 8.6" | 4L, 5L, A, Ax, B, Bx | 9.35" | SK | 9" | Web | €360.11 | |
 |

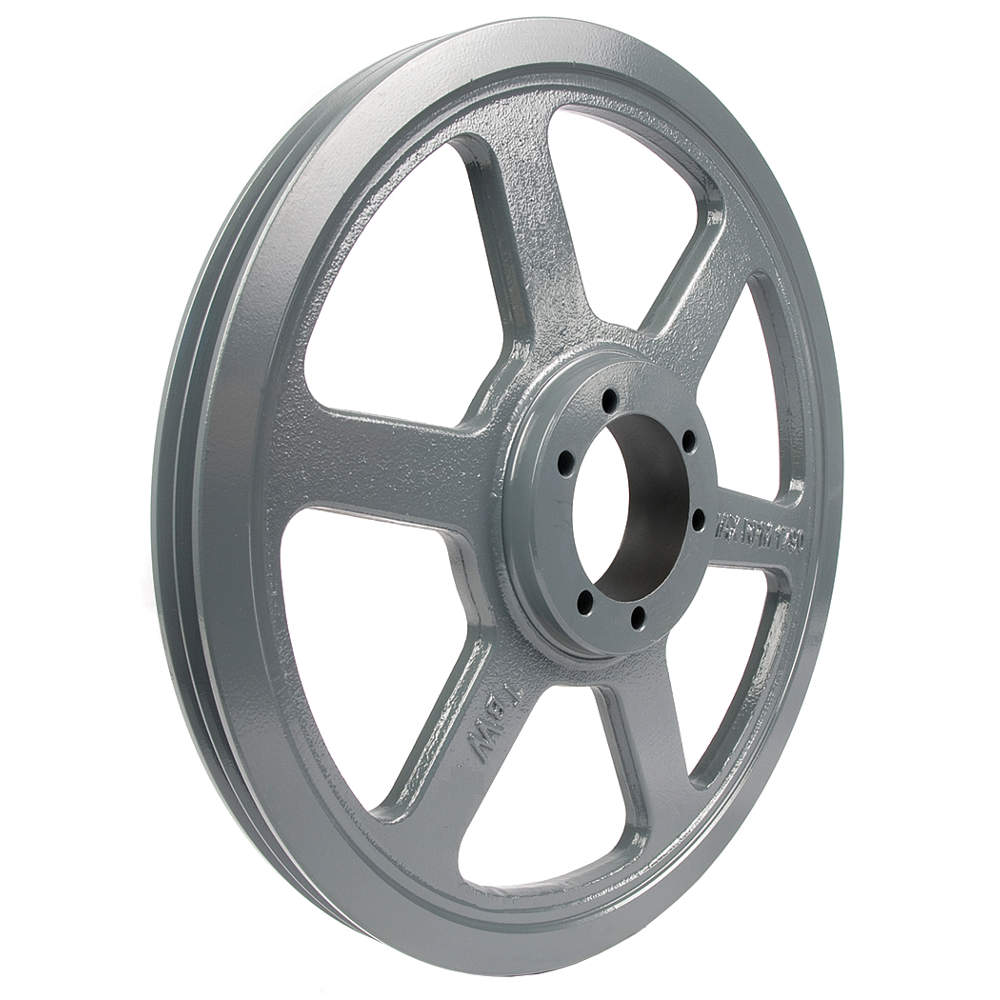

2342B | Bushed | 63017 | 23" | 4L, 5L, A, Ax, B, Bx | - | SF | 23.4" | Arm | €2,055.30 | |
 |
AK104X7/8 | Fixed Bore | AK10478 | 10" | 3L, 4L, A, Ax | - | - | - | Arm | €155.62 | |
|
AK114X7/8 | Fixed Bore | AK11478 | 11" | 3L, 4L, A, Ax | 11 1/4" | - | - | Arm | €205.78 | |
|
AK124X7/8 | Fixed Bore | AK12478 | 12" | - | - | - | - | Arm | €155.42 | |
|
AK144X7/8 | Fixed Bore | AK14478 | 14" | 3L, 4L, A, Ax | 14 1/4" | - | - | Arm | €211.49 | |
|
AK74X7/8 | Fixed Bore | AK7478 | 7" | 3L, 4L, A, Ax | 7 1/4" | - | - | Arm | €90.94 |
